Wide ambient temperature range from -31°F to 110°F. Features include intelligent control, automatic load adjustment in different climates and environments to satisfy the demands of summer cooling, winter heating, and hot water production throughout the year.
Central boiler and heat pump systems specialist
CALL / TEXT US 888-301-0737
*** Given the high demand for certain products, we may be already sold-out by the time our next shipment arrives. We strongly recommend that you secure your order now if you want to be on the actual batch arrival. Availability based on first come - first served. ***

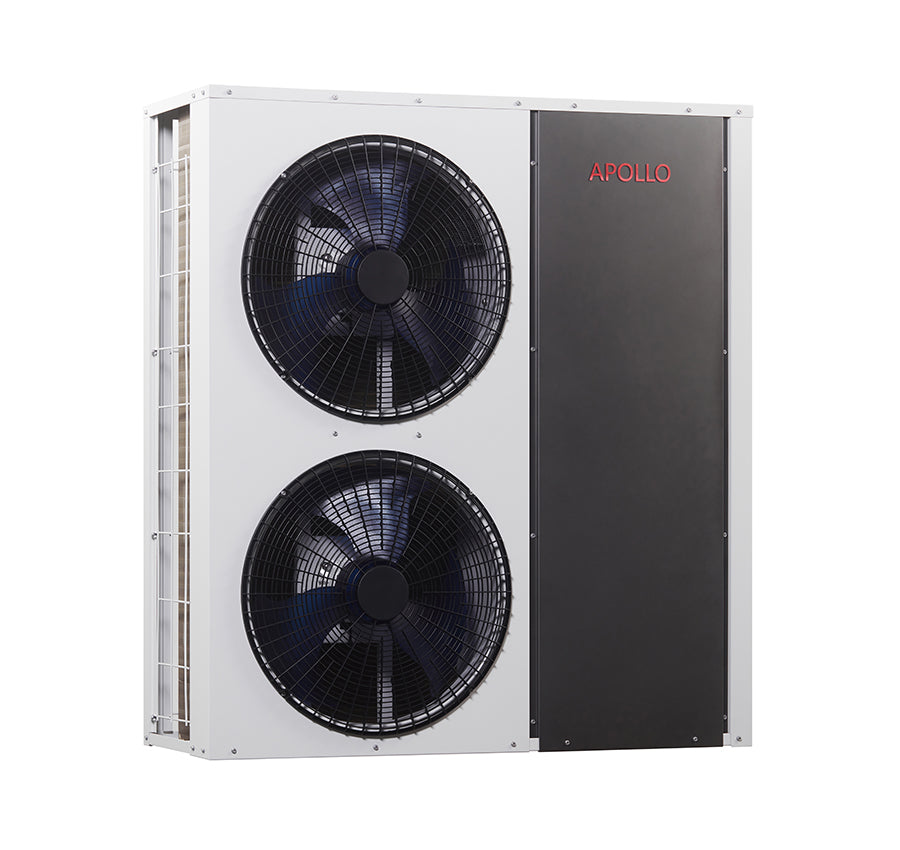

APOLLO Heat Pump - 60k btu / 5 ton - Air to Water - EVI Inverter DC technology
People watching this item right now
Simply the best air to water on the market.
APOLLO is designed in the USA.
Main Feature
- APOLLO heat your house efficiently up to -31°F / -35°C
- Integrate heating and cooling and DHW system
- WiFi controller
- Fan coil, Radiant floor, Radiator, Baseboard, and Pool application
Bring your PEX with a double breaker 50A and the job is done!
- Heat: 4000 ft²
- Capacity: 5 Ton, 72K BTU, 21KW
- Heat Pump - Height 53½", Width 45½", Depth 20", Weight 350 lb
- Intertek Certified for US and Canada
- Inverter Panasonic Scroll Compressor
- Newest Green Refrigerant R-32
- Variable-speed fan motor
- Quiet operation
Warranty: 5 years
Apollo Air-to-WaterMain Features
Operates well in most temperatures
Extreme Cold and Heat
EVI / Full Inverter Technology
Highly Efficient and Noise-Free
The step-less inverter compressor, step-less inverter control system, brush-less fan motor, and DC speed water pump are all components of the APOLLO EVI + DC Inverter heat pump. It not only saves energy but is as quiet as a refrigerator, producing 12dB (A) less noise than a standard On / Off heat pump.
UL Certified
A+++ Energy Labeled
This unit is currently one of the most energy efficient, with the potential to dramatically lower customers' energy costs. Its highest COP is 5.65, with a SCOP is 4.88. Our high-efficiency DC variable frequency heat pump uses over 30% less energy than other air source heat pumps.
Heating / Cooling Time
50% Faster than Regular Heat Pumps
Once the heat pump is turned on, the inverter unit quickly selects the best compressor/fan motor operating frequencies. The heat pump EEV will open automatically based on heating or cooling demands. The inverters' fast heating saves up to 50% more heating time compared to traditional heat pumps.
A must have addonAll-in-one PUMP STATION
Because the heat pump itself is only one component of the hydronic installation, the entire system may rapidly become intricate and costly. The APOLLO Pump Station simplifies the entire process: Connect your heat pump + heat exchangers (fan coils, baseboards, radiators) to the Pump Station and you're ready to go.
Included in the Pump Station:
Included in the Pump Station:
- Water Pump
- Heat pump controller
- 4KW emergency/booster Electric Heater
- Expansion tank
- 3-Way motorized valve
- Sensors
- Wiring box
Specifications
GENERAL INFORMATION
| HEAT PUMP | UNIT | 3.5 TON | 5 TON | 6 TON |
|---|---|---|---|---|
| Power supply | V/Ph/Hz | 220/1/60 | 220/1/60 | 220/1/60 |
| Water Inlet / Outlet | Inch | 1" | 1" | 1" |
| Water Flow/ Volume | Ft³ / h | 49 | 76 | 91 |
| Noise | DB(A) | 50 | 55 | 58 |
| Unit Dimension (W/D/H) | Inch | 41/18/23.5 | 45.5/20/53.5 | 45.5/20/53.5 |
| Weight | Lbs | 270 | 350 | 370 |
TECHNOLOGY
| COMPONENT | 3.5 TON / 5 TON / 6 TON |
|---|---|
| Controller | Full Inverter Control |
| Compressor | Panasonic DC inverter compressor |
| Fan motor | Siemens DC fan motor |
| Refrigerant flow control | Emerson Electric Expansion Vavle |
| Heat exchanger | High efficiency tube in shell |
| Refrigerant | R32/R410a |
Heating condition:
Air DB 68°F / WB 59°F
Water inlet: 59°F, Water outlet: 131°F
| HEAT PUMP | UNIT | 3.5 TON | 5 TON | 6 TON |
|---|---|---|---|---|
| OUTPUT (heat) | Kbtu | 42 | 60 | 72 |
| INPUT (heat) | Kbtu | 9.2 | 13 | 15.7 |
| INPUT CURRENT | Amp | 12.2 | 17.4 | 20.8 |
| COP | W/W | 4.6 | 4.6 | 4.6 |
Heating condition:
Air DB 44°F / WB 42°F
Water inlet: 104°F, Water outlet: 113°F
| HEAT PUMP | UNIT | 3.5 TON | 5 TON | 6 TON |
|---|---|---|---|---|
| OUTPUT (heat) | Kbtu | 35.8 | 47.7 | 56.3 |
| INPUT (heat) | Kbtu | 11 | 14.2 | 17 |
| INPUT CURRENT | Amp | 14.8 | 19 | 22.7 |
| COP | W/W | 3.23 | 3.35 | 3.3 |
Heating condition:
Air DB 10°F / WB 7°F
Water inlet: 97°F, Water outlet: 106°F
| HEAT PUMP | UNIT | 3.5 TON | 5 TON | 6 TON |
|---|---|---|---|---|
| OUTPUT (heat) | Kbtu | 22.2 | 32.4 | 39.2 |
| INPUT (heat) | Kbtu | 10.5 | 15.2 | 18.6 |
| INPUT CURRENT | Amp | 14 | 20.3 | 24.8 |
| COP | W/W | 2.11 | 2.13 | 2.11 |
Cooling condition:
Air DB 95°F / - - -
Water inlet: 54°F, Water outlet: 44°F
| HEAT PUMP | UNIT | 3.5 TON | 5 TON | 6 TON |
|---|---|---|---|---|
| OUTPUT (cool) | Kbtu | 27.3 | 42.7 | 51.2 |
| INPUT (cool) | Kbtu | 10.2 | 17 | 20.4 |
| INPUT CURRENT | Amp | 13.6 | 22.6 | 27.2 |
| INPUT MAX CURRENT | AMP | 20.5 | 34 | 40.7 |
Speak with an MBTEK Heat Pump Owner in your Region
Use our interactive map to contact a Mbtek Apollo heat pump owner in your area and ask about their unit.
Customer Video
Customer Pictures
Download
Frequently Asked Questions
General
Payment and Shipping
Warranty
Where can I find a dealer?
You can speak directly with one of our sales agents via phone, chat, email or text message for more information.
Who will install my heat pump?
Mbtek does not complete the installation. Any HVAC professional will be able to install your purchase. If you require assistance finding one, we are here to help.
Where can I find parts?
At this link. We have spare parts ready to ship the following business day.
When will I receive my unit?
As soon as the unit is in stock, we will book the shipment following business day. The availability (or ETA) of a specific unit is mentioned on the top of each product page. Depending on your location, delivery can take anywhere from 3 to 12 days
Do I have to pay customs fees if my unit is coming from another country?
No. We take responsibility for these charges.
Are your products shipped in the U.S. or Canada?
It varies for each product. However, we have warehouses in Pennsylvania (U.S.), Alberta (CAN), and Quebec (CAN).
What is the product warranty?
The compressor includes a 5-year warranty.
