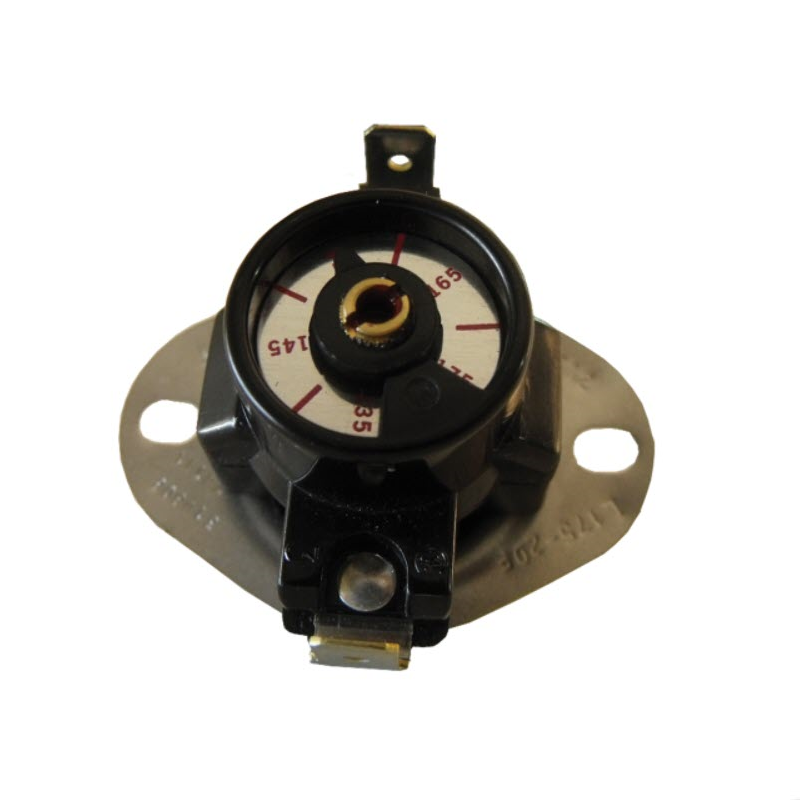

Aquastat starts your boiler or heat pump from 135 to 175°F setpoint with a 20°F differential.
Adjustable aquastat features a versatile 3/4"(19mm) bimetal disc design. The snap action of the temperature-sensing bimetal provides high-speed contact separation for an exceptional life.
- Dial knob
- Series covers almost 95% of heater and dryer applications
- 40° adjustable range
- 1/4" quick connect terminals
- UL® recognized
- CSA approved
- Open on Rising

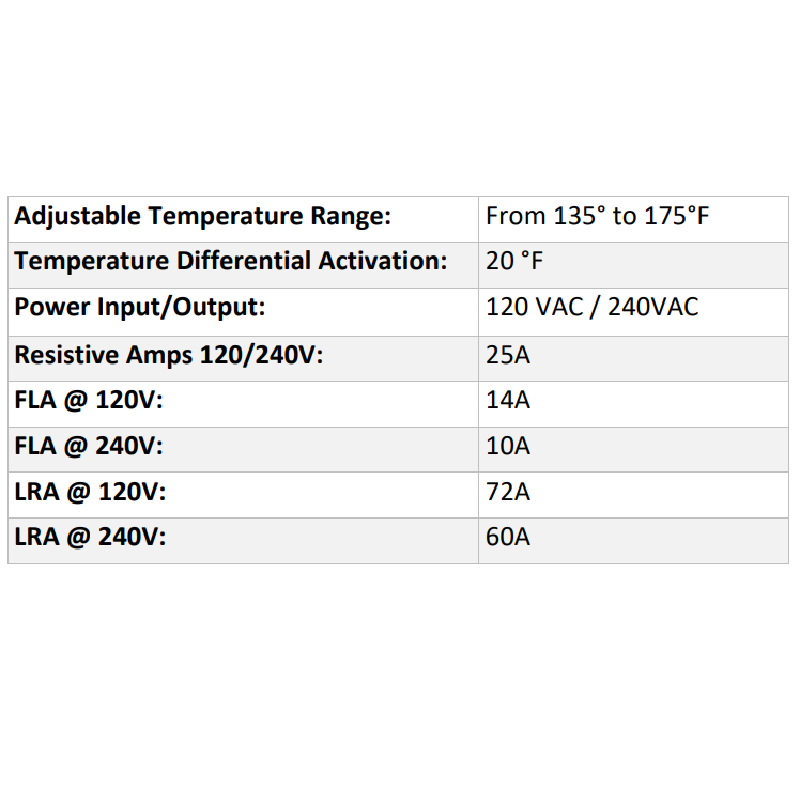

|Adjustable range:||135° to 175°F|
|Resistive Amps 120/240V:||25A|
|FLA @ 120V:||14A|
|FLA @ 240V:||10A|
|LRA @ 120V:||72A|
|LRA @ 240V:||60A|
