Apollo Motorized 2 way valve (Warehouse Deal)

Its a new item with open box the thread is SBPT

MOTORIZED CONTROL VALVE

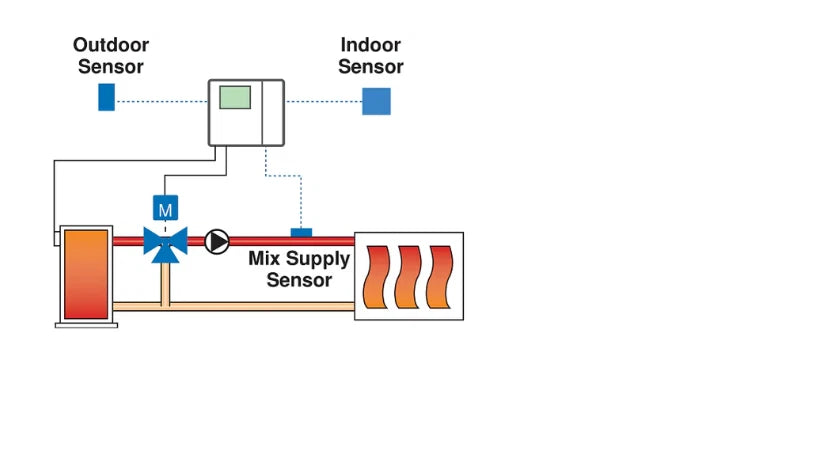

This valve is typically used in air handling units with heating or cooling coils, and in fan coil units with heating or cooling coils. Other common applications include fan coil units (FCUs), VAV box reheat coils, and bypass loops. This valve is suitable for use in a hydronic system with either variable or constant flow.

• Rotation angle: 90°

• Close-off pressure: 200 psi

• Cv: 10

• Fluid: Hot or chilled water, up to 60% glycol

• Configuration: 3-way, 2-way

• Control type: 2-point

• Protection rating: IP54, NEMA 2, UL enclosure type 2

• Electrical connection: 16.5 ft (5 m) cable

• Manual override: External push button

• Power consumption (holding): 0.5 W

• Power consumption (operating): 2 W

• Operating time (motor): 90 s

• Voltage: 12–24 VAC/DC or 120–240 VAC models
