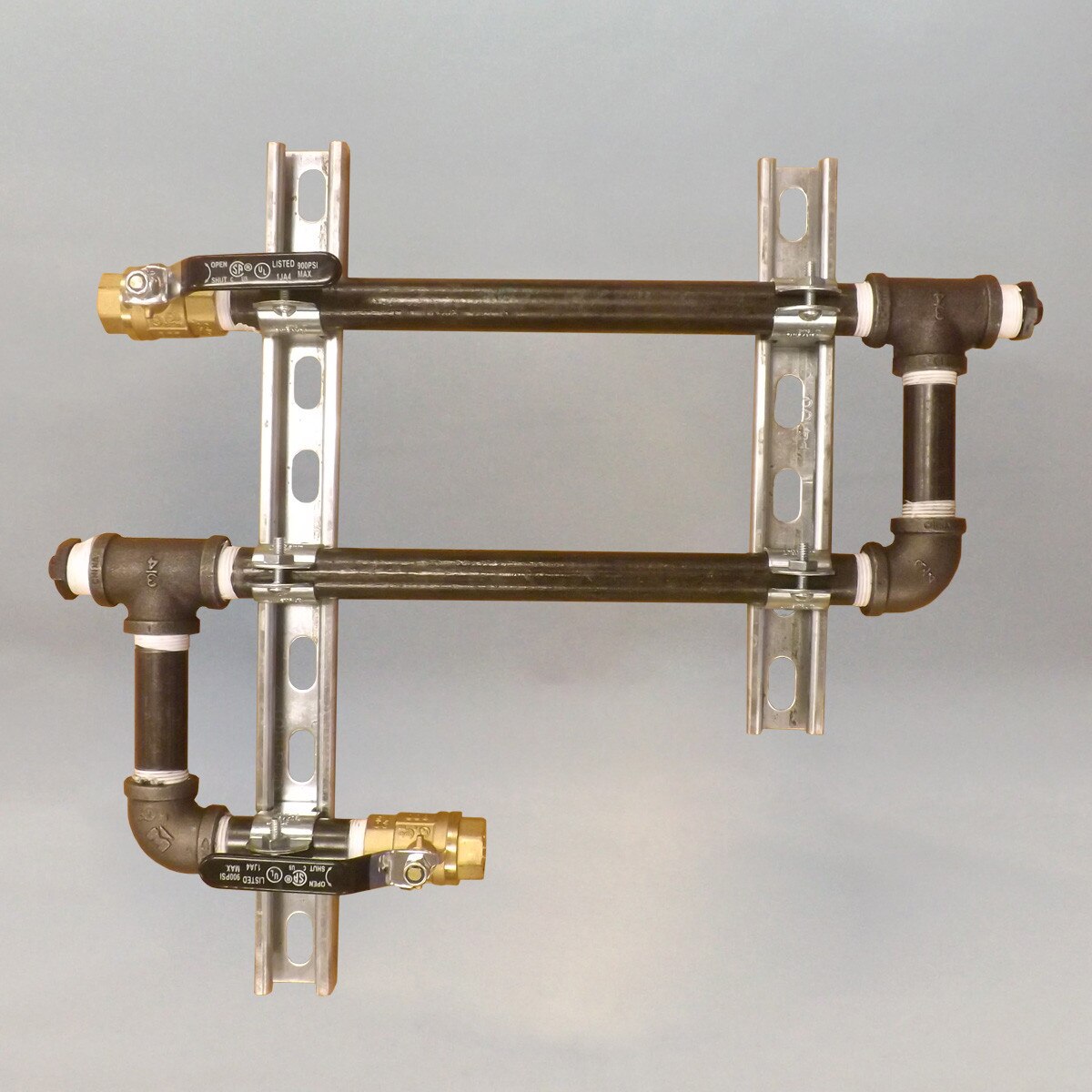

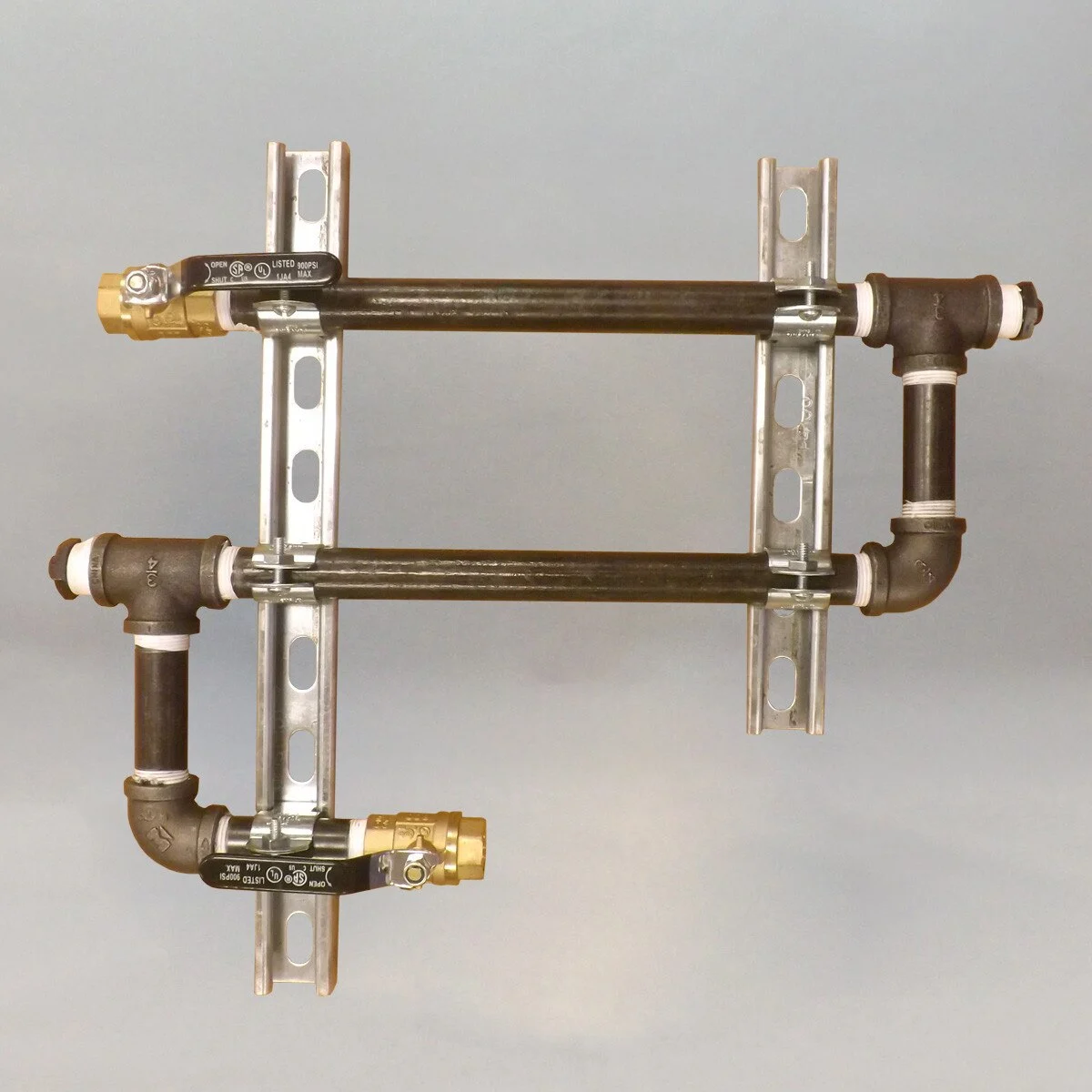

2 Station Corrosion Coupon Rack (3/4") Built to ASTM Specifications
Corrosion Coupon Rack Systems are designed to provide reliable, convenient side stream monitoring using ASTM standard coupons and are hydrostatically tested for maximum system performance exceeding industry standards. Available for cool or hot water systems, these simple and reliable coupon test stations are typically installed on the side stream of re-circulating systems to allow for controlled testing of ASTM standard coupons samples. Samples are periodically removed and examined by a laboratory in order to calculate corrosion rates and other effects such as pitting and deposition
| Product Type: | Corrosion Coupon Rack |
| Material: | Iron |
| Color: | Black |
| Max Pressure (PSI): | 250 psi (17.3 bar), 212 °F (100 °C) |
| Connections: | 3/4 in. (19 mm) black iron piping Schedule 40 |
| Mount Type: | Unistrut |
| Sections: | 2 Station |
| Overall Dimensions: | Unistrut Mounted: 16 in. H x 22 in. W (406 x 559 mm) |
| Includes: | Outlet ball valve, Steel coupon holder. |
