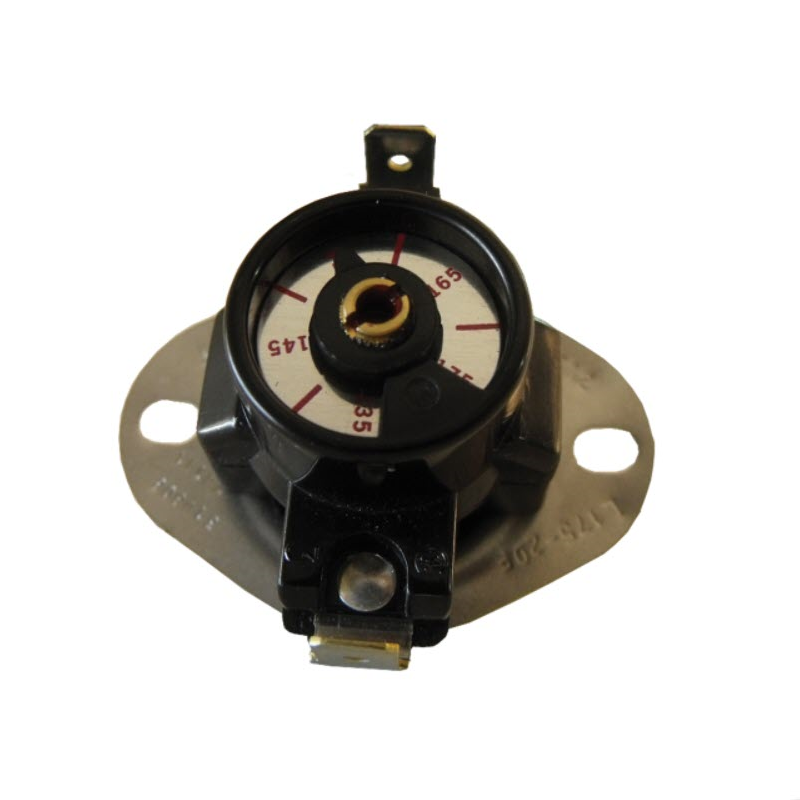

Aquastat starts your boiler or heat pump from 135 to 175°F setpoint with a 20°F differential.
Adjustable aquastat features a versatile 3/4"(19mm) bimetal disc design. The snap action of the temperature-sensing bimetal provides high-speed contact separation for an exceptional life.
Features/Benefits
- Dial knob
- Series covers almost 95% of heater and dryer applications
- 40° adjustable range
- 1/4" quick connect terminals
- UL® recognized
- CSA approved
- Open on Rising

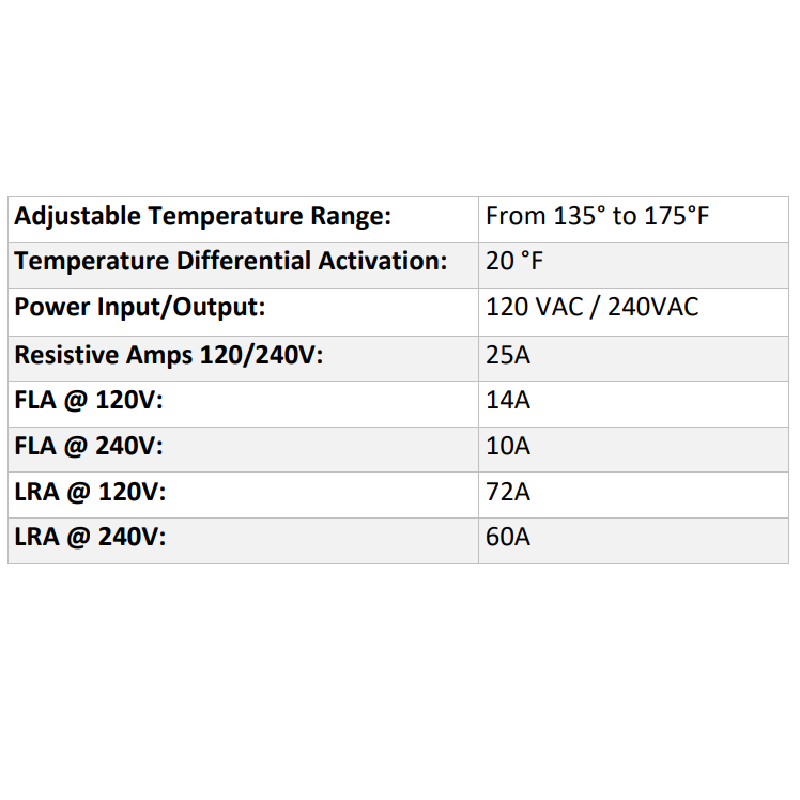

Adjustable range: | 135° to 175°F |
Differential: | 20 °F |
Voltage: | 120V/240V |
Resistive Amps 120/240V: | 25A |
FLA @ 120V: | 14A |
FLA @ 240V: | 10A |
LRA @ 120V: | 72A |
LRA @ 240V: | 60A |
