Schematic Drawing + Heat Loss Calculation

Name: Schematic Drawing + Heat Loss Calculation
Brand: MBTEK
Availability: InStock

Secure checkout · Free shipping

Need help choosing?

Call one of our specialists Use our System Builder

Schematic Drawing + Heat Loss Calculation

Main Features

Accurate Sizing

Precisely determines thermal load to ensure optimal equipment performance.
Energy Efficiency

Reduces energy use and utility bills with a correctly sized system.
Optimal Comfort

Ensures uniform heat distribution, eliminating cold spots.
Comprehensive Planning

Provides a schematic drawing for precise and error-free installation.
Component Compatibility

Guarantees all system elements work in perfect sync.
Basis for Quotation

Offers data for a transparent and accurate quote.

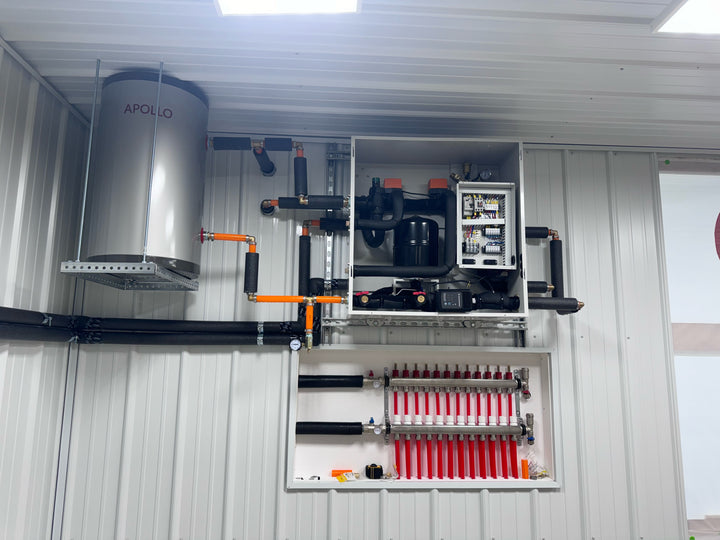

Schematic Drawing and Heat Loss Calculation service overview

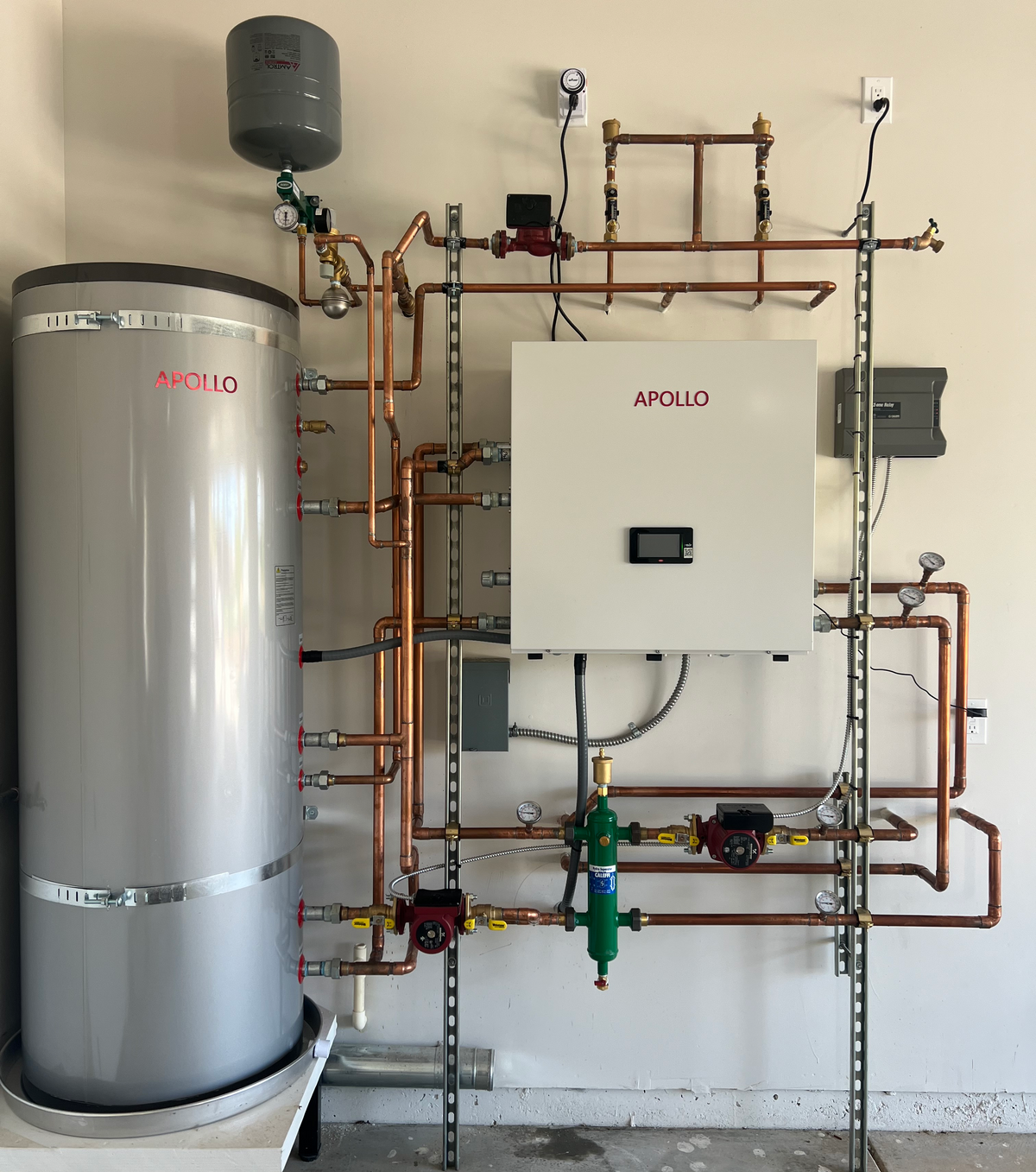

Schematic Drawing and Heat Loss Calculation service image

Accurate Sizing

The heat loss calculation precisely determines the thermal load of the space, ensuring the heating system is perfectly sized. This avoids the inefficiency and poor performance of oversized or undersized equipment.

Energy Savings

By correctly sizing your HVAC system, we significantly reduce energy consumption. This translates to lower utility bills and substantial long-term savings, making your system both effective and economical.

Optimal Comfort

The service ensures uniform heat distribution throughout your space, eliminating common cold spots. This guarantees a consistent and comfortable temperature in every room, enhancing your quality of life.

Informed Decisions

Our service provides all the necessary data for a transparent and accurate quote. This allows you to make an informed decision on equipment and installation, giving you confidence in your investment.

Technical specifications

Specifications for the Schematic Drawing + Heat Loss Calculation service.

Service Type	Schematic Drawing & Heat Loss Calculation
Purpose	HVAC System Design
Analysis Includes	Comprehensive Space Analysis
Key Deliverables	Thermal Load Calculation, Schematic Drawing of System Layout
Primary Benefit	Energy Efficiency & Optimal Comfort
Installation Aid	Facilitates precise, error-free installation
Component Assurance	Guarantees compatibility between system parts
Financial Impact	Reduces utility bills, provides basis for accurate quotes
