Pump High Efficiency 1"
$497.02
$447.31
Shipping
$99
Free
Product details

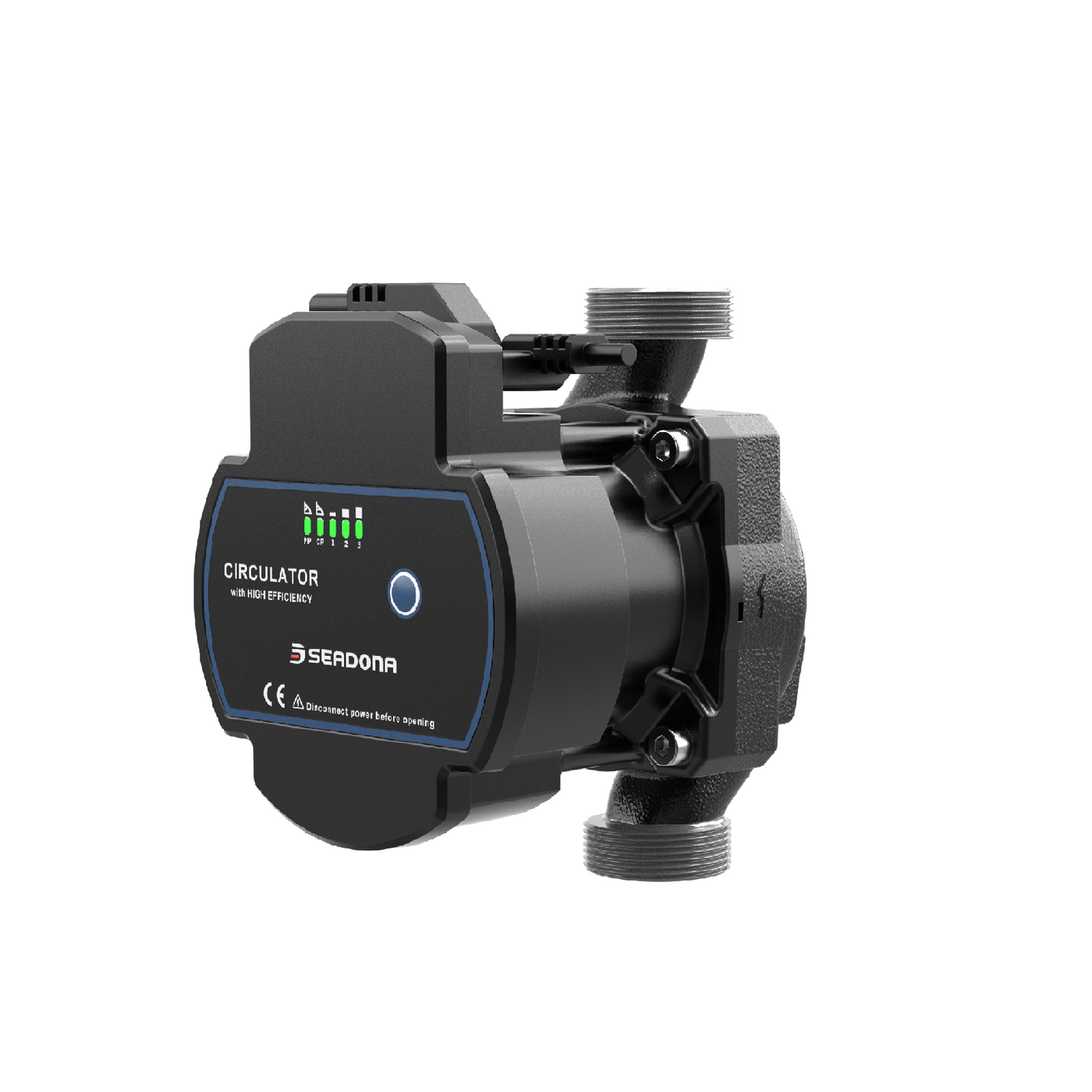

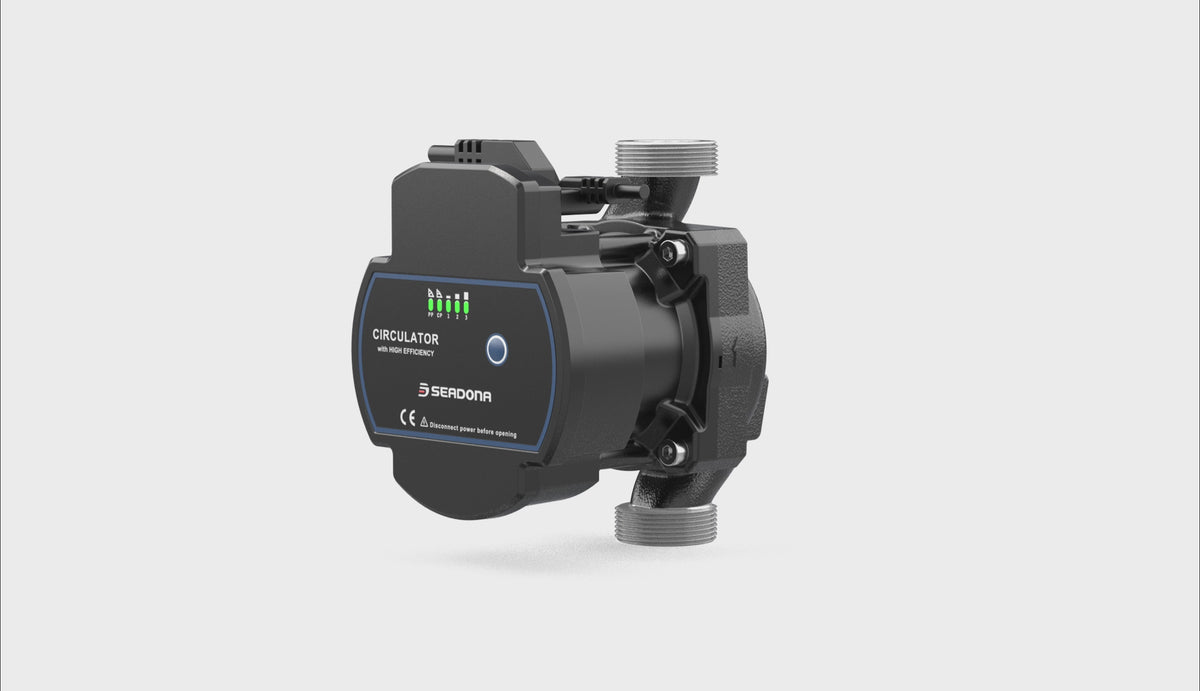

Pump High Efficiency 1"
High-efficiency variable-speed circulator pump for boiler or heat pump systems, offering multiple control modes with low power consumption.
Key Benefits

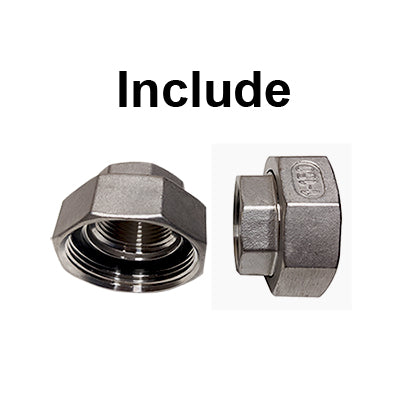

- Includes 1" NPT stainless steel flange union
- Multiple operating modes: auto, proportional pressure, constant pressure, constant speed, night setback
- ECM motor uses up to 85% less electricity
- LED display shows watts, flow, and RPM
- Quiet, compact design with plug-and-play installation
- Option to run two pumps in series to increase flow
Specifications
- Thread Size: 1"
- Max Flow: 44 GPM
- Liquid Temperature: +2°C to 110°C (35.6°F to 230°F)
- System Pressure: 10 bar
- Power Consumption: 4 to 65W
- Voltage: 230V, 50/60Hz
- Capacity: 0 to 40kW
- Sizing Guide: 1x pump for APOLLO 2-3.5T / UNI 15-35 / Pellet 20-40 / EKO 15-35 / Phoenix 18-35; 2x in series for APOLLO 5-6T / UNI 55-95 / Pellet 60-95 / EKO 55-95 / Phoenix 50
Customer Success Stories
Heats my home nicely and economically. The cold weather does not seem to affect the pump. Overall I'm very happy with the system. The techs have been very helpful whenever I have had questions regarding installation, etc.
Reliable Heating in Cold Weather
Economical performance that isn't affected by low temperatures.
Reliable Heating in Cold Weather
Pump High Efficiency 1"

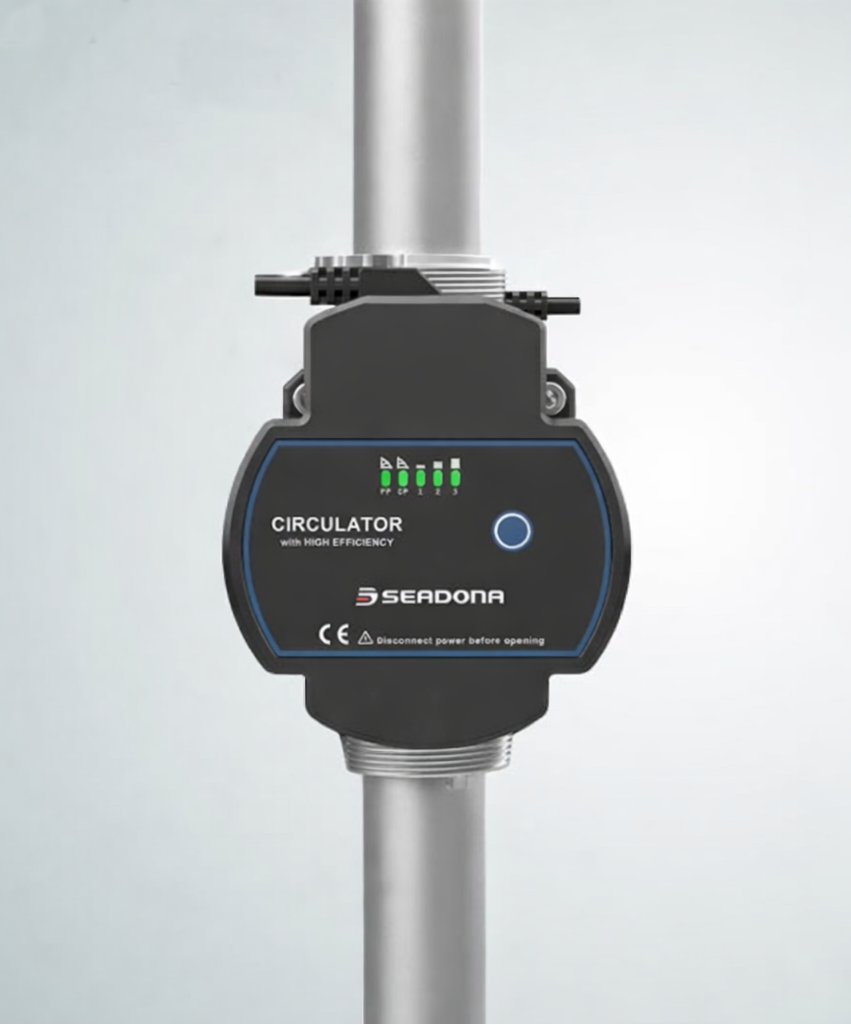

Main Features
-
High Energy Efficiency
Powered by a permanent magnet ECM motor that can reduce electricity use by up to 85 percent while maintaining an EEI of 0.20 or lower.
-
Intelligent Operating Modes
Supports Auto, Proportional Pressure, Constant Pressure, Constant Speed, and Night Setback modes for adaptable hydronic performance.
-
Real-Time LED Display
The built-in LED display shows live operating data including watts, flow rate, and motor speed for fast system checks.
-
Robust Construction
Built with a compact pump body and 1 inch NPT stainless steel flange unions for long-term durability in demanding HVAC systems.
-
External PWM Control
Accepts an external PWM control signal for tighter integration with advanced boiler, heat pump, and hydronic control strategies.
-
Compact & Easy Installation
Its small footprint and plug-and-play form factor simplify installation in tight spaces across boilers and HVAC mechanical rooms.
Advanced Safety Protection
Electronic protection features help defend the pump against locked-rotor events, dry-run conditions, and voltage faults during operation.
Scalable Flow Capacity
Two pumps can be installed in series for larger systems, expanding compatibility with higher-output Apollo, Uni, and Phoenix units.
Ultra-Quiet Operation
Designed for low noise and vibration in residential comfort systems when minimum intake pressure is maintained correctly.
Dynamic HVAC Integration
Supports a wide range of applications including radiant floor heating, mixed water systems, air energy circulation, and micro CHP setups.
Technical specifications
Family-level specifications for the Pump High Efficiency 1 inch series.
| Product family | SPM-A Series, including SPM25-6-130A |
|---|---|
| Connection / size | 1 in (25 mm) inlet and outlet connections |

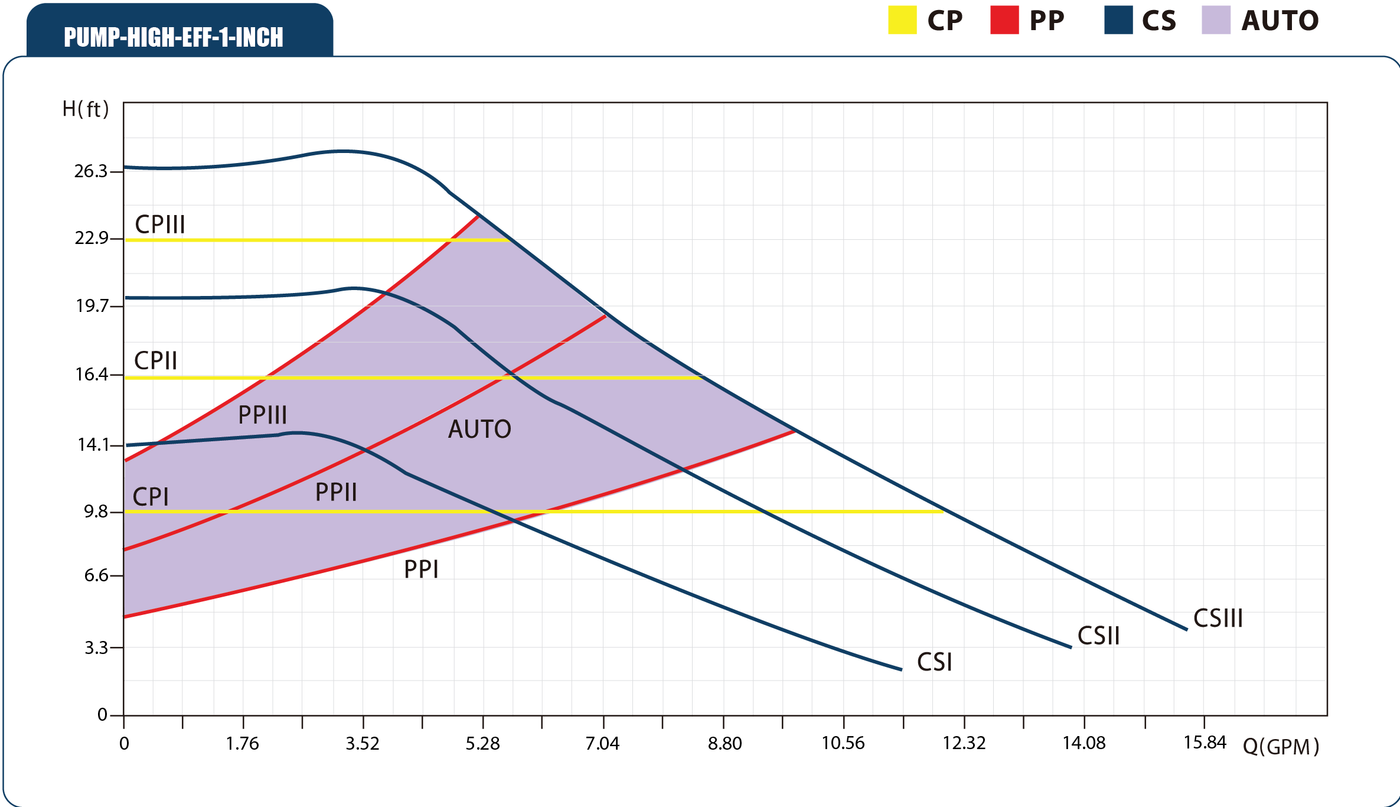

| Max head / flow | 6 m max head and 44 GPM max flow rate |
| Voltage / frequency | 230V, 50/60Hz |
| Power / efficiency | 4W to 65W with EEI less than or equal to 0.20 |
| Pressure / temperature limits | 10 bar max system pressure; +2C to +110C liquid temperature; 0C to +40C ambient temperature |
| Motor / control | High-efficiency ECM permanent magnet motor with external PWM control support |
| Operating modes / protection / capacity | Auto, proportional pressure, constant pressure, constant speed, and night setback; locked-rotor plus overvoltage and undervoltage protection; up to 40 kW single or 95 kW in series |
Use a family-specific bottom-tabs section later if this product needs comparison tables, grouped specs, or product-handle logic.
Product documents
Download the current Pump High Efficiency 1 inch manual.
Pump High Efficiency 1" Manual
Installation and operation manual for the Pump High Efficiency 1 inch series.
