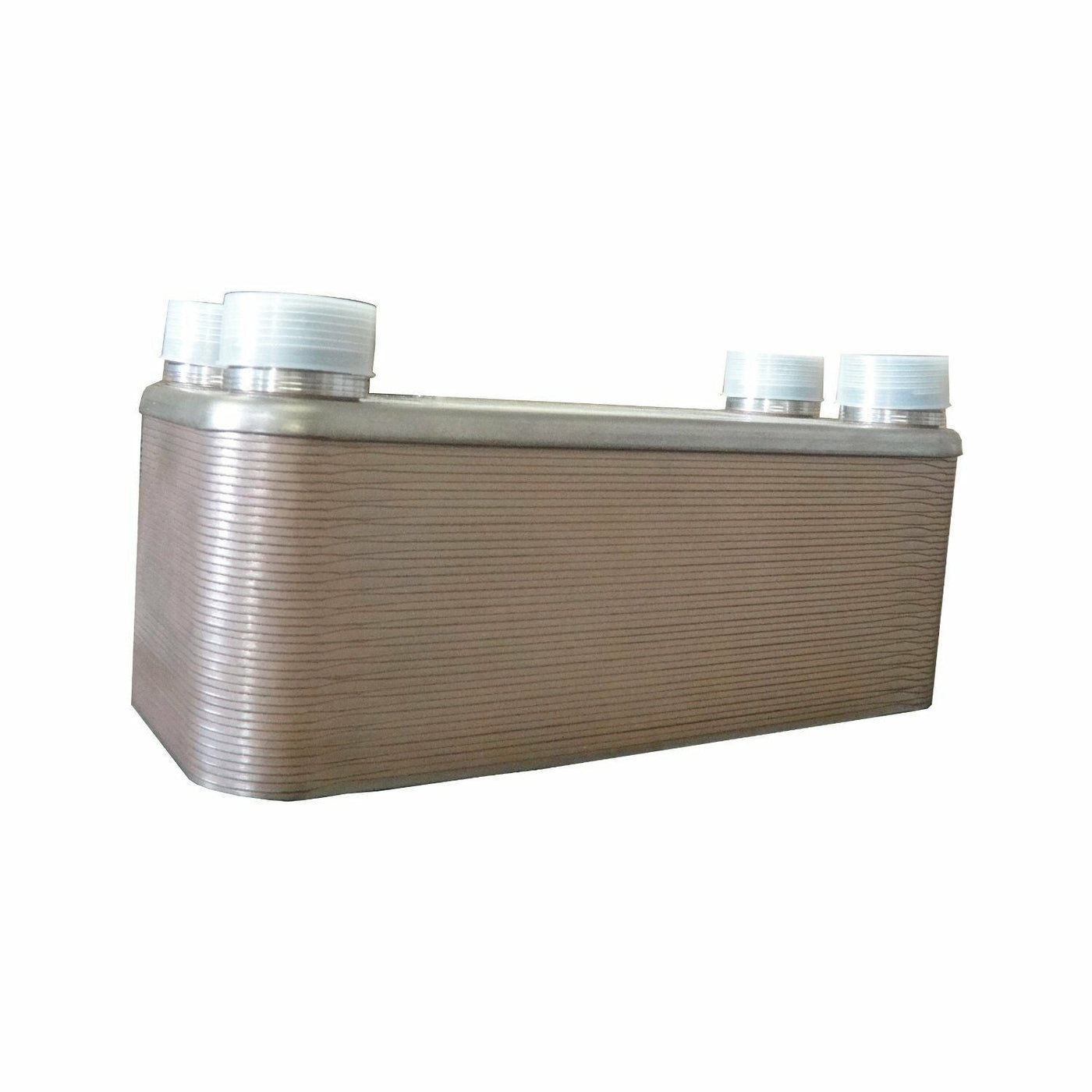

20~100 Plate Brazed Plate Heat Exchanger Water to Water 1" FPT Ports AISI 316L Stainless Steel (5x12"/8x24")
Brazed Plate Heat Exchanger (BPHX)
Brazed Plate Heat Exchanger (BPHX)

Brazed Plate Heat Exchanger (BPHX)

$425.48
Size
Plate

Guaranteed safe checkout

  • USA/CAN Shipping
  • 30 Day Return
  • Active Support
  • Since 2008
  • Extreme Freeze ProtectionPremium antifreeze solution safeguards piping in severe winter climates.
  • Ultimate System ProtectionPrevents corrosion and scale build-up on copper, steel, and aluminum.
  • Peak Thermal Efficiency100% concentrated formula significantly improves overall system performance.
  • Universal CompatibilityPerfectly formulated for radiant floors, boilers, chillers, and heat pumps.
  • Safe, Non-Toxic FormulaHigh-quality, non-toxic liquid ideal for residential and commercial use.

Product details

Brazed Plate Heat Exchanger (BPHX) – Compact High-Efficiency Heat Exchanger

Compact and highly efficient heat exchanger designed for demanding HVAC, hydronic, and industrial applications, featuring a gasket-free brazed construction for durability and reliability.


Key Benefits

  • Compact and lightweight design ideal for space-constrained installations
  • High thermal efficiency with turbulent flow for maximum heat transfer
  • Leak-proof brazed construction with no gaskets or maintenance required
  • Corrosion-resistant materials for long service life
  • Handles high pressure and extreme temperatures
  • Versatile use across HVAC, refrigeration, and hydronic systems
  • Customizable configurations with different plate quantities


Specifications

  • Material: 316L Stainless Steel + 99.9% Copper
  • Ports:
    • 5" x 12": 1" Male NPT
    • 10" x 20": 2" Male NPT
  • Plate Quantity: 30 / 60 / 100
  • Design Pressure (Max): 435 PSI
  • Test Pressure (Min): 652 PSI
  • Design Temperature: -256°F to 437°F


Compatibility

Suitable for heat pumps, boilers, chillers, refrigeration systems, and hydronic applications, offering efficient heat exchange in both residential and commercial systems
