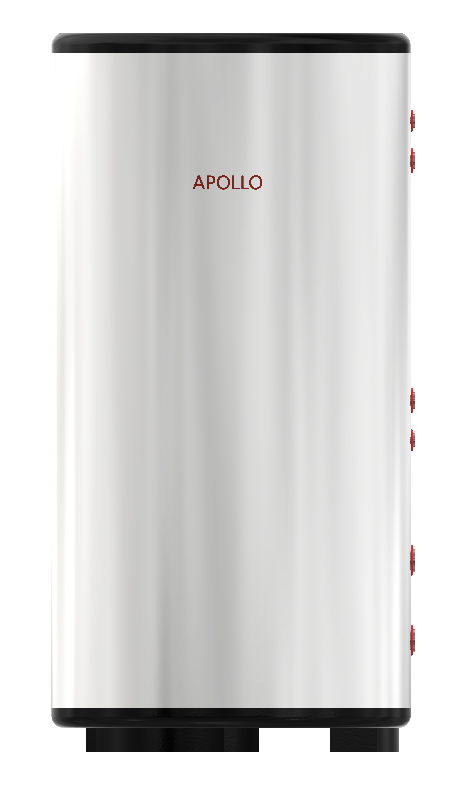

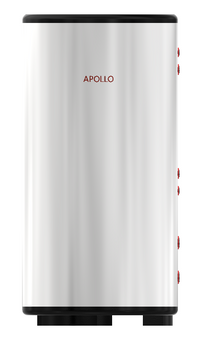

Apollo DHW MAX Series
Built for heat pump DHW performance
-
Stainless 316 inner tank & coil
Resists corrosion from DHW minerals and closed-loop fluids for a service life measured in decades.
-
Combined DHW + buffer volume
Single tank eliminates a separate buffer vessel — less piping, fewer leak points, smaller footprint.
-
2"–3" polyurethane foam insulation
Thick foam jacket minimizes standby heat loss and keeps condensation off the tank surface.
-
Optimized for heat pump cycling
Buffer volume absorbs thermal mass during defrost cycles, protecting efficiency and reducing short-cycling.
-
APOLLO patent cold water inlet
Proprietary inlet stratification increases usable hot water delivery by up to 20%.
-
200 psi rated, relief valve included
Rated for 200 psi, 120 psi relief valve and drain valve included — no extra hardware needed.
Residential & commercial ready
Sized and rated for both residential and light commercial heat pump DHW applications.

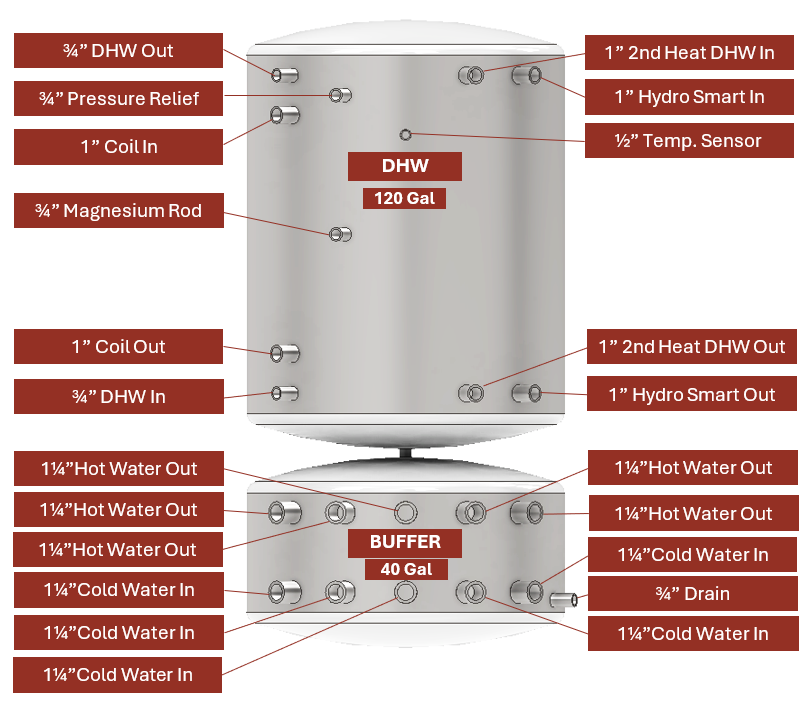

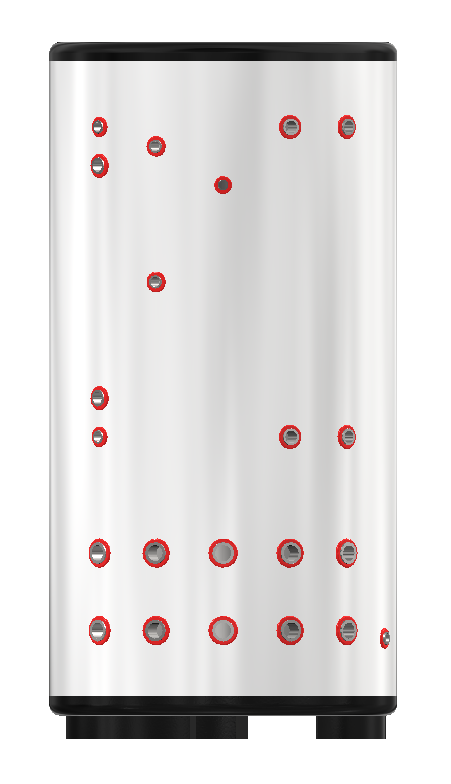

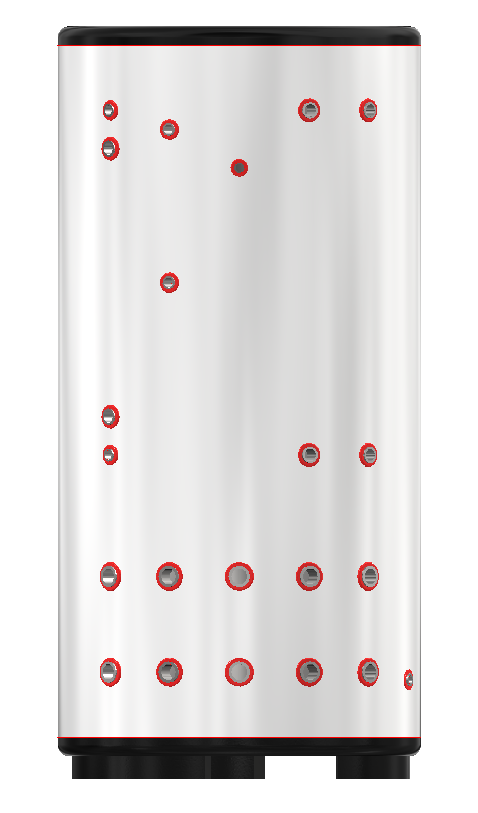

Flexible connection layout
Dedicated ports for DHW, Hydro Smart, coil, and buffer circuits — no field adapters for standard installs.
Defrost-cycle protection
Buffer volume absorbs and releases energy during heat pump defrost for stable DHW output in cold weather.
10-Year warranty
Backed by a 10-year manufacturer warranty and full MBTEK after-sale technical support.
