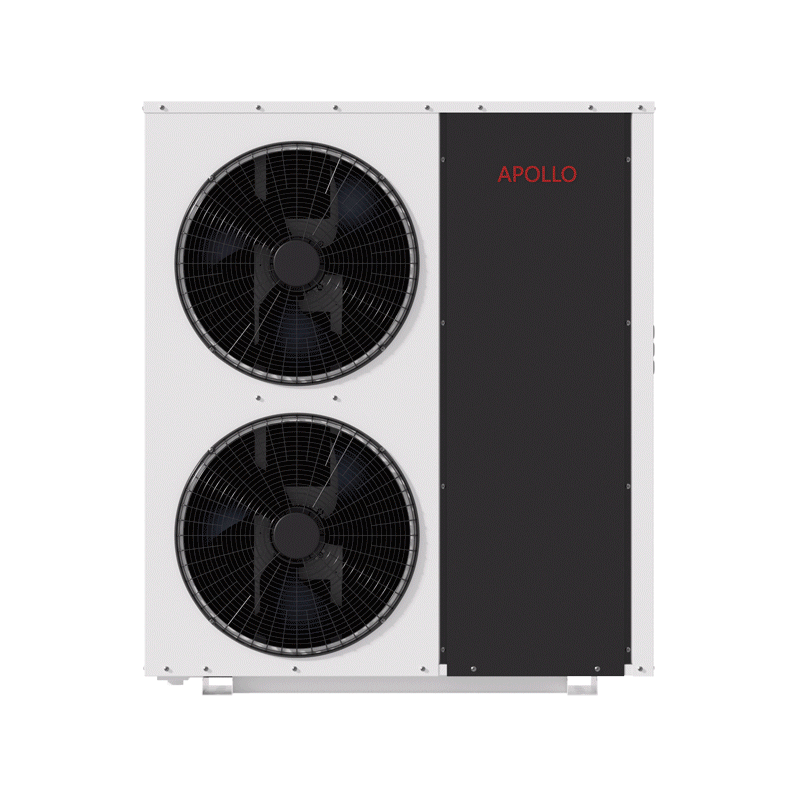

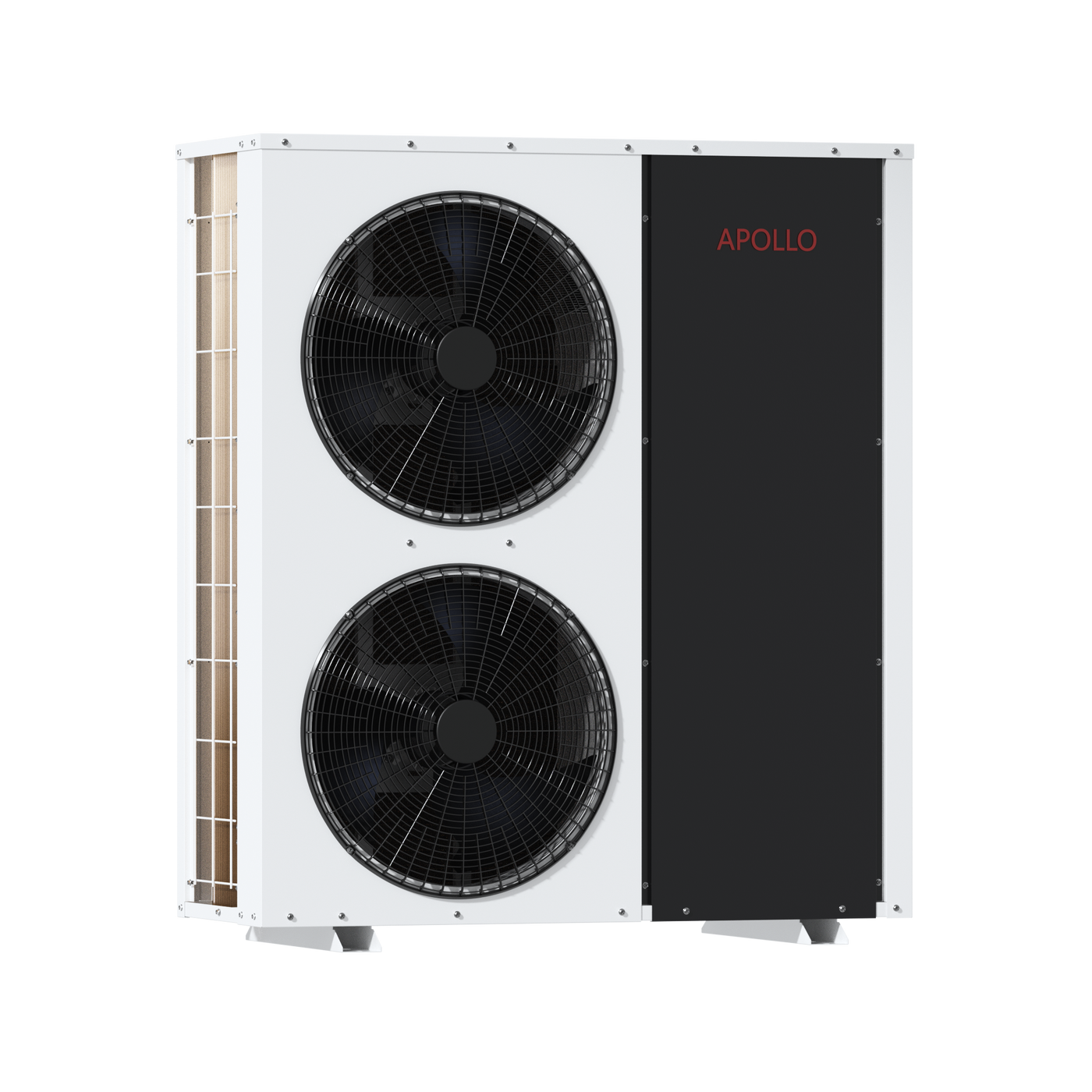

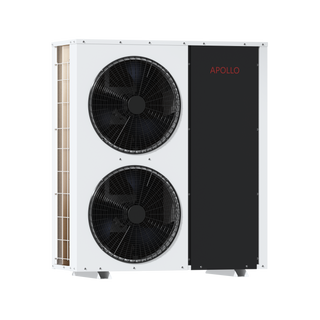

APOLLO Heat Pump - 60k btu / 5 ton - Air to Water - EVI Inverter DC technology

$5,438.40

People watching this item right now

Out of stock

 Simply the best air to water heat pump on the market.
 Designed in the USA.


  • APOLLO heat your house efficiently up to -31°F / -35°C
  • All-in-One solution for heating, cooling, DHW and pool
  • WiFi controller
  • Use with radiant floor, fan coil unit FCU, central air handler AHU

  • Heat: 4000 ft²
  • Capacity: 5 Ton, 60K BTU, 18KW
  • CSA/UL Certified for US and Canada
  • Inverter DC Panasonic Compressor
  • Inverter DC Fan Motor
  • Green Refrigerant R-410a
  • Size: L45.5"/W20"/H54"/342lb
  • Quiet operation

Warranty: 5 years

Features

Specs

Reviews / Q&A

Manual
apollo_video_img_bg

APOLLO Air-to-Water Central Heat Pumps

EVI DC Inverter Technology

The Apollo series is equipped with advanced technology that can operate in temperatures as low as -31°F.
Purchase Now

Apollo Air-to-Water
Main Features

  • Functions under -31°F

    Smart EVI inverter structure allows stable operation under -31°F
  • Energy Saving

    COP reaching as high as 5.65 for a SCOP, with an annual COP of 4.88
  • Certified Technology

    Over 65k units sold worldwide. UL certified.
  • EVI Full Inverter

    Inverter compressor with an inverter controller and DC fan motor
  • Virtually Silent

    You won't hear it running from 10 feet away
  • Famous Brand Components

    Created with Panasonic compressor and Siemens fan motor technologies.

APOLLO-Air_to_Air-main-features

Our Partners

Looking for rebates and benefits in certain programs? Check our partners and what benefits you can get from them.
imgbin_mass-save-massachusetts-logo-efficient-energy-use-png
EfficiencyVTLogoRGB
cecfeatured
ait-to-water-1_ac3dd332-b534-4c5d-a247-73d2d2e48a27

Operates well in most temperatures

Extreme Cold and Heat

Wide ambient temperature range from -31°F to 110°F. Features include intelligent control, automatic load adjustment in different climates and environments to satisfy the demands of summer cooling, winter heating, and hot water production throughout the year.

EVI / Full Inverter Technology

Highly Efficient and Noise-Free

The step-less inverter compressor, step-less inverter control system, brush-less fan motor, and DC speed water pump are all components of the APOLLO EVI + DC Inverter heat pump. It not only saves energy but is as quiet as a refrigerator, producing 12dB (A) less noise than a standard On / Off heat pump.

Honest Review!

What Our Customers are Saying

Want to know why so many people have chosen us? Here's what they have to say about it.

Want to share your opinion? Contact us and we will facilitate the steps for you
air-to-water-small-1_1ce746bd-e31d-414a-9f8a-61216dbca7a5

UL Certified

A+++ Energy Labeled

This unit is currently one of the most energy efficient, with the potential to dramatically lower customers' energy costs. Its highest COP is 5.65, with a SCOP is 4.88. Our high-efficiency DC variable frequency heat pump uses over 30% less energy than other air source heat pumps.
air-to-water-small-2

Heating / Cooling Time

50% Faster than Regular Heat Pumps

Once the heat pump is turned on, the inverter unit quickly selects the best compressor/fan motor operating frequencies. The heat pump EEV will open automatically based on heating or cooling demands. The inverters' fast heating saves up to 50% more heating time compared to traditional heat pumps.
AP-HPS4KW

A must have addon
All-in-one PUMP STATION

Because the heat pump itself is only one component of the hydronic installation, the entire system may rapidly become intricate and costly. The APOLLO Pump Station simplifies the entire process: Connect your heat pump + heat exchangers (Fan coil, Radiant floor, Radiator, Baseboard, and Pool application) to the Pump Station and you're ready to go.

Looking for more info?
  • Looking for an installer?

    Don't keep searching and check our current installer map.
    Find the nearest and give them a call!
  • Are you an installer?

    Reach us if you want to be added to our list!
    Just write us an email to:
    Info@mbtek.com
    And let us know about you!

Specifications

  • Swipe right to browse the table

GENERAL INFORMATION

HEAT PUMPUNIT3.5 TON5 TON6 TON
Power supplyV/Ph/Hz220/1/60220/1/60220/1/60
Water Inlet / OutletInch1"1"1 1/4"
Water Flow/ VolumeFt³ / h497691
NoiseDB(A)505558
Unit Dimension (W/D/H)Inch41/18/23.545.5/20/53.545.5/20/53.5
WeightLbs270350370

TECHNOLOGY

COMPONENT3.5 TON / 5 TON / 6 TON
ControllerFull Inverter Control
CompressorPanasonic DC inverter compressor
Fan motorSiemens DC fan motor
Refrigerant flow controlEmerson Electric Expansion Vavle
Heat exchangerHigh efficiency tube in shell
RefrigerantR32/R410a

Heating condition:
Air DB 68°F / WB 59°F
Water inlet: 59°F, Water outlet: 131°F

HEAT PUMPUNIT3.5 TON5 TON6 TON
OUTPUT (heat)Kbtu426072
INPUT (heat)Kbtu9.21315.7
INPUT CURRENTAmp12.217.420.8
COPW/W4.64.64.6

Heating condition:
Air DB 44°F / WB 42°F
Water inlet: 104°F, Water outlet: 113°F

HEAT PUMPUNIT3.5 TON5 TON6 TON
OUTPUT (heat)Kbtu35.847.756.3
INPUT (heat)Kbtu1114.217
INPUT CURRENTAmp14.81922.7
COPW/W3.233.353.3

Heating condition:
Air DB 10°F / WB 7°F
Water inlet: 97°F, Water outlet: 106°F

HEAT PUMPUNIT3.5 TON5 TON6 TON
OUTPUT (heat)Kbtu22.232.439.2
INPUT (heat)Kbtu10.515.218.6
INPUT CURRENTAmp1420.324.8
COPW/W2.112.132.11

Cooling condition:
Air DB 95°F / - - -
Water inlet: 54°F, Water outlet: 44°F

HEAT PUMPUNIT3.5 TON5 TON6 TON
OUTPUT (cool)Kbtu27.342.751.2
INPUT (cool)Kbtu10.21720.4
INPUT CURRENTAmp13.622.627.2
INPUT MAX CURRENTAMP20.53440.7

Customer Reviews

Based on 7 reviews
100%
(7)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Jason Loyer (Oscoda, US)
Heat pump

Great product so far but slow shipping.

J
James Brown (Bedford, US)
Heating

Need better information

P
Patricia Spain
Very impressed👌

I installed this Heat Pump in my home, and I'm very impressed. It's been keeping my home warm and comfortable, even during the coldest days.
I'm very happy with my purchase.

B
Boris Stephenson
So far so good

The Heat Pump is a great investment for anyone looking for a more sustainable and cost-effective way to heat their home. It's incredibly efficient, reliable, and easy to use. I appreciate the fact that it's eco-friendly, and it's helped me reduce my carbon footprint. I would definitely recommend it to anyone.

W
Wilbert Omara
Happy with my system

This product is an excellent heating solution for me. It's energy-efficient, eco-friendly, and effortless to use. It's significantly reduced my energy bills.

Speak with an MBTEK Heat Pump Owner in your Region

Use our interactive map to contact a Mbtek Apollo heat pump owner in your area and ask about their unit.

Frequently Asked Questions

General

Payment and Shipping

Warranty

Where can I find a dealer?

You can speak directly with one of our sales agents via phone, chat, email or text message for more information.

Who will install my heat pump?

Mbtek does not complete the installation. Any HVAC professional will be able to install your purchase. If you require assistance finding one, we are here to help.

Where can I find parts?

At this link. We have spare parts ready to ship the following business day.

When will I receive my unit?

As soon as the unit is in stock, we will book the shipment following business day. The availability (or ETA) of a specific unit is mentioned on the top of each product page. Depending on your location, delivery can take anywhere from 3 to 12 days

Do I have to pay customs fees if my unit is coming from another country?

No. We take responsibility for these charges.

Are your products shipped in the U.S. or Canada?

It varies for each product. However, we have warehouses in Pennsylvania (U.S.), Alberta (CAN), and Quebec (CAN).

What is the product warranty?

The compressor includes a 5-year warranty.
