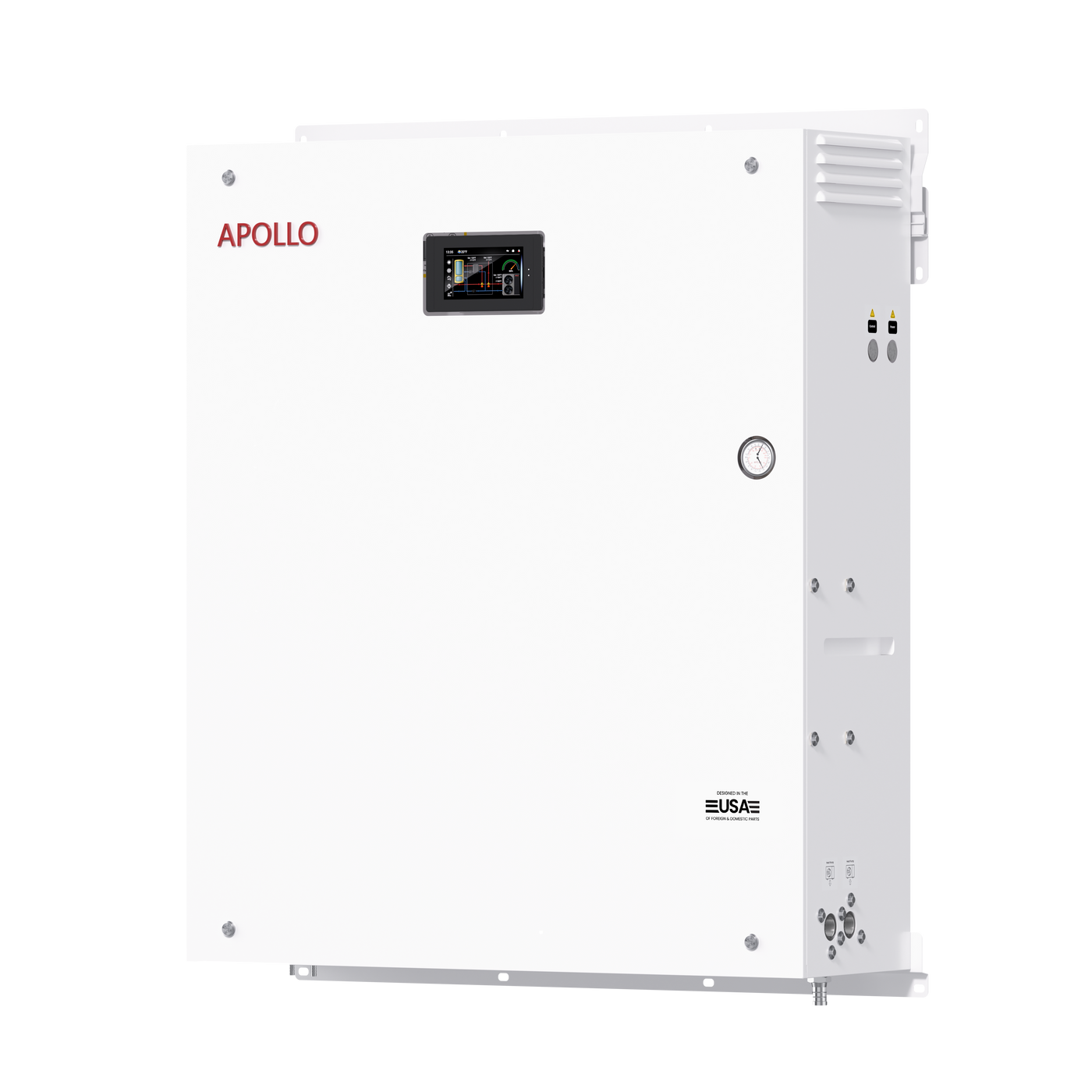

APOLLO Hydro Smart Station
Choose your model
Need help choosing?
Order online
Or call us for a complete-system quote and volume pricing.
20% OFF
$6,176
$4,941
Shipping
$865
Free
Secure checkout · Free shipping
- Powerful backup heaterBuilt-in 52K BTU backup heat supports the coldest days
- Easy pressurizationPush-button glycol pressurization simplifies startup and service
- Integrated heat exchangerDHW heat exchanger with stainless pump reduces extra components
- Dual pump circulatorsTwo high-efficiency circulators help maintain system flow
- Intelligent controlBuilt-in control capabilities help optimize comfort and water flow

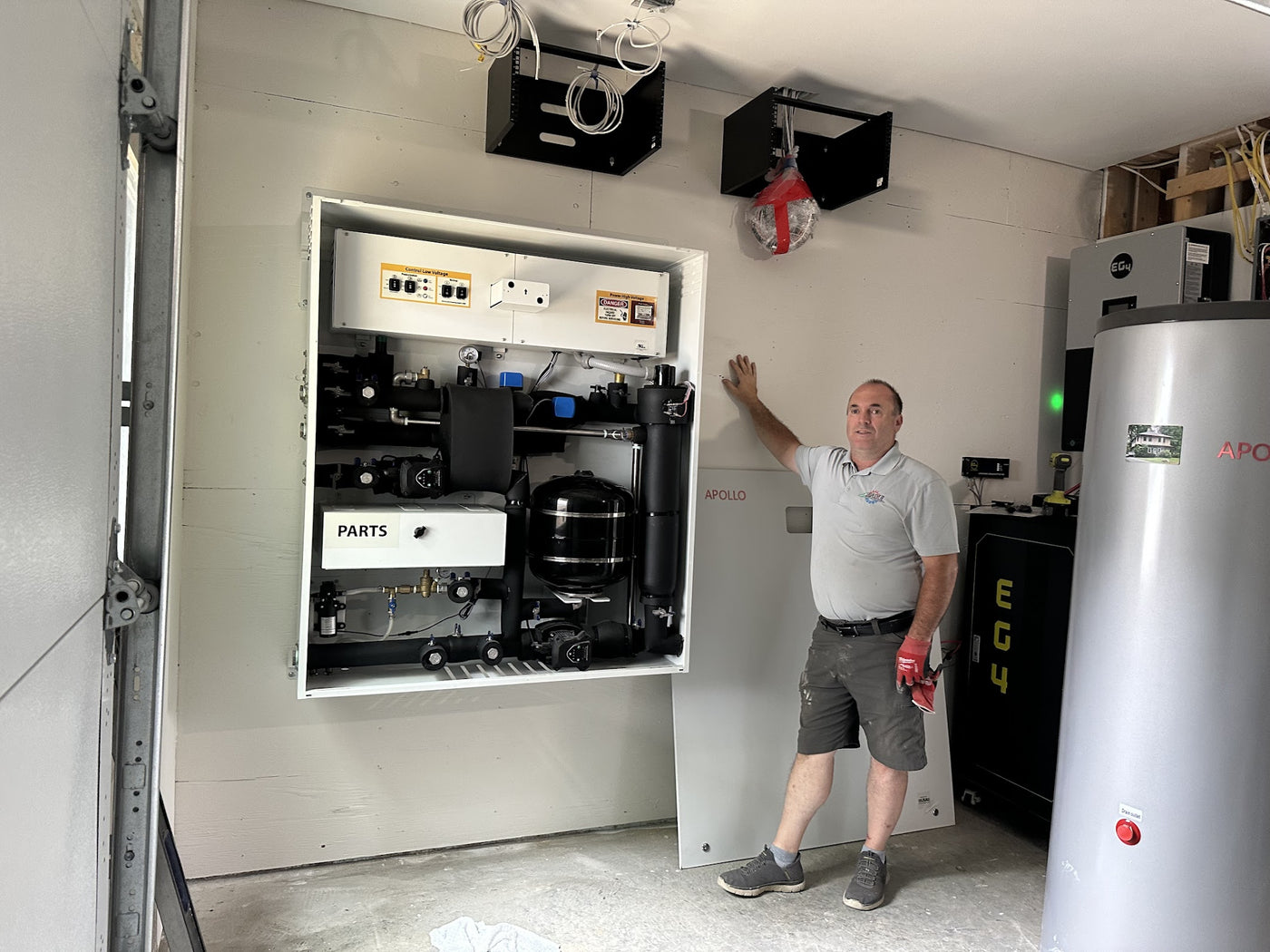

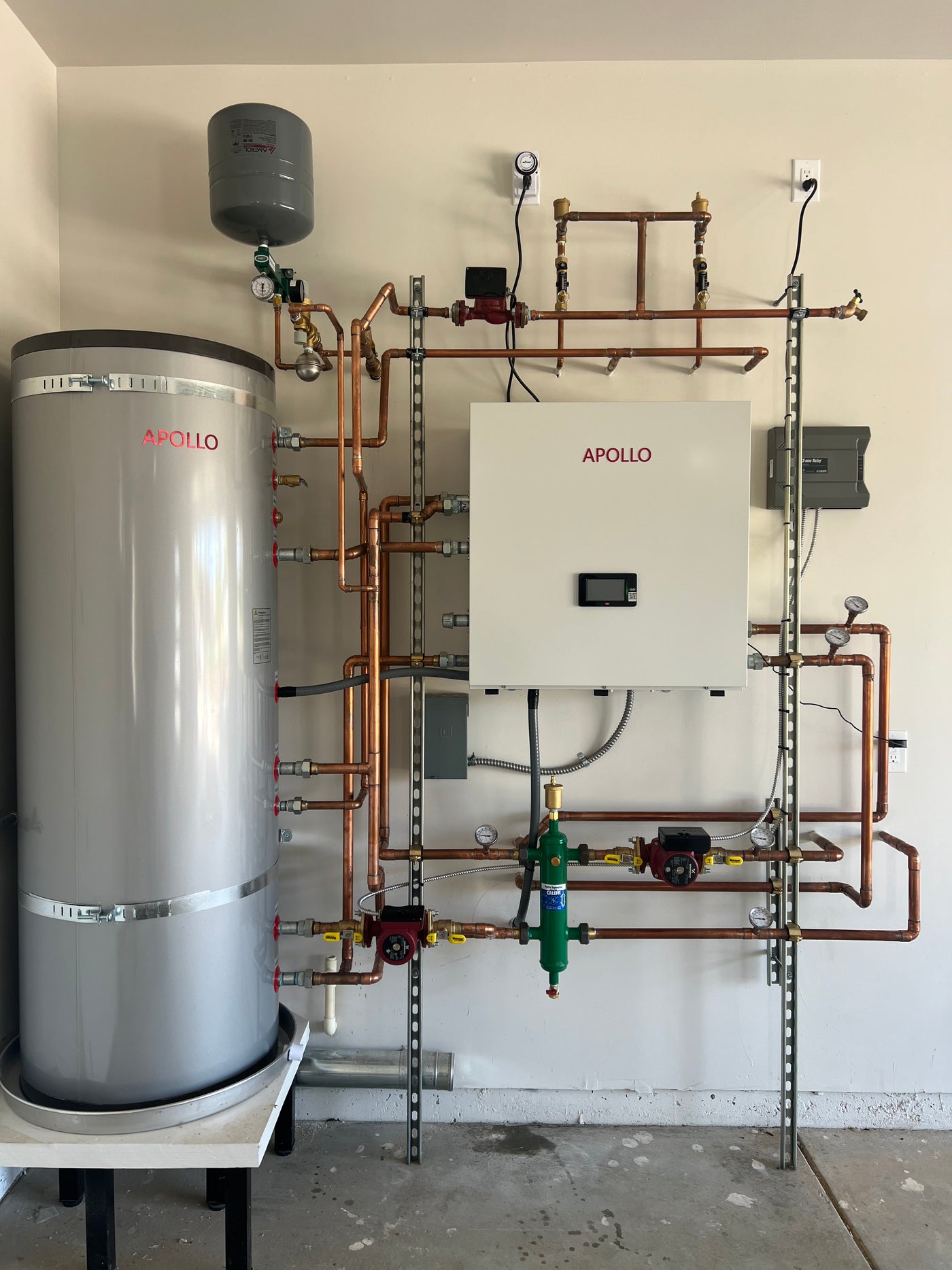

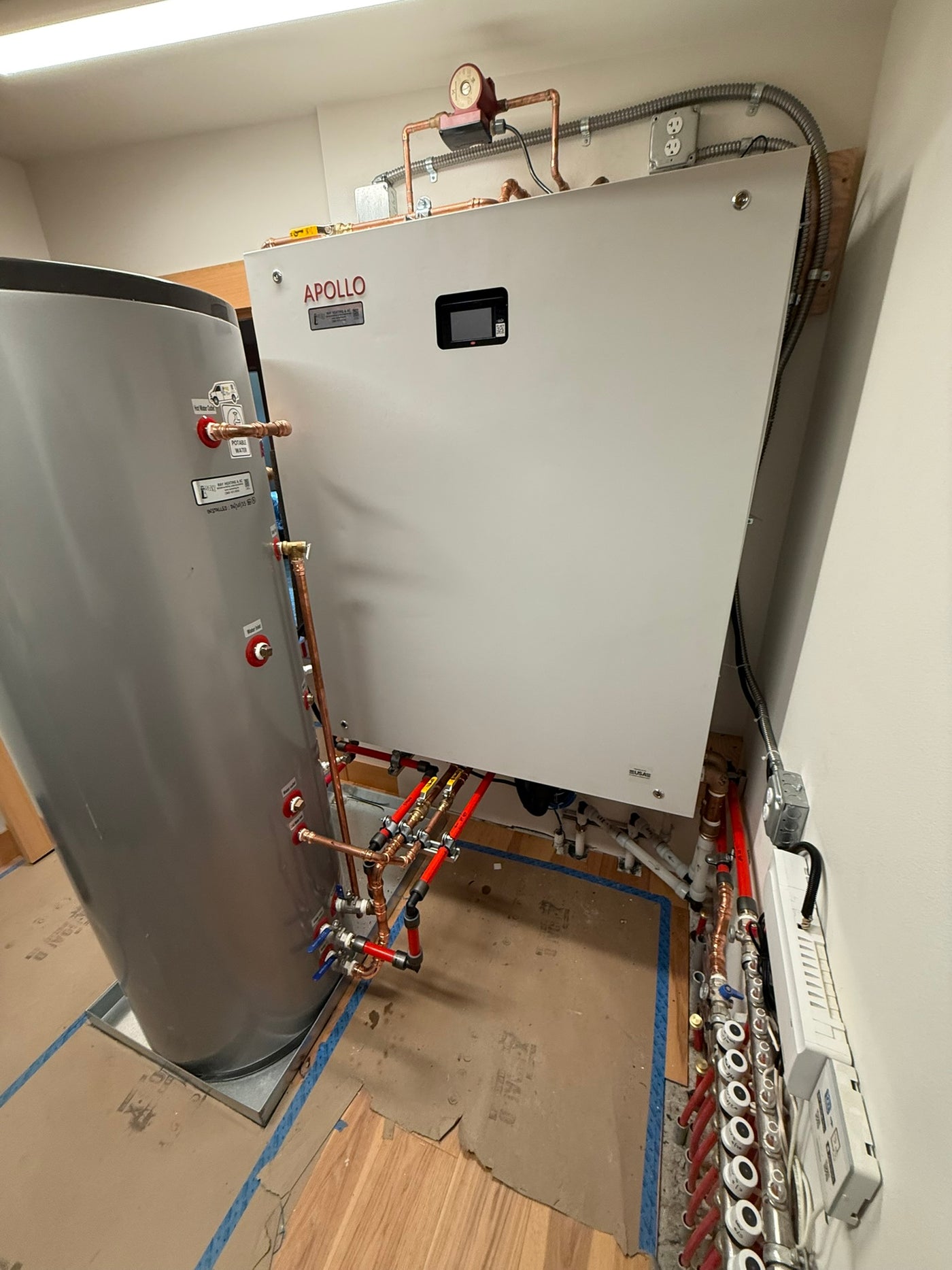

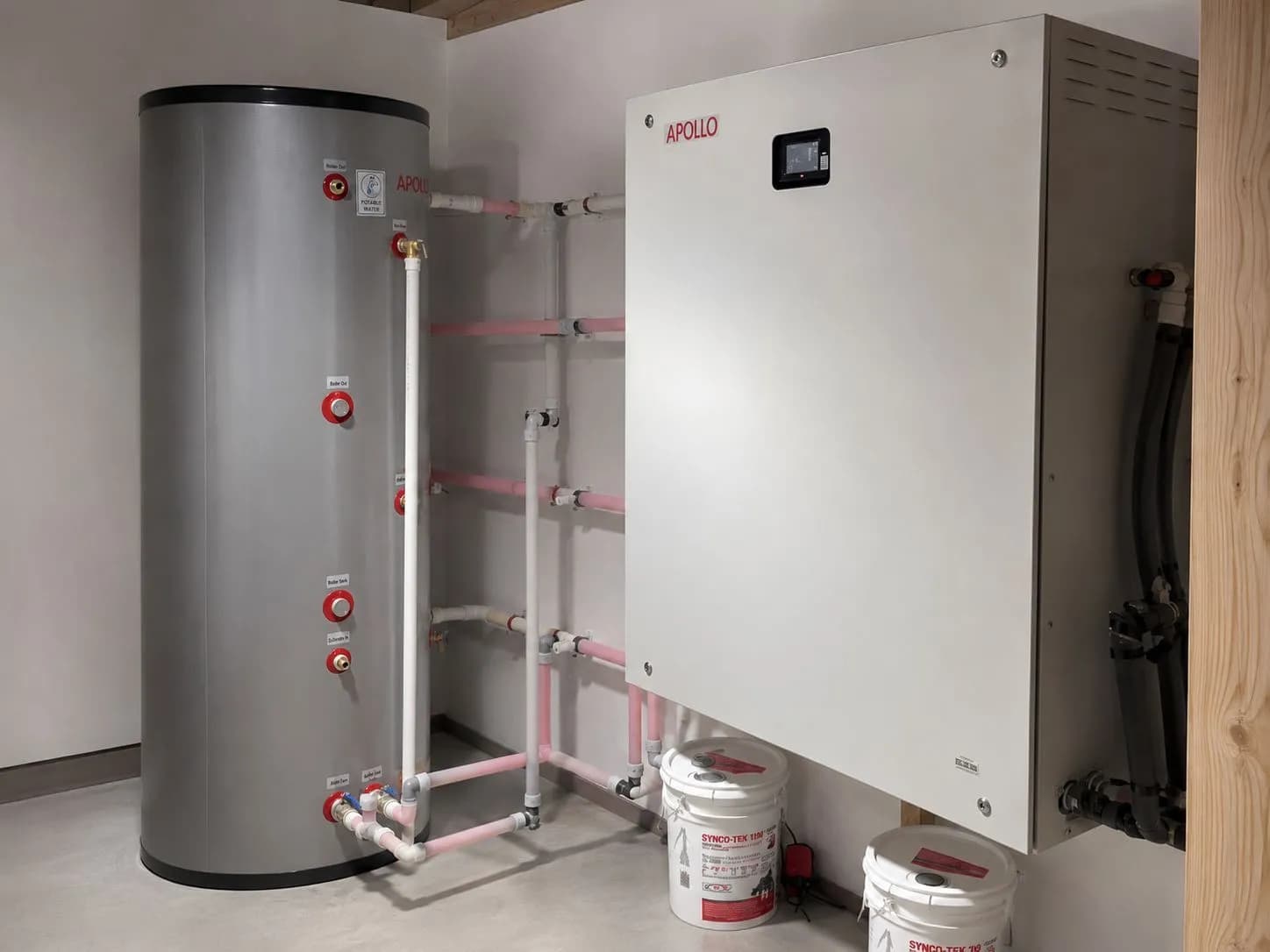

A cleaner mechanical room for hydronic heat pump systems

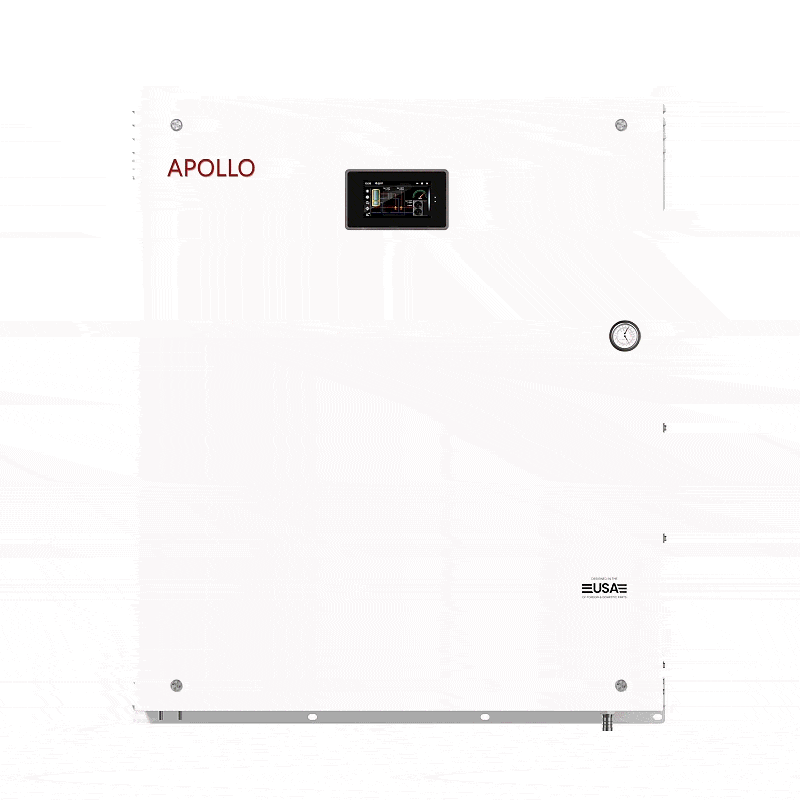

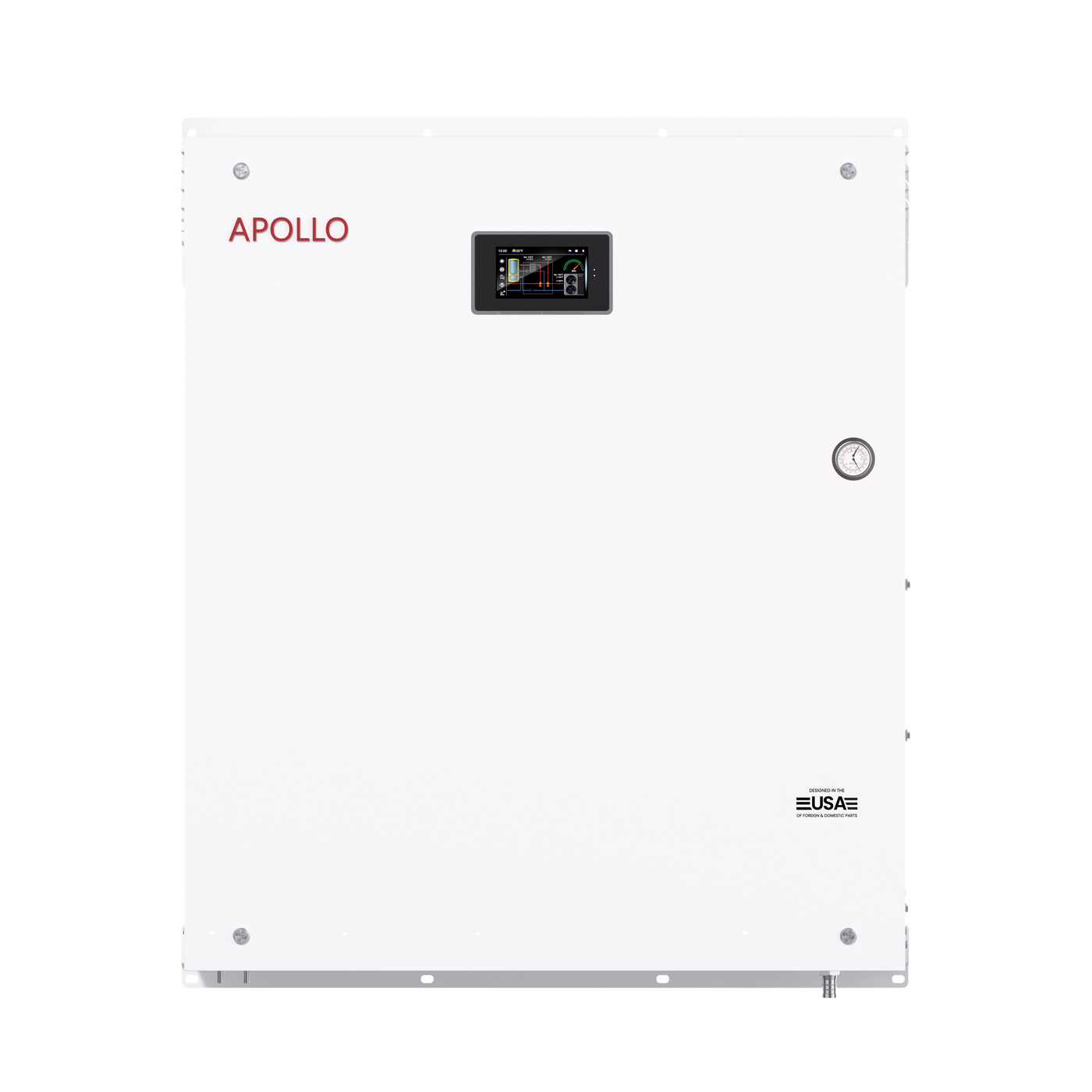

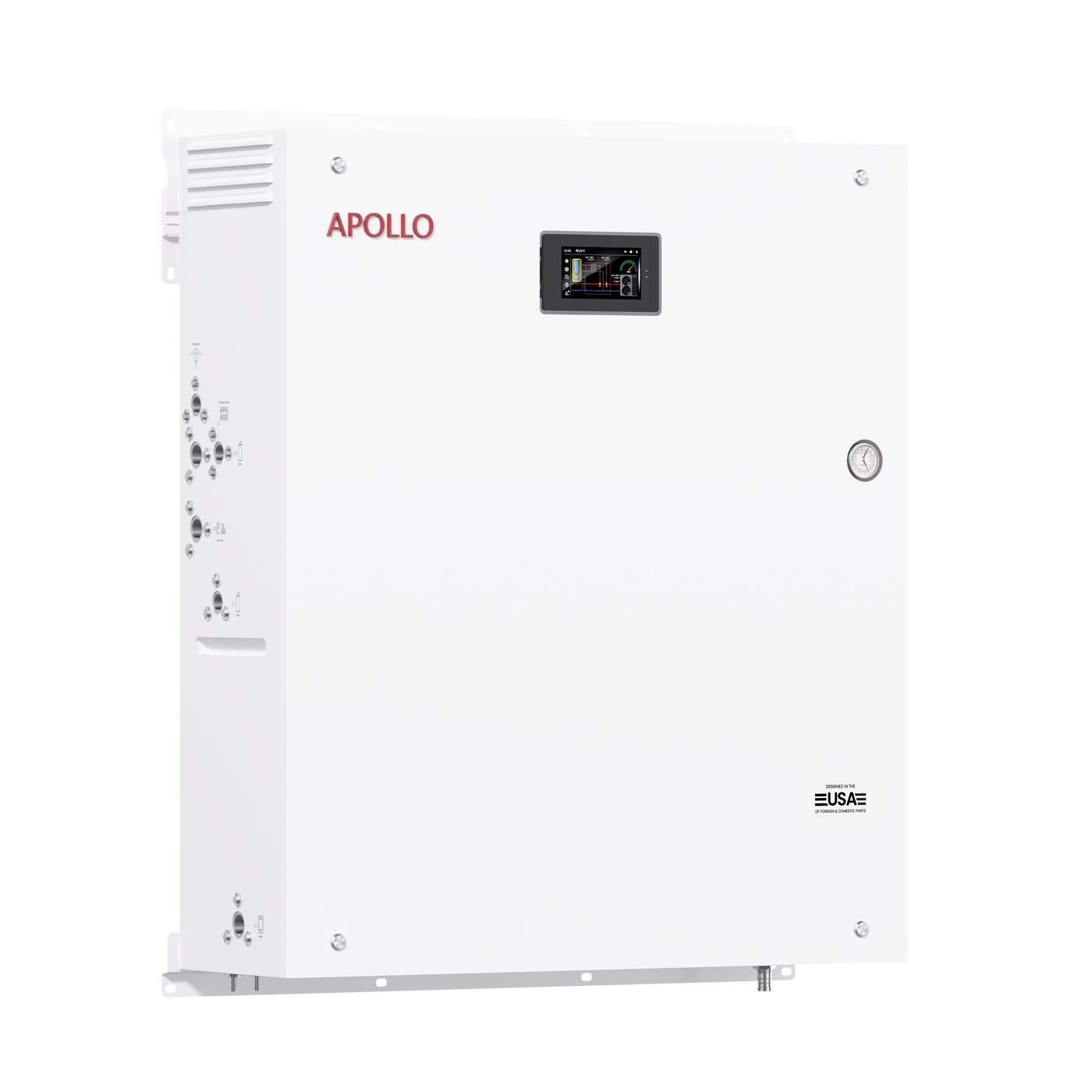

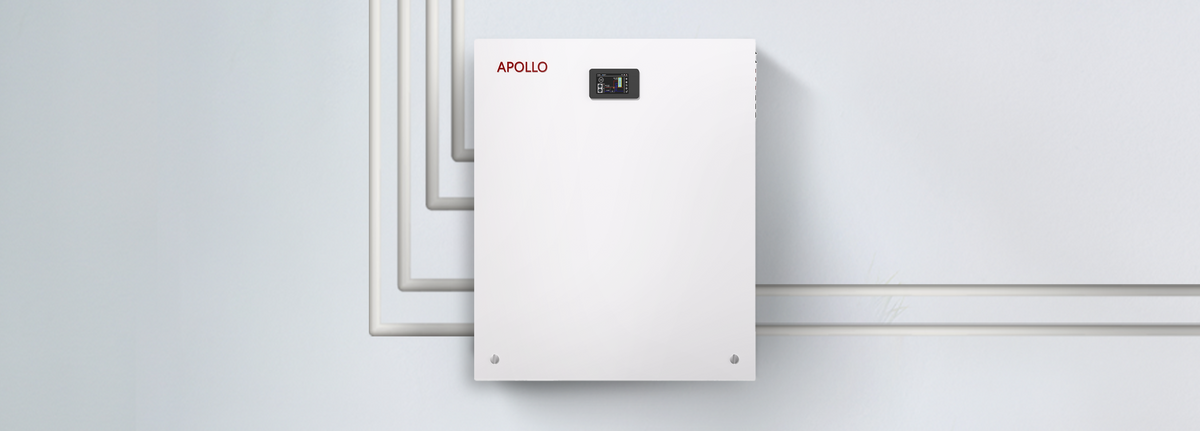

Apollo Hydro Smart Station
Main Features
-
All-in-One System
Heating, cooling, and domestic hot water in a single integrated unit.
-
Powerful Backup Heater
Built-in 15 kW (52K BTU) 2-stage electric backup keeps you warm on the coldest days.
-
Automatic Pressurization
Integrated glycol pressurization system with push-button control and pressure alarms.
-
Integrated DHW Heat Exchanger
SS 316L plate heat exchanger (16.25 ft²) with stainless DHW pump circulator eliminates extra components.
-

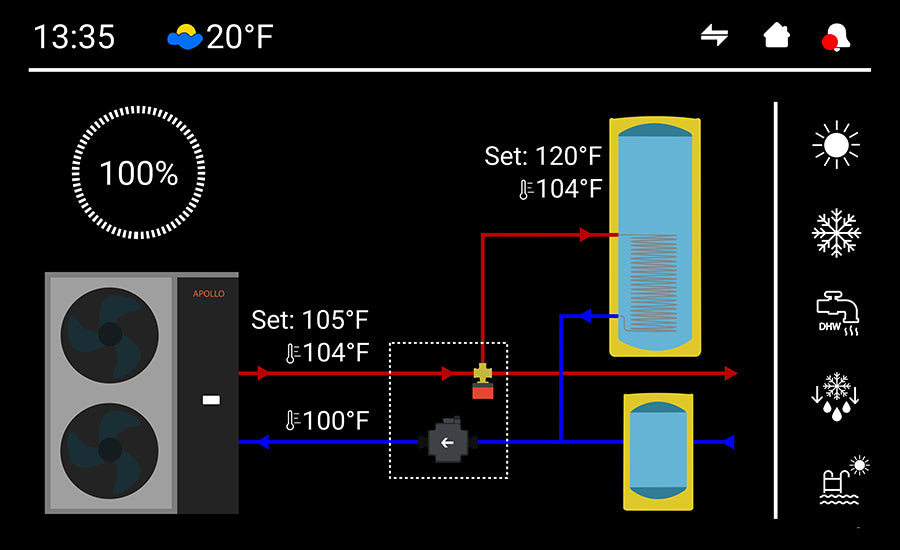

Wi-Fi Touchscreen Control
Color touchscreen controller with Wi-Fi, real-time diagnostics, and remote monitoring.
-
Zoning & Multi-Load Ready
Zone Controller connection and 2nd load support for complex hydronic systems.
Electrical Compatibility
220-240V AC 60 Hz power supply; 80A recommended breaker; AWG 4 RHW, THN, TRTHW wiring. Full load ampacity: 62.5A at 15kW, 42A at 10kW, 21A at 5kW.
Water Pressure & Temperature
Max working pressure: 150 psi. Operating temperature range: 14°F to 194°F. System fluid must be water/glycol mix at minimum 40% propylene glycol.
Zoning Capabilities
Supports Zone Controller connection and 2nd load output. Pool/AHU port included. External 24VDC pool connection available for multi-zone hydronic systems.

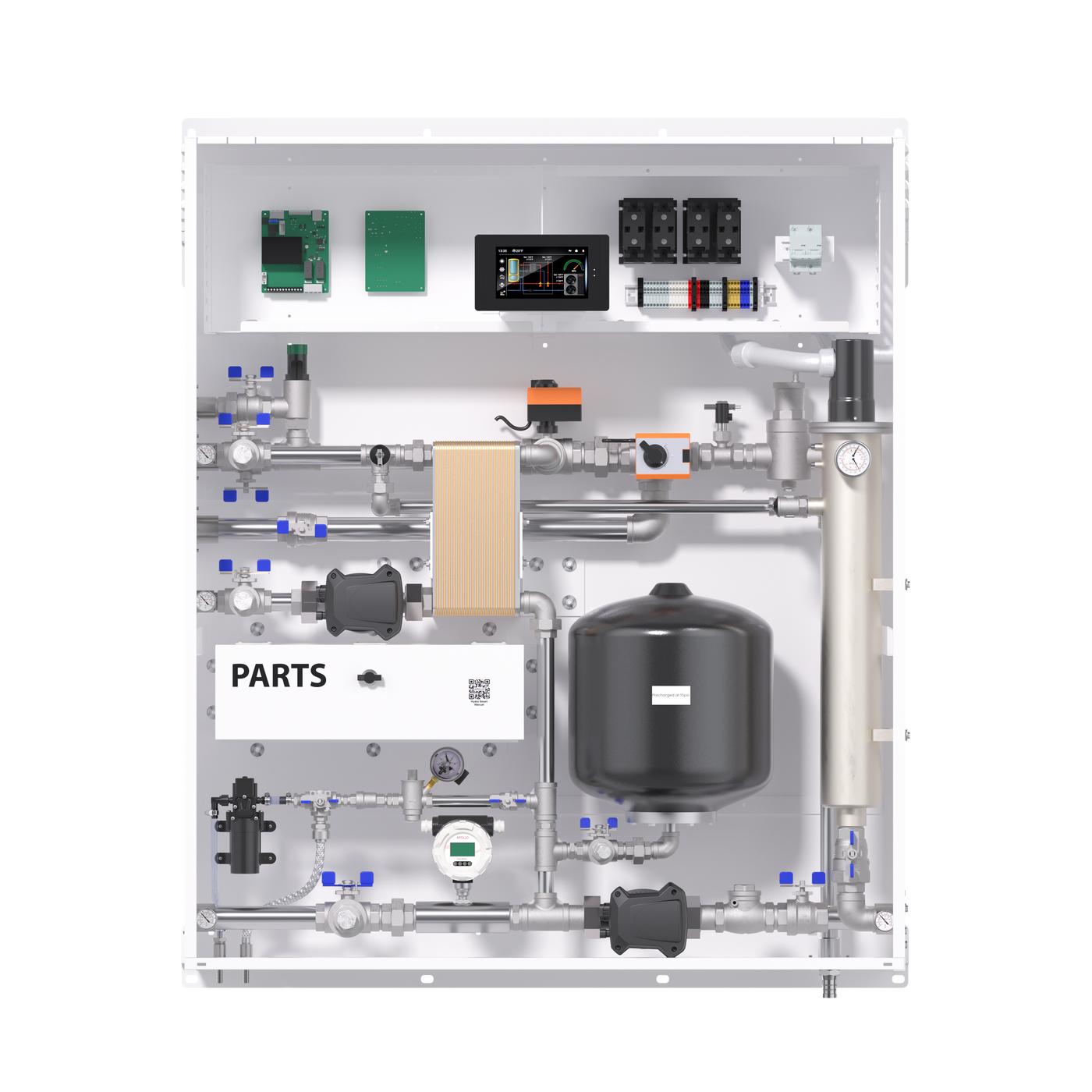

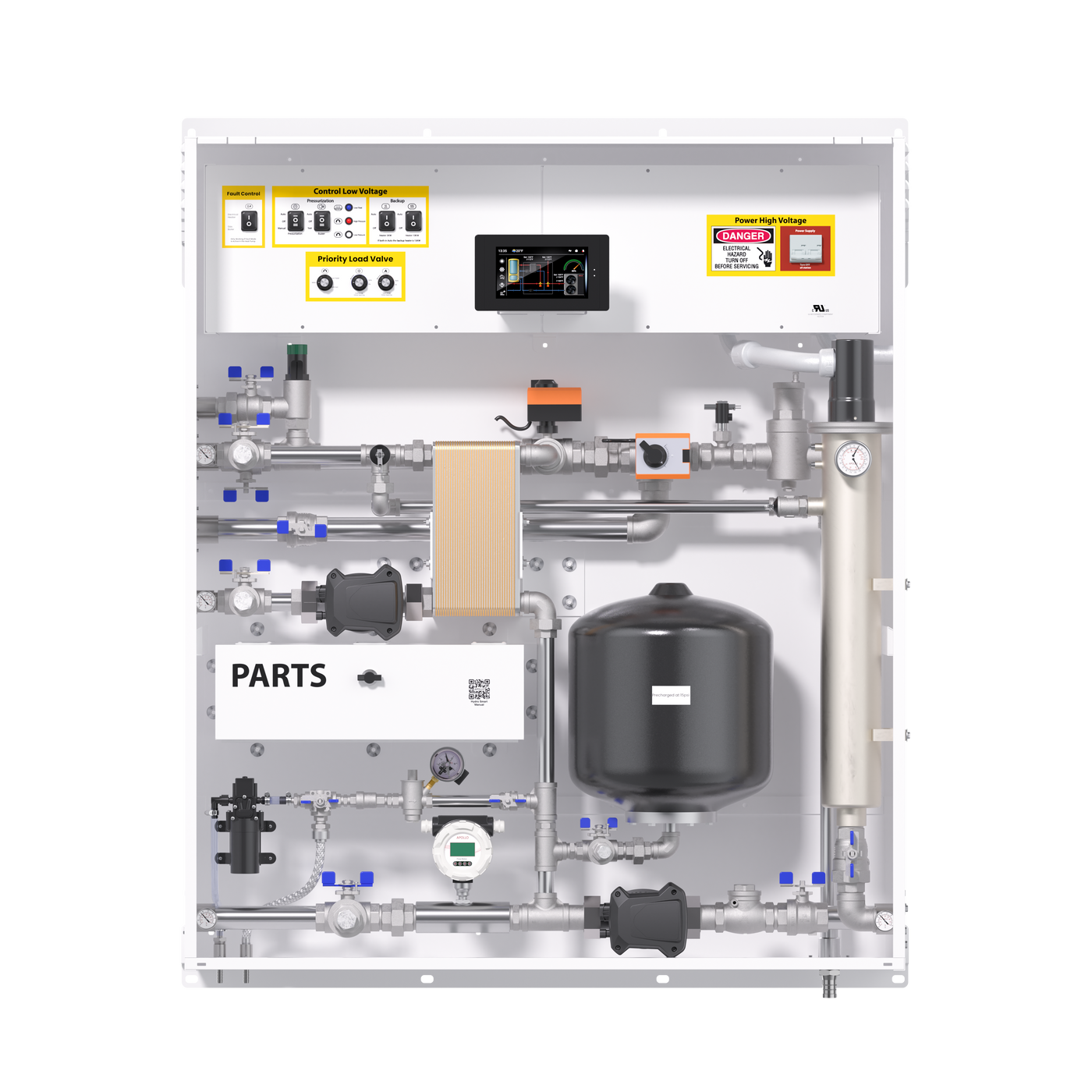

Simple Maintenance

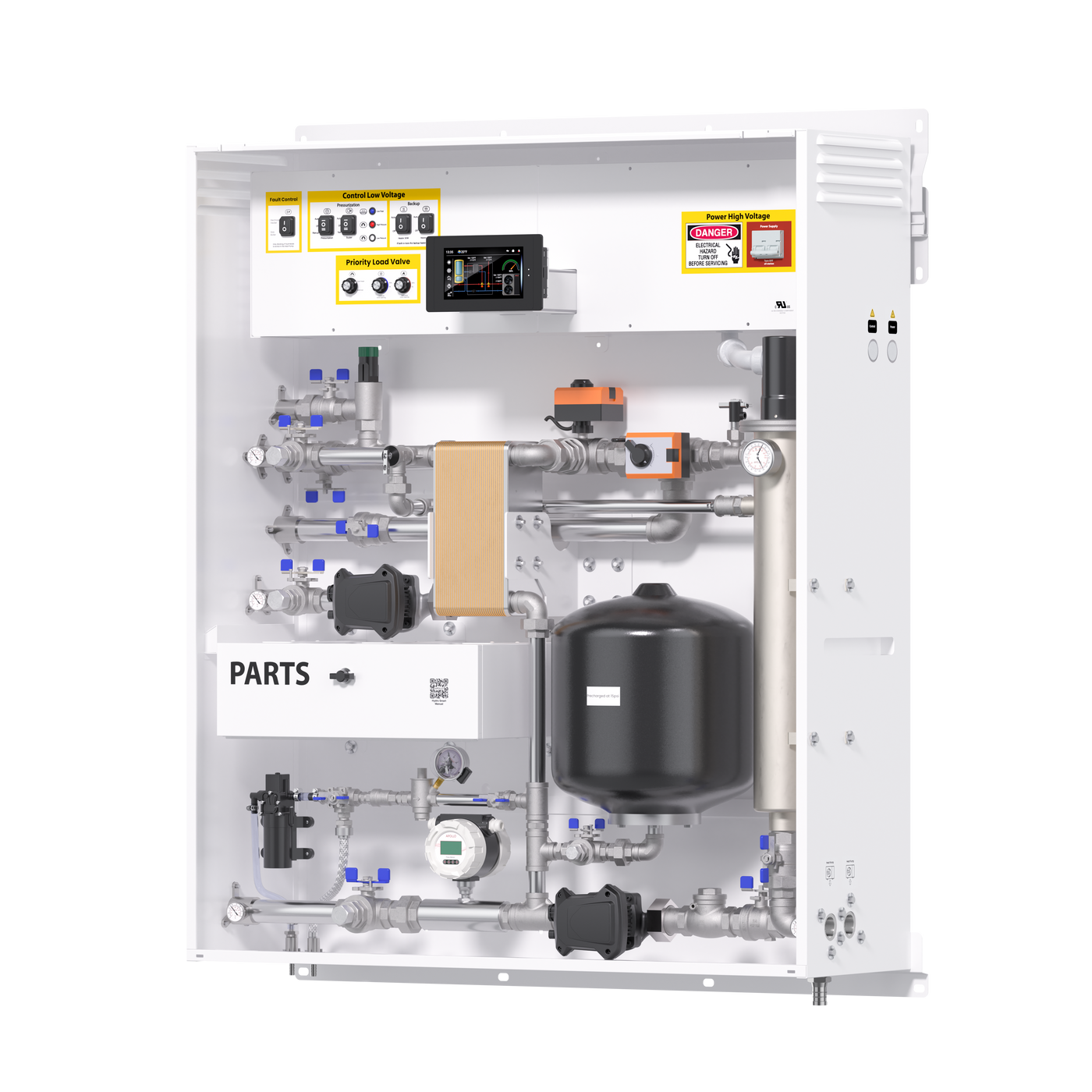

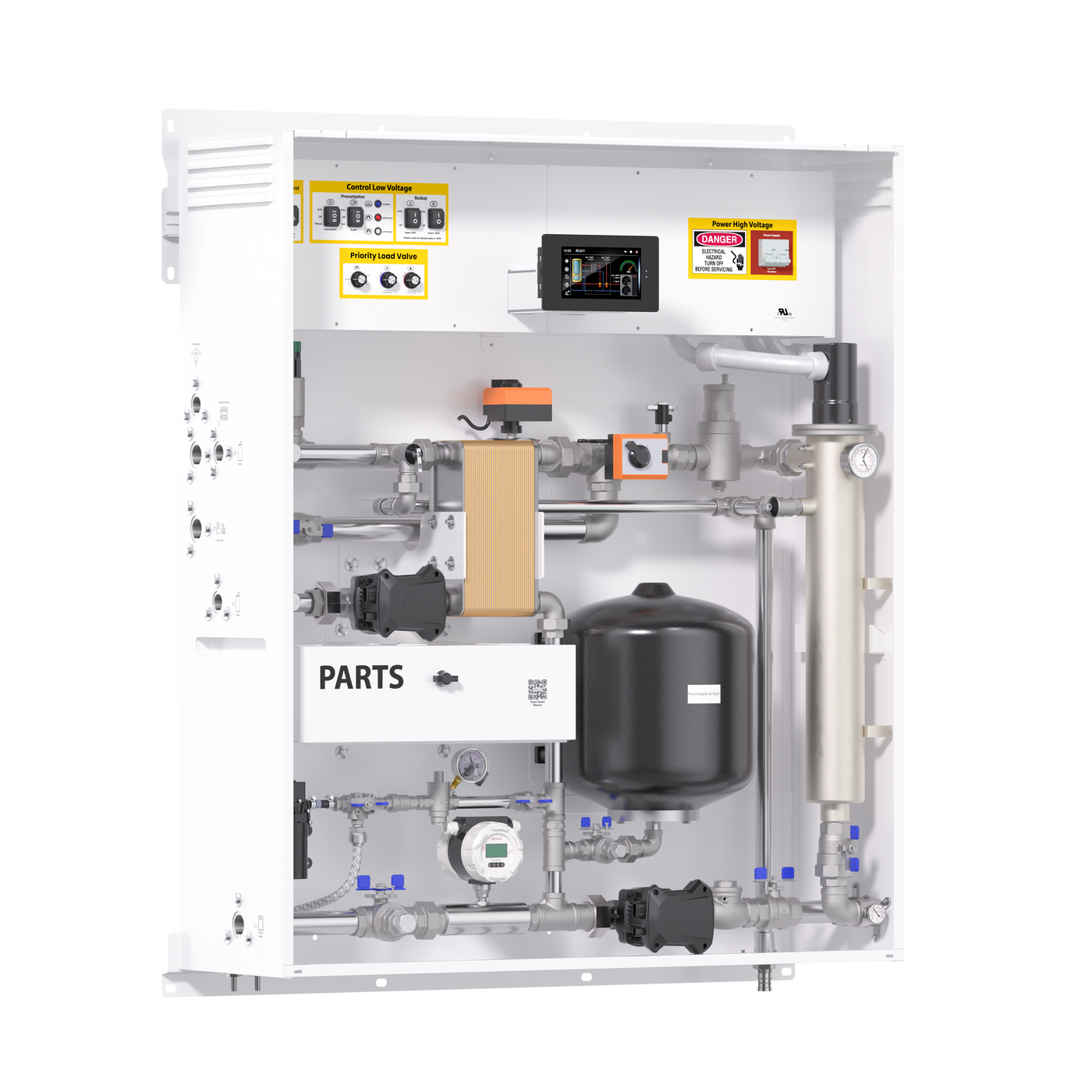

Purge and fill valve assembly, isolation valves on all main elements, air vents, dual pressure gauges, and quick-connect wiring box with external DHW tank sensor ensure easy service.
The Complete Hydronic System

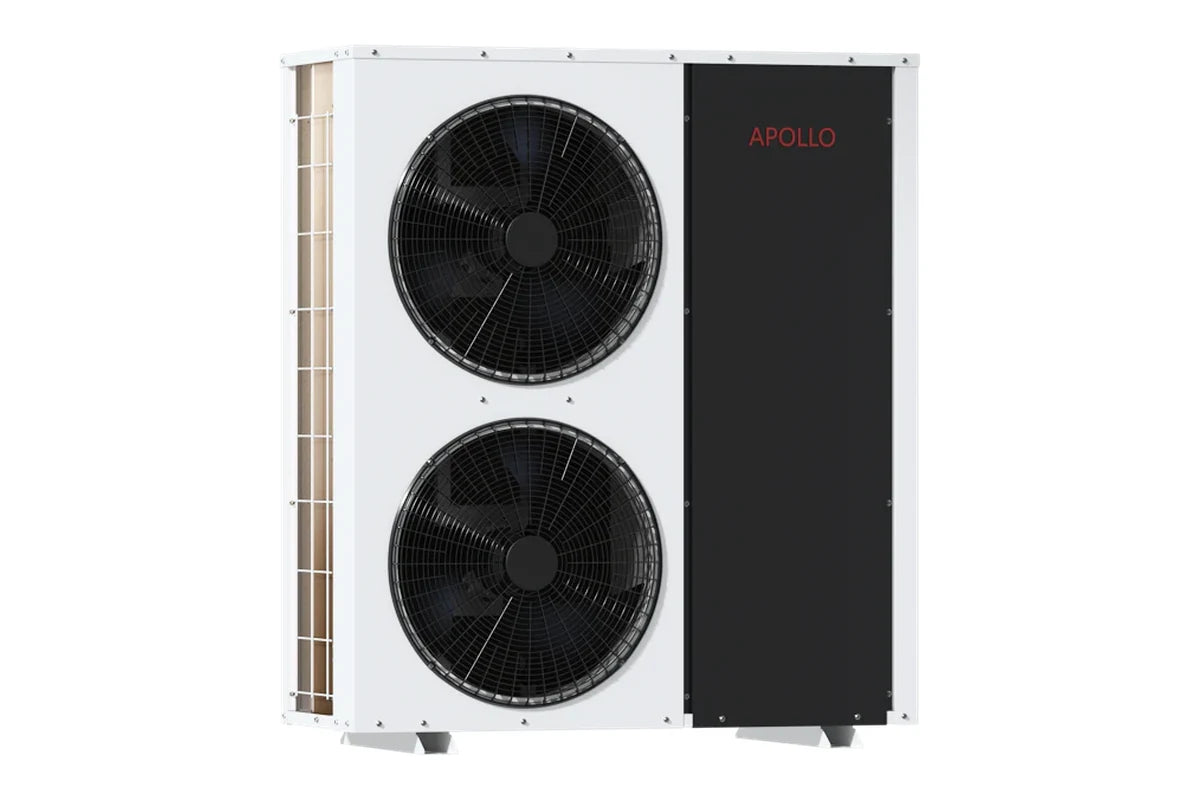

Air-to-water heat pump
The heart of the system
The outdoor unit that makes heating, cooling, and hot water from the air. This station is built for larger systems, up to the 6-ton APOLLO heat pump.
View details
Domestic hot water
Hot water from the same heat pump
A combined buffer and indirect tank lets the heat pump make household hot water, with no separate water heater needed.
View details
Radiant floor distribution
Even heat across every zone
Distributes and balances warm water to each radiant loop so rooms heat evenly and stay easy to control.
View details
Heating & cooling delivery
Fan coils for forced-air comfort
Wall, concealed, ceiling, or floor units heat and cool rooms with the same water. Pick the style that fits each space.
View details
Zone controls
Universal thermostat for fan coil & radiant
One WiFi thermostat runs fan coils or radiant floors and tells the system to work only when there is real demand.
View details

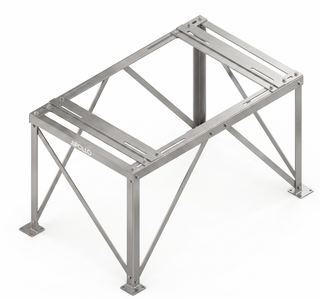

Outdoor mounting
Keep the unit above snow & runoff
A stainless stand raises the outdoor unit for drainage, airflow, and snow clearance in cold climates.
View details
System support
Need help planning the full system?
MBTEK can help match the heat pump, indoor equipment, tanks, controls, and system layout to your project.
Technical specifications
Product-specific specifications for the Apollo Hydro Smart Station.
| Model | Apollo Hydro Smart Station |
|---|---|
| Power Supply / Breaker | 220-240V AC 60 Hz / 80A recommended breaker |
| Full Load Ampacity | 62.5A at 15 kW / 42A at 10 kW / 21A at 5 kW |
| Pump Control | Heat Pump Controlled / External Call |
| Max. Water Pressure | 150 psi |
| Operating Temp. Range | 14°F to 194°F |
| Fluid Compatibility | Water mixed with glycol (minimum 40% propylene glycol) |
| Zoning Capabilities | Zone Controller connection and 2nd load support |
| Dimensions / Weight | 55-1/4" x 48" x 49-1/2" / 400 lbs |
| Backup Heater | 15 kW - 2 stages (5 kW, 10 kW, 15 kW) |
| DHW Heat Exchanger | SS 316L plate, 16.25 ft² |
| Expansion Tank | 7.2 gal |
| Warranty | 5 years, all components |
Product documents
Access the official product documentation below.
Apollo Hydro Smart Station Data Sheet
Full data sheet covering specifications, connections, wiring diagram, and power requirements.
