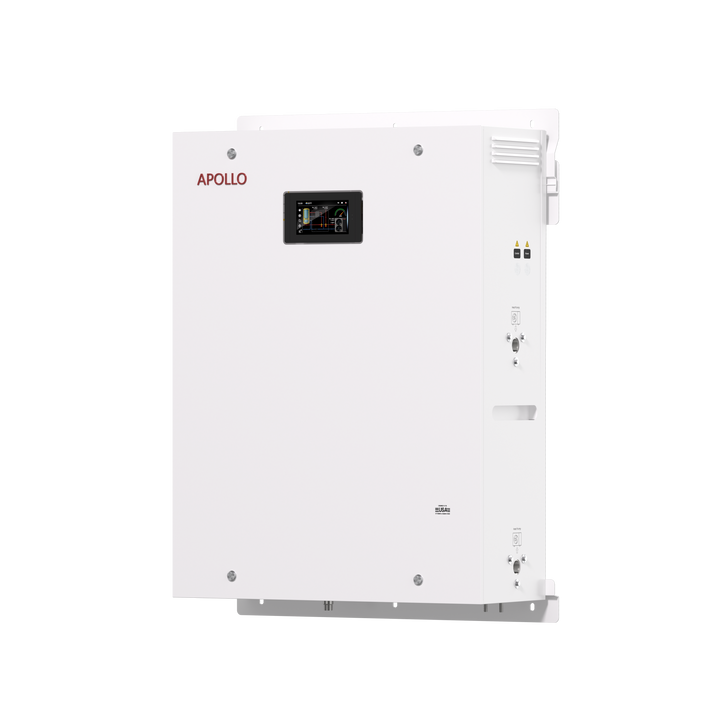

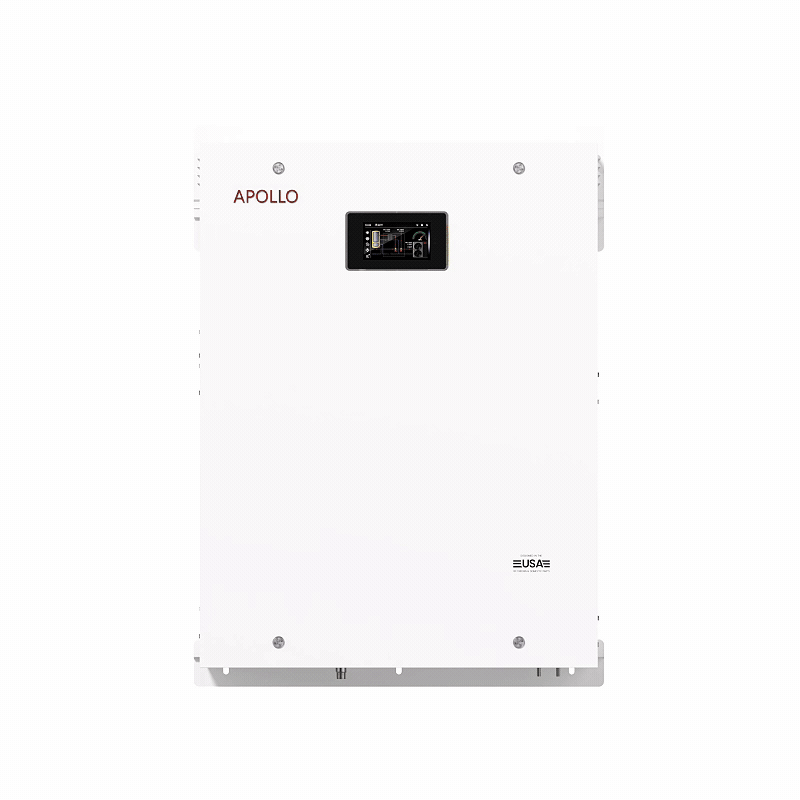

APOLLO Hydro One Station

APOLLO Hydro One Station

$1,999.00

Out of stock
Get a Custom Quote

Protect your system with precision—seamlessly integrate with your Hydro One Station. A must-have with one of our Apollo Heat Pump.

Main Features

  • Automatic Bypass Valve: Pressure protection & buffer tank flow

  • High Efficiency Pump: 20 ft Head / 25 GPM performance

  • One-Touch Pressurization: Glycol system with push-button start

  • Intelligent Control: Real-time data-driven flow adjustments

  • UL/CSA Certified: High-standard materials designed in the USA

  • Eco-Optimized: Maximum energy savings and efficiency

UNITS LEFT IN STOCK or IN THE NEXT ARRIVAL.

People watching this item right now
Features
Reviews/Q&A

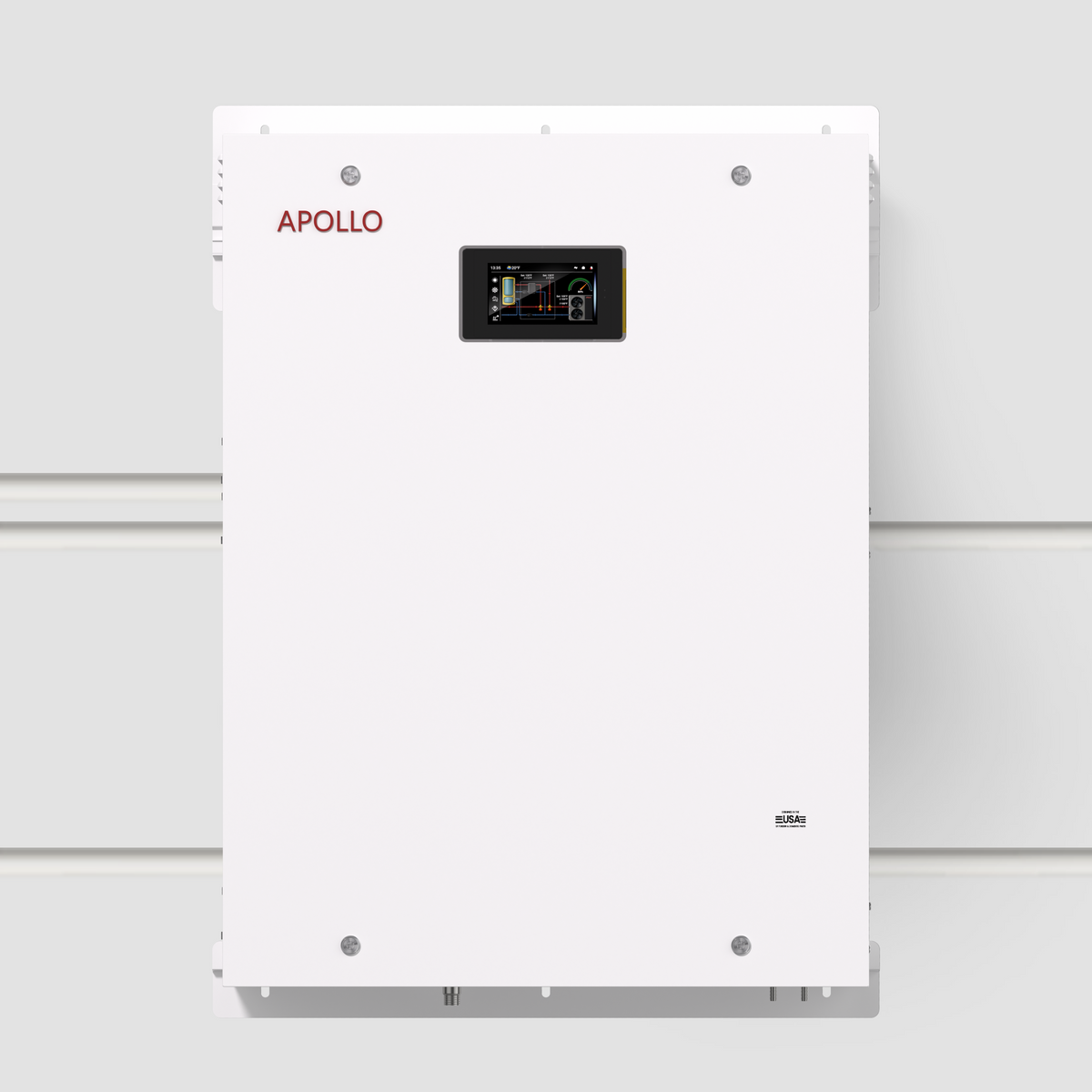

APOLLO Hydro One

Advanced Precision, Effortless Control

Revolutionize your system with intelligent flow management and one-touch pressurization, ensuring peak American-made efficiency and ultimate climate comfort.

New Hydro

Main Features

  • Powerful & Versatile Performance

    Delivers exceptional flow with up to 20 ft of head and a capacity of 25 GPM, ensuring reliable circulation tailored to the specific requirements of your installation site.

  • Certified Safety & Quality

    Built using premium UL/CSA certified materials to guarantee the highest safety standards, long-term durability, and full compliance with North American regulations.

  • American-Engineered Design

    Proudly designed in the USA with a focus on the specific needs of American infrastructure, providing a solution that combines local expertise with heavy-duty performance.

  • Easy Pressurization

    Glycol pressurization system allows you to pressurize your system with just the push of a button.

  • Intelligent Control Capabilities

    Real-time data-driven adjustments ensure optimal water flow and comfort.

  • Energy Efficiency and Savings

    Optimizes consumption to reduce costs while promoting environmental sustainability.

Leakproofing parts + pipe sealing parts
Made in Texas, USA

Intelligent Flow Control

Real-time data-driven technology automatically adjusts water flow to ensure peak performance and consistent home comfort.

One-Touch Pressurization

Simplify maintenance with an integrated glycol system that allows you to pressurize the unit with a single button press.

Total System Protection

An advanced bypass valve and UL/CSA materials safeguard your system against pressure spikes and mechanical wear.

High-Efficiency Engineering

Engineered in the USA with a 25gpm high-efficiency pump to maximize energy savings while reducing environmental impact.

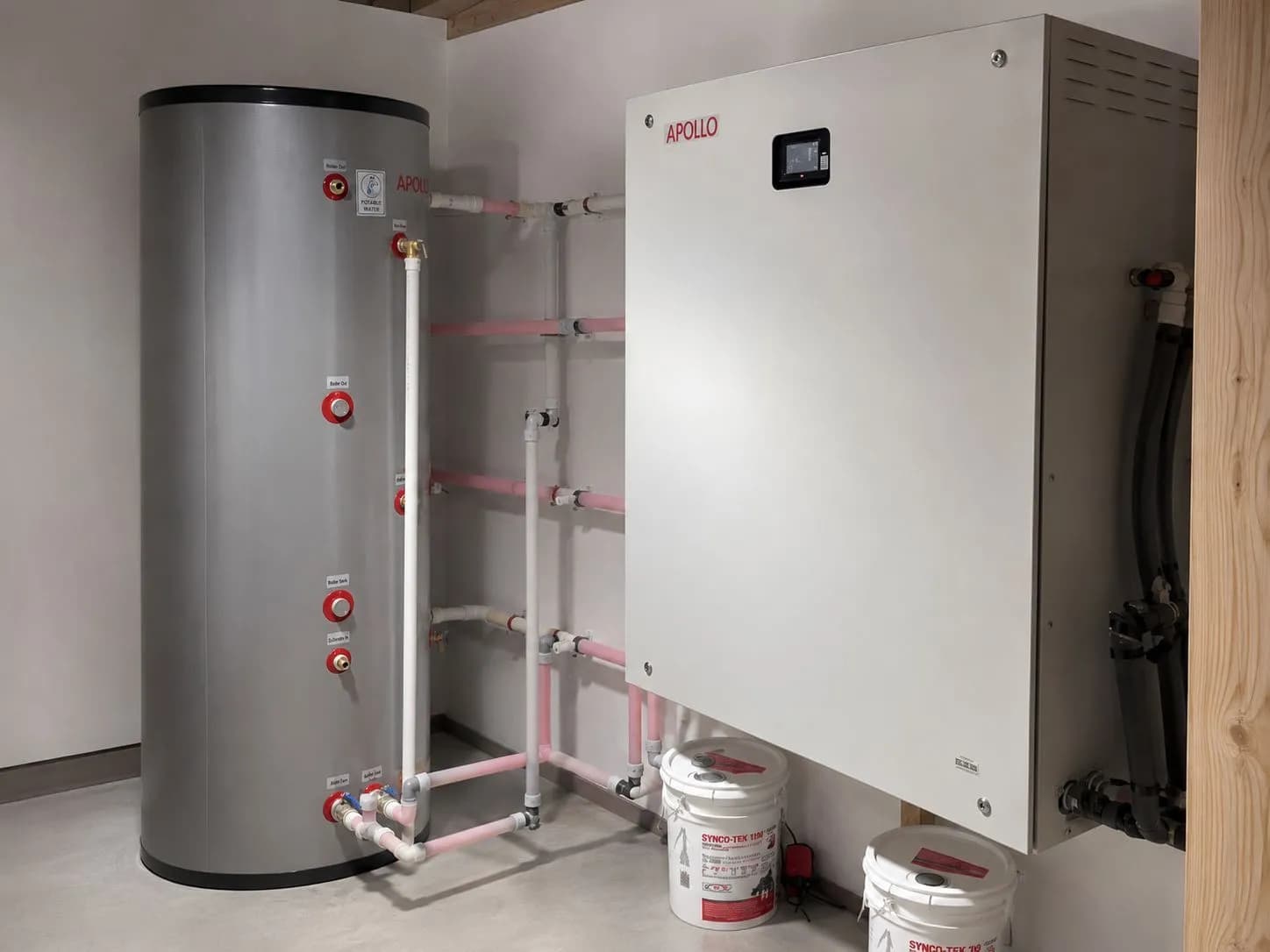

Introducing the new Apollo Hydro Smart Station

The perfect fit for all Apollo series products!

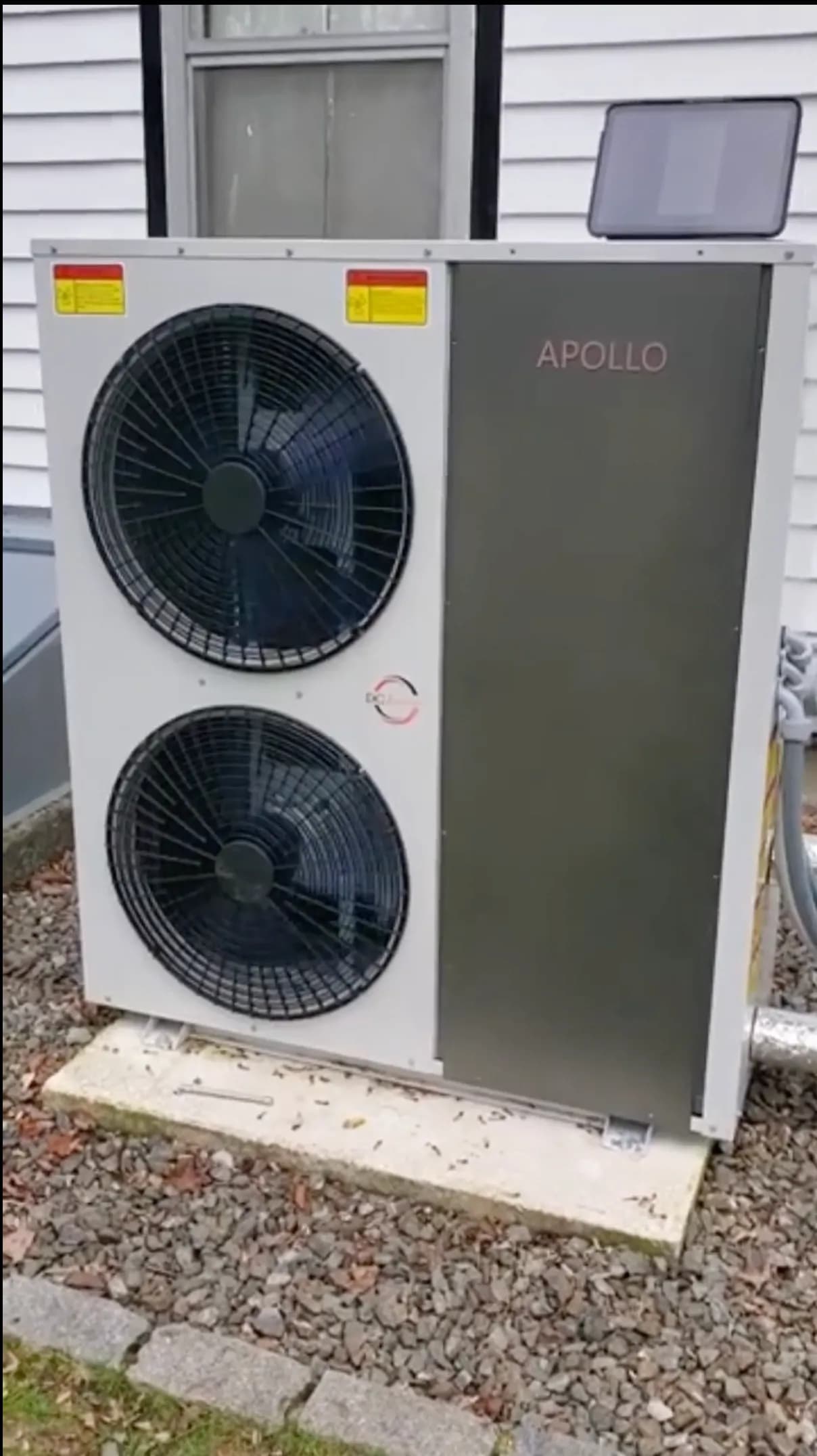

Air-to-Water Heat Pump Supplies heating and hot water needs when linked to the Hydro Smart Station.

Zone Valve Control Box Distributes hot/cold water to different zones in your home with the Hydro Smart Station for customized comfort.

Pex Manifold Central hub for efficient water distribution throughout the system when integrated with the Hydro Smart Station.

Fan Coil Units (FCUs) Facilitates efficient heat/cold transfer between water and air when combined with the Hydro Smart Station

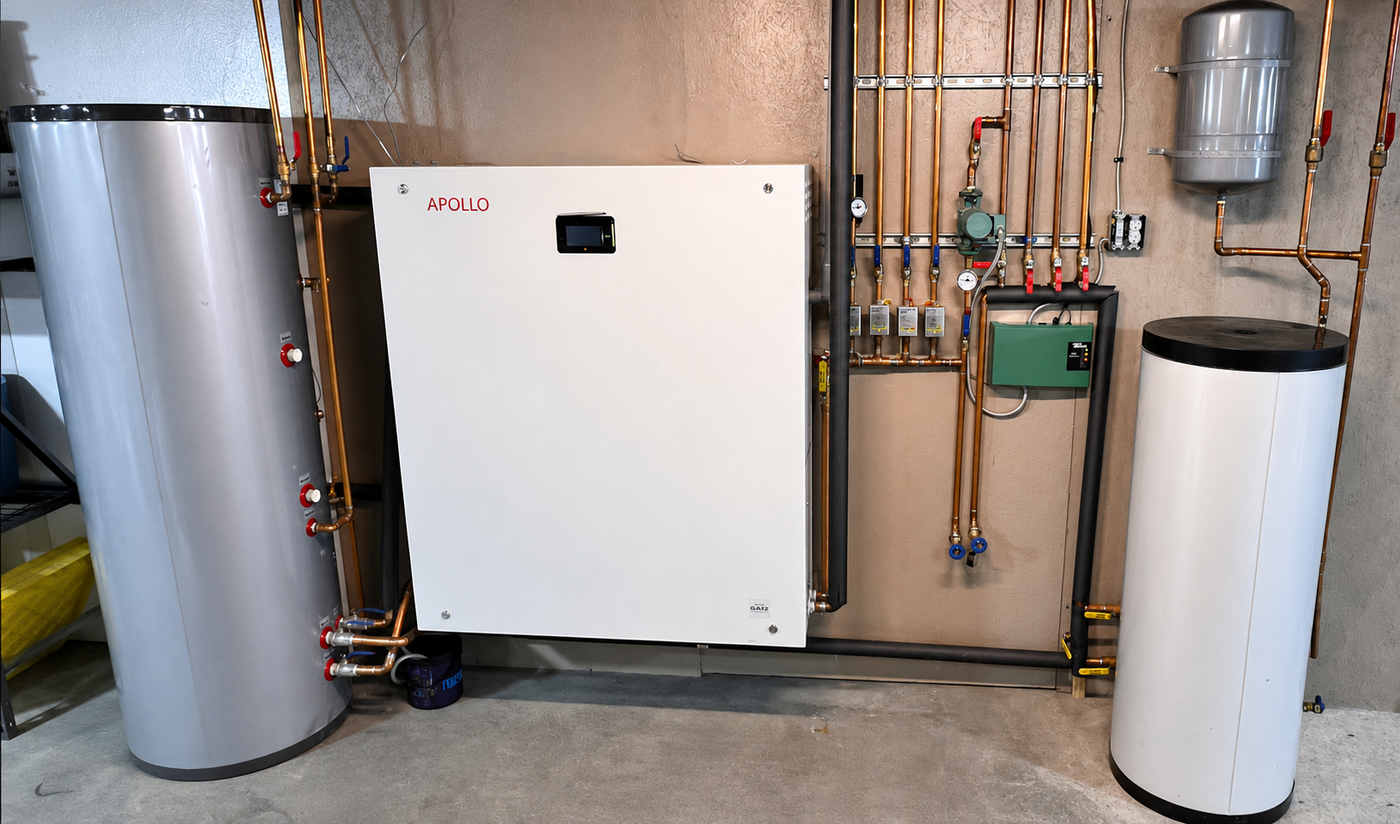

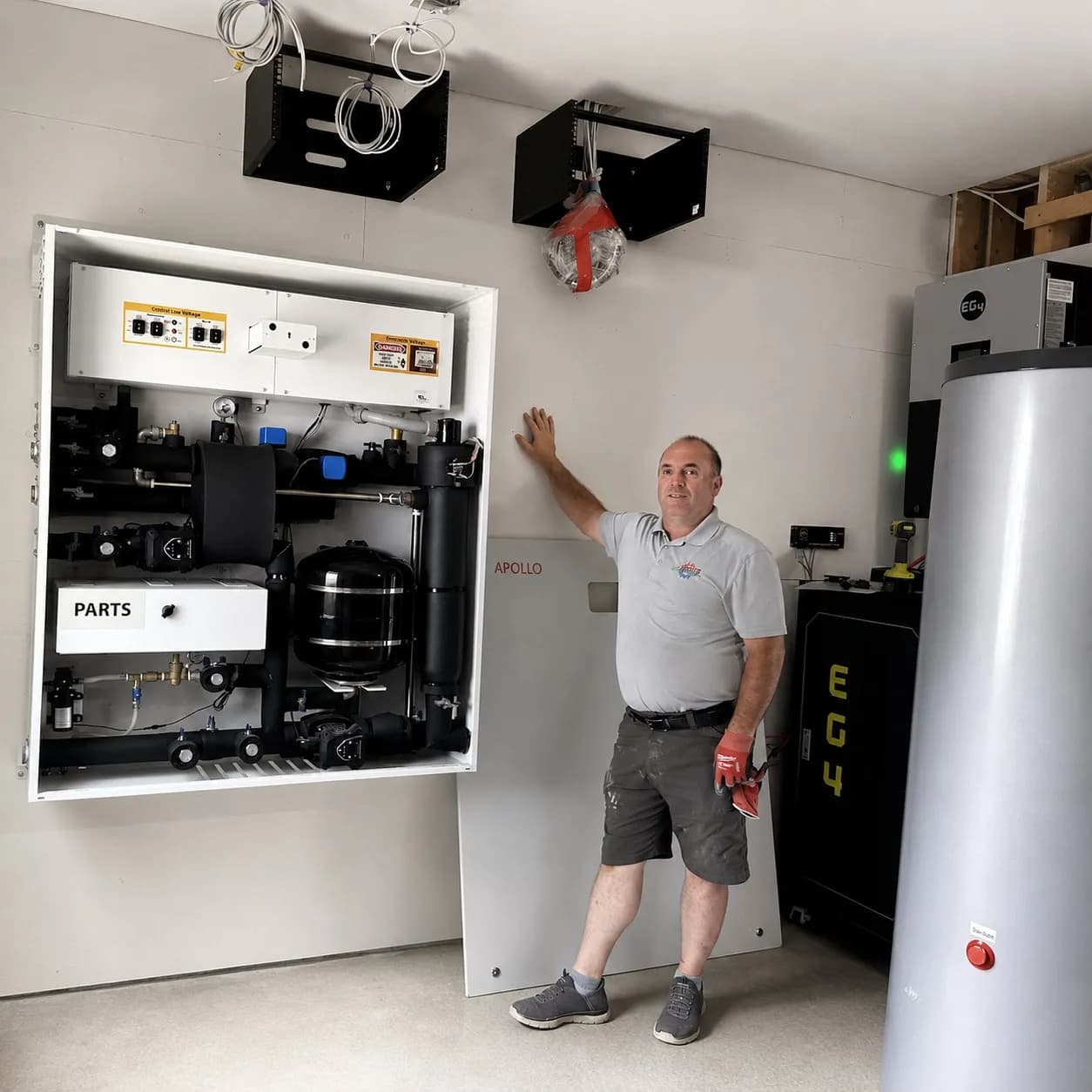

  • I've been using the Heat Pump Station for over a year now, and I am happier with my purchase. With this, I got my whole system up and running in no time.
    ★★★★★

    Raquel,

    A Happy Customer

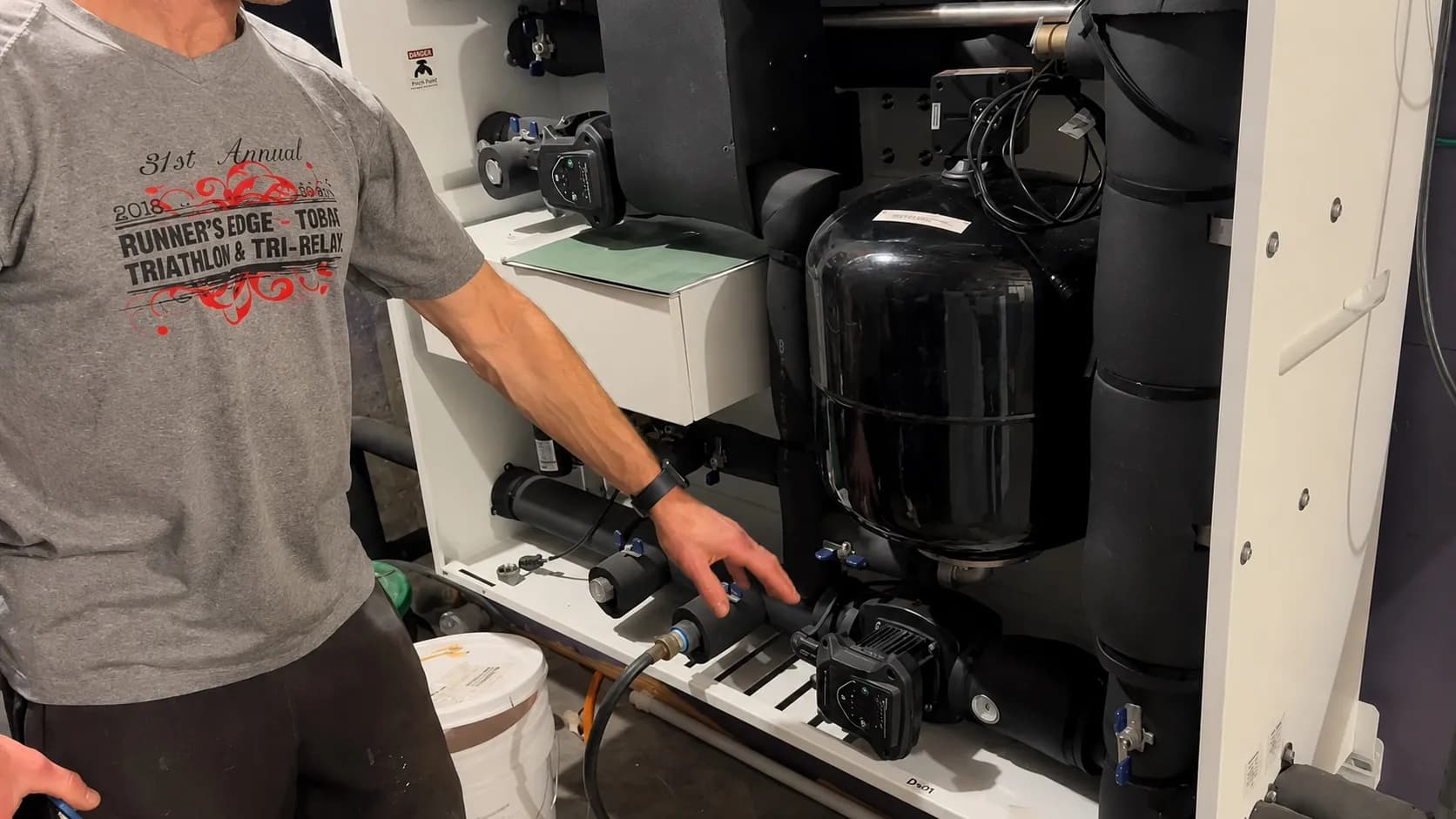

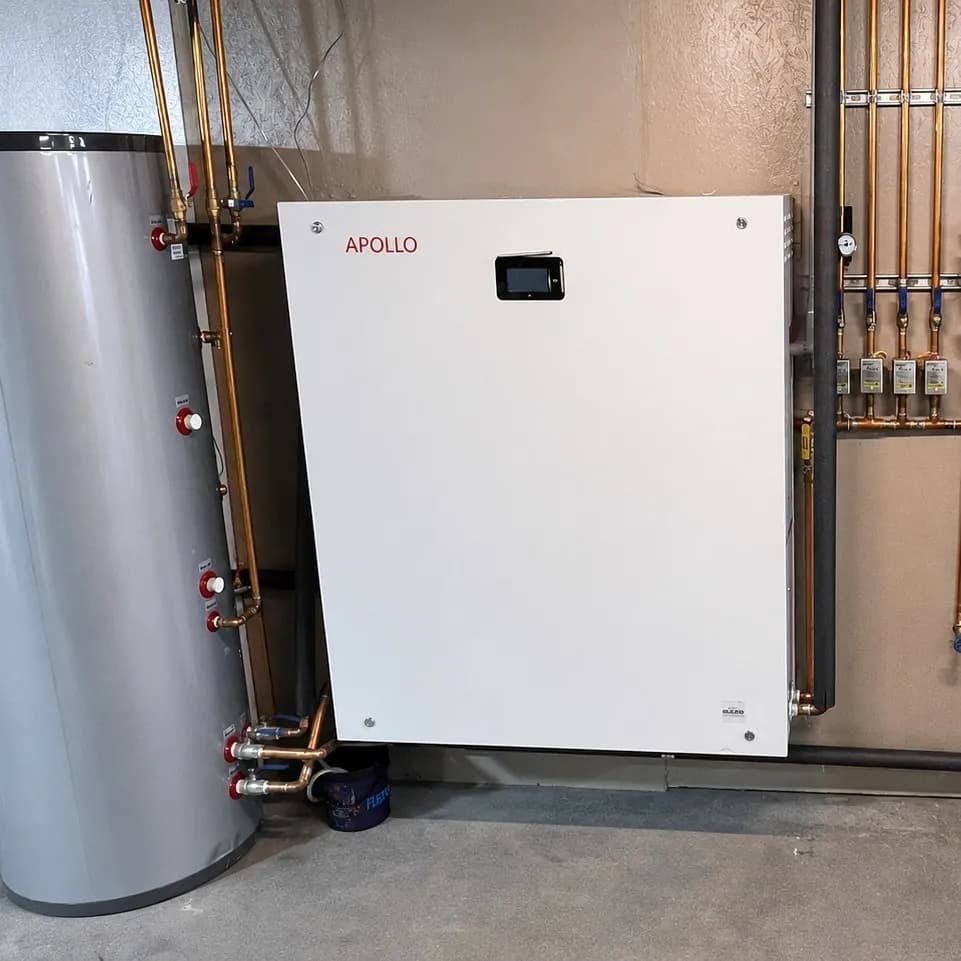

  • Plumbing in unit nice and clean. Nice quality parts. Makes it very simple to hook up [the] unit. Would recommend it for new or retrofit installs.
    ★★★★★

    J.H.,

    A Happy Customer

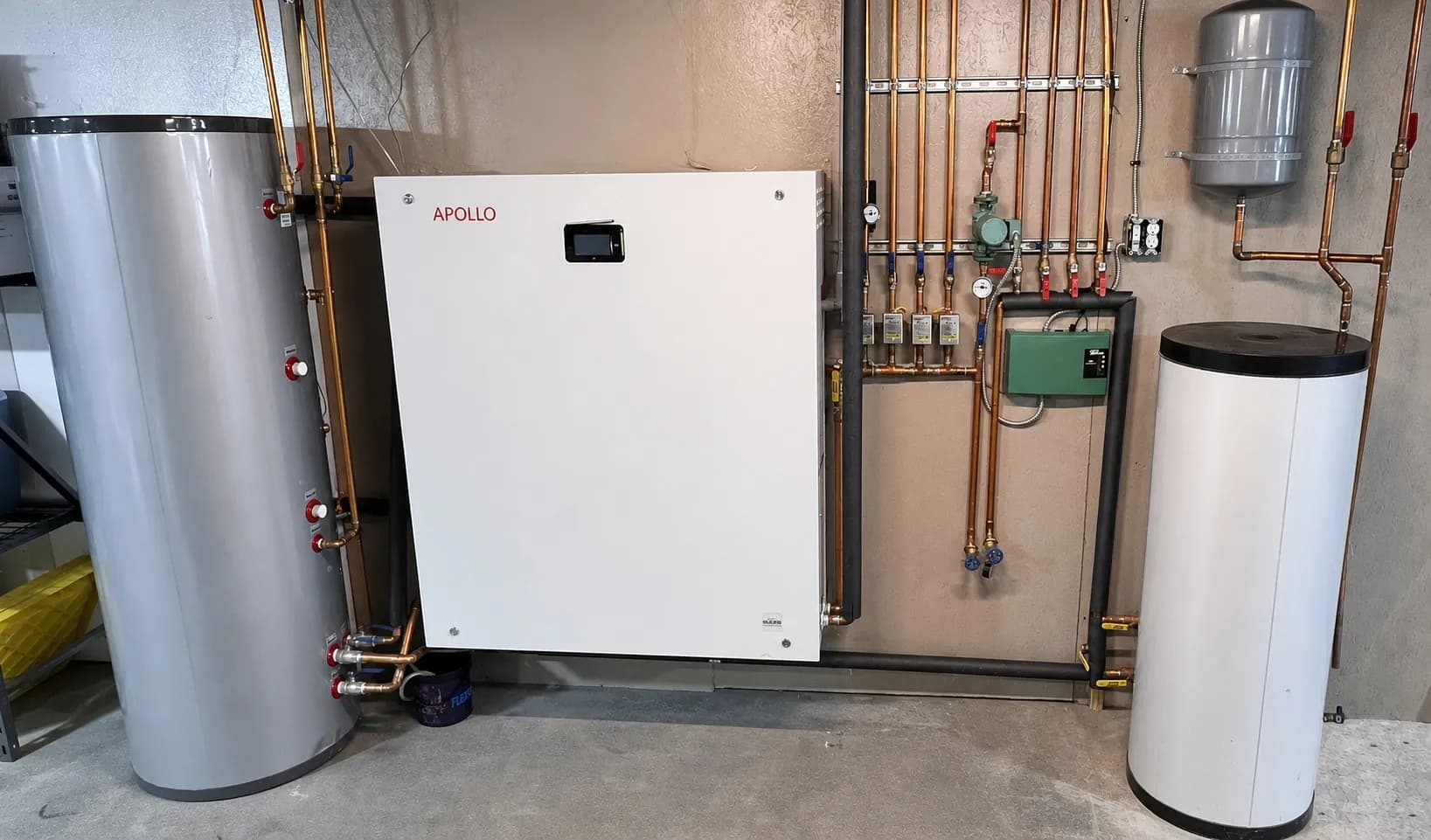

  • I am extremely happy with this all in one solution (...). The components are well placed and of good quality. The station looks good and really cleans up the plumbing installation.
    ★★★★★

    Scott,

    A Happy Customer

Frequently asked questions

Where can I find a dealer?

You can speak directly with one of our sales agents via phone, email or text message for more information.

Who will install my heat pump?

Mbtek does not complete the installation. Any HVAC professional will be able to install your purchase. If you require assistance finding one, we are here to help.

Find Installer

Where can I find parts?

Here We have spare parts ready to ship the following business day.

When will I receive my unit?

As soon as the unit is in stock, we will book the shipment following business day. The availability (or ETA) of a specific unit is mentioned on the top of each product page. Depending on your location, delivery can take anywhere from 3 to 12 days

Do I have to pay customs fees if my unit is coming from another country?

No. We take responsibility for these charges.

Are your products shipped in the U.S. or Canada?

It varies for each product. However, we have warehouses in Pennsylvania (U.S.), Alberta (CAN), and Quebec (CAN).

What is the product warranty?

The compressor includes a 5-year warranty.

Need an installer?

We made it easy for you.

Please note that listed installers are independent contractors and not employees of MBTek.
They are skilled professionals familiar with our products and capable of efficient installation.

Any Questions?

Reach out to us

Technical Specifications

Basic Information:

Feature Specification
Model SPM-A Series (e.g., SPM25-6-130A)
Inlet / Outlet Diameter 1" (25mm)
Max. Head 6 meters
Max. Flow Rate 44 GPM (approx. 3.2 m³/h)
Energy Efficiency Index (EEI) ≤ 0.20
Voltage / Frequency 230V, 50/60Hz
Power Consumption 4W - 65W
Max. System Pressure 10 bar (1.0 MPa)
Liquid Temperature Range +2ºC to +110ºC (+35.6ºF to +230ºF)
Ambient Temperature 0ºC to +40ºC
Insulation Class F
Motor Type High-efficiency ECM (Permanent Magnet)
Control Signal PWM (External control available)
Operating Modes AUTO, Proportional Pressure, Constant Pressure, Constant Speed, Night Setback

Advanced & Auxiliary Technical Specifications:

Category Technical Feature Detailed Specification / Requirement
Regulatory Compliance Energy Efficiency ErP Directive (2009/125/EC)
Environmental Standards RoHS II Directive (2011/65/EU)
Wiring Configuration Power Cable (3-core) Brown: Live (L) / Blue: Neutral (N) / Yellow-Green: Earth (PE)
PWM Signal Cable Black: GND / Red: Signal Input / Yellow: Signal Output
Cavitation Prevention Min. Intake @ 85ºC 0.5 meters (0.049 bar)
Min. Intake @ 90ºC 2.8 meters (0.27 bar)
Min. Intake @ 110ºC 11.0 meters (1.08 bar)
Internal Construction Rotor Assembly Permanent magnet rotor with stainless steel can assembly
Sealing System High-resistance control box sealing with flat gaskets
Control Unit Integrated PCB with frequency conversion electronics
Operational Safety Electronic Protection Locked-rotor protection and dry-run resistance
Voltage Faults Automatic Overvoltage and Undervoltage shutdown
Installation Limits Installation Orientation Motor shaft must be strictly horizontal
Media Compatibility Pure water only (not for medical or chemical use)
Scalability Thermal Capacity (Single) Suitable for systems up to 40KW
Thermal Capacity (Series) Suitable for systems up to 95KW (2x Pumps)
