PHOENIX 18, Compact Pellet Boiler, 61K BTU
PHOENIX 18, Compact Pellet Boiler, 61K BTU
PHOENIX 18, Compact Pellet Boiler, 61K BTU
PHOENIX 18, Compact Pellet Boiler, 61K BTU
PHOENIX 18, Compact Pellet Boiler, 61K BTU
PHOENIX 18, Compact Pellet Boiler, 61K BTU
PHOENIX 18, Compact Pellet Boiler, 61K BTU
PHOENIX 18, Compact Pellet Boiler, 61K BTU
PHOENIX 18, Compact Pellet Boiler, 61K BTU
PHOENIX 18, Compact Pellet Boiler, 61K BTU
PHOENIX 18, Compact Pellet Boiler, 61K BTU
PHOENIX 18, Compact Pellet Boiler, 61K BTU
PHOENIX 18, Compact Pellet Boiler, 61K BTU

PHOENIX 18, Compact Pellet Boiler, 61K BTU

$6,155.33

  • Heat: 2500 ft²
  • Weight: 706 lbs
  • Width: 24 ¾''
  • Depth: 25 ¼''
  • Height: 57  ¾''
  • Hopper volume: 200Lbs
  • Made in Europe
  • Standards: CSA/B415.1-10 & CSA/B-366.1-11
OUR MOST EFFICIENT AND TECHNOLOGICALLY ADVANCED UNIT TO THIS DATE. UP TO 96% EFFICIENCY

Guaranteed safe checkout

  • USA/CAN Shipping
  • 30 Day Return
  • Active Support
  • Since 2008
  • Up to 96% EfficiencyOur most technologically advanced boiler for maximum pellet savings.
  • Powerful Heating Output61K BTU capacity easily provides reliable heat for up to 2,500 ft².
  • Massive 200 lb HopperExtra-large built-in pellet storage means fewer manual refills.
  • Compact, Space-SavingSleek design fits effortlessly into tight utility rooms and basements.
  • Premium European BuildExpertly crafted in Europe and fully CSA certified for safety.

Product details

OUR MOST EFFICIENT AND TECHNOLOGICALLY ADVANCED UNIT TO THIS DATE. UP TO 96% EFFICIENCY

Heat: 2500 ft²
Weight: 706 lbs
Width: 24 ¾'', Depth: 25 ¼'', Height: 57  ¾''
Hopper volume: 200Lbs
Made in Europe





    Power of 61,000 BTU (18 KW) that can heat from 725 ft2 to 2500 ft2.
    The Phoenix boiler is the new generation of high efficiency boilers. With a very high efficiency (up to 96%), it competes with all the major expensive Scandinavian brands for a fraction of the price, at least half the price of the latter. Compare, you will see.

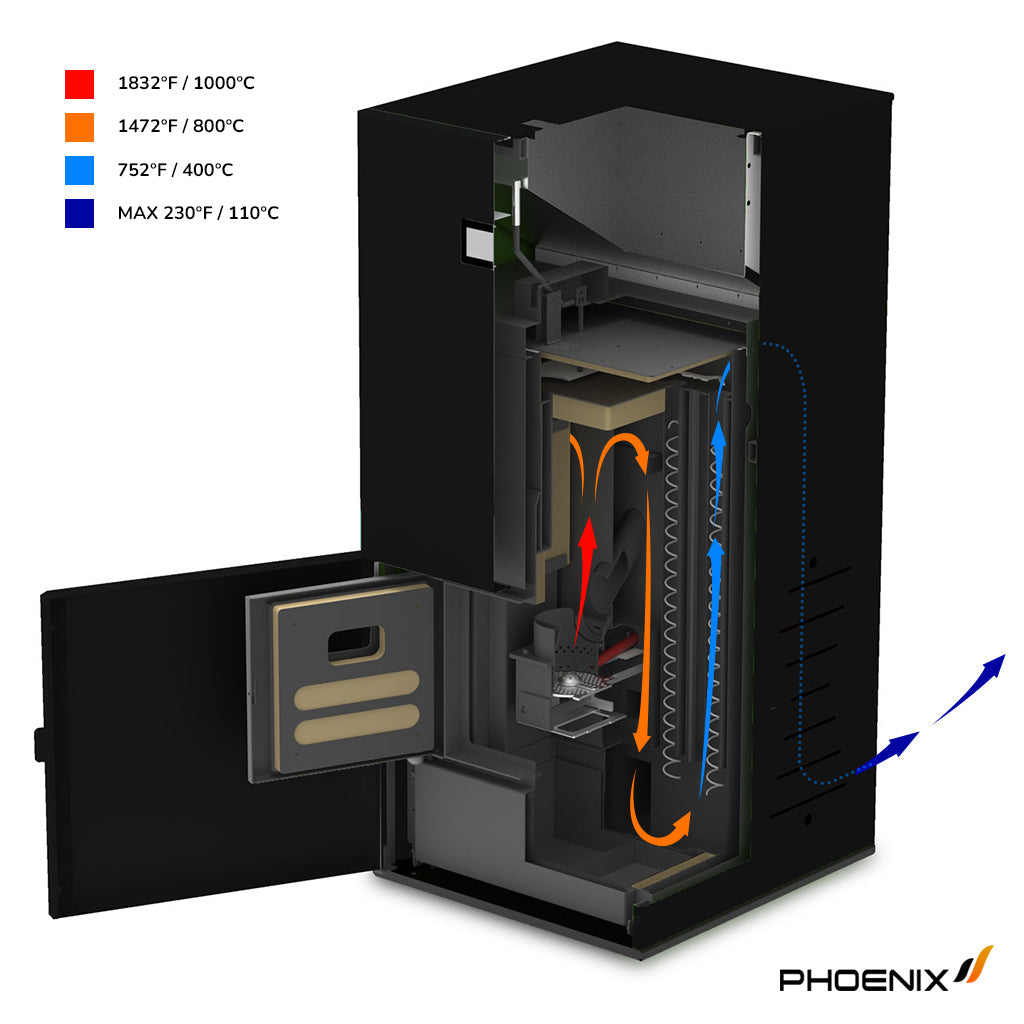

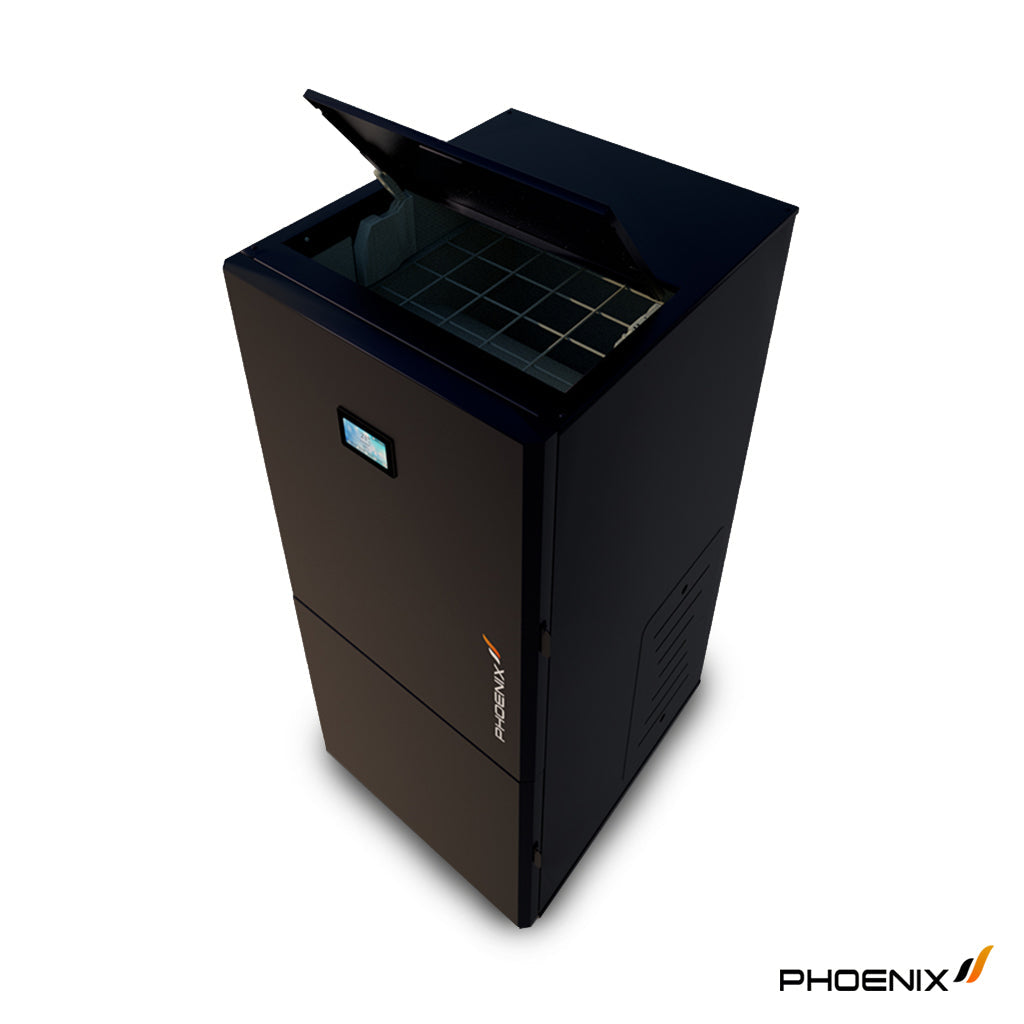

    Unlike most pellet boilers, the Phoenix unit is extremely compact because its pellet tank is built directly on the heat exchanger, all in a single frame (mono-block). Added to this is its high performance multi-pass tubular heat exchange system (16 tubes in total), it allows installation in tight spaces.

    Thanks to the integrated self-cleaning system, maintenance is minimal. All you have to do is empty the ash pan once or twice a month (about 5 minutes) and the cleaning is done.

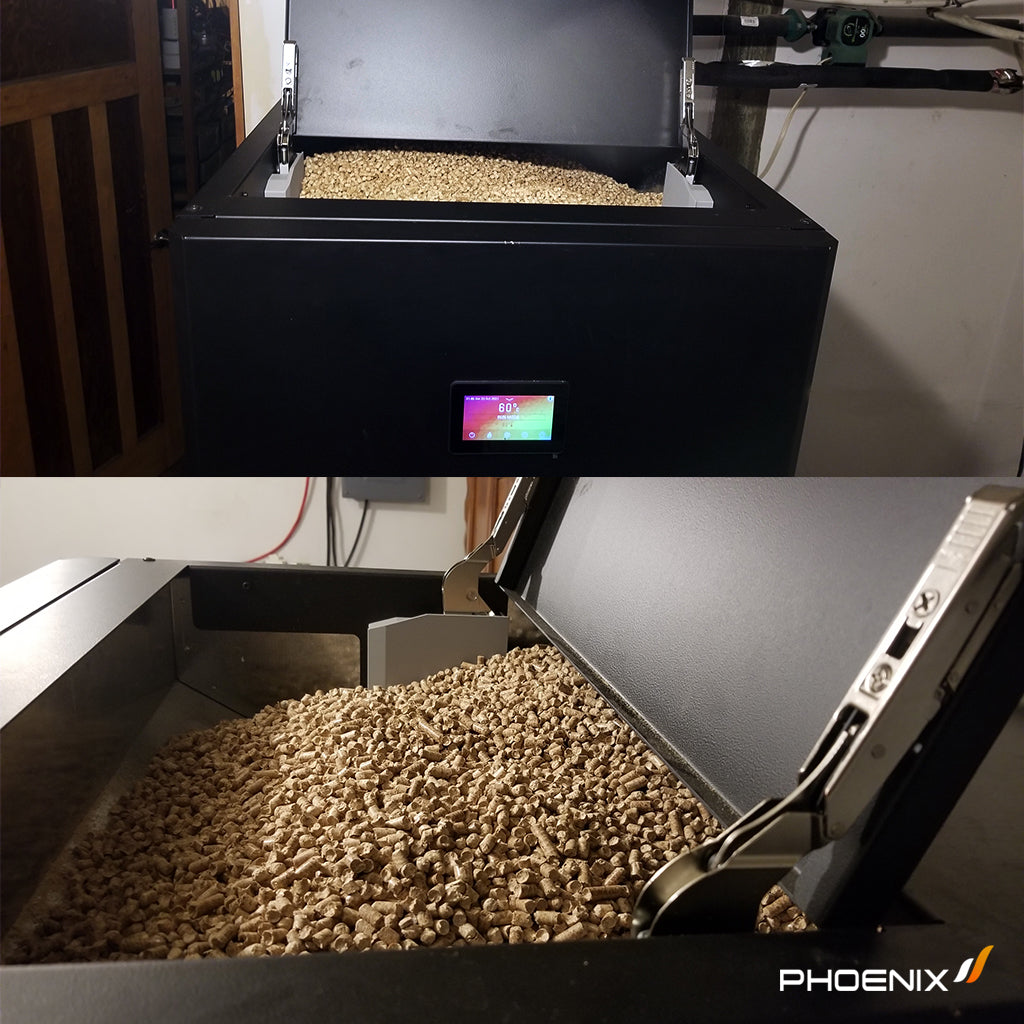

    It can contain 5 bags of pellets (200lbs) for an autonomy of 3 to 10 days (depending on your energy demand). It is entirely programmable and lets you decide when it is on or off.

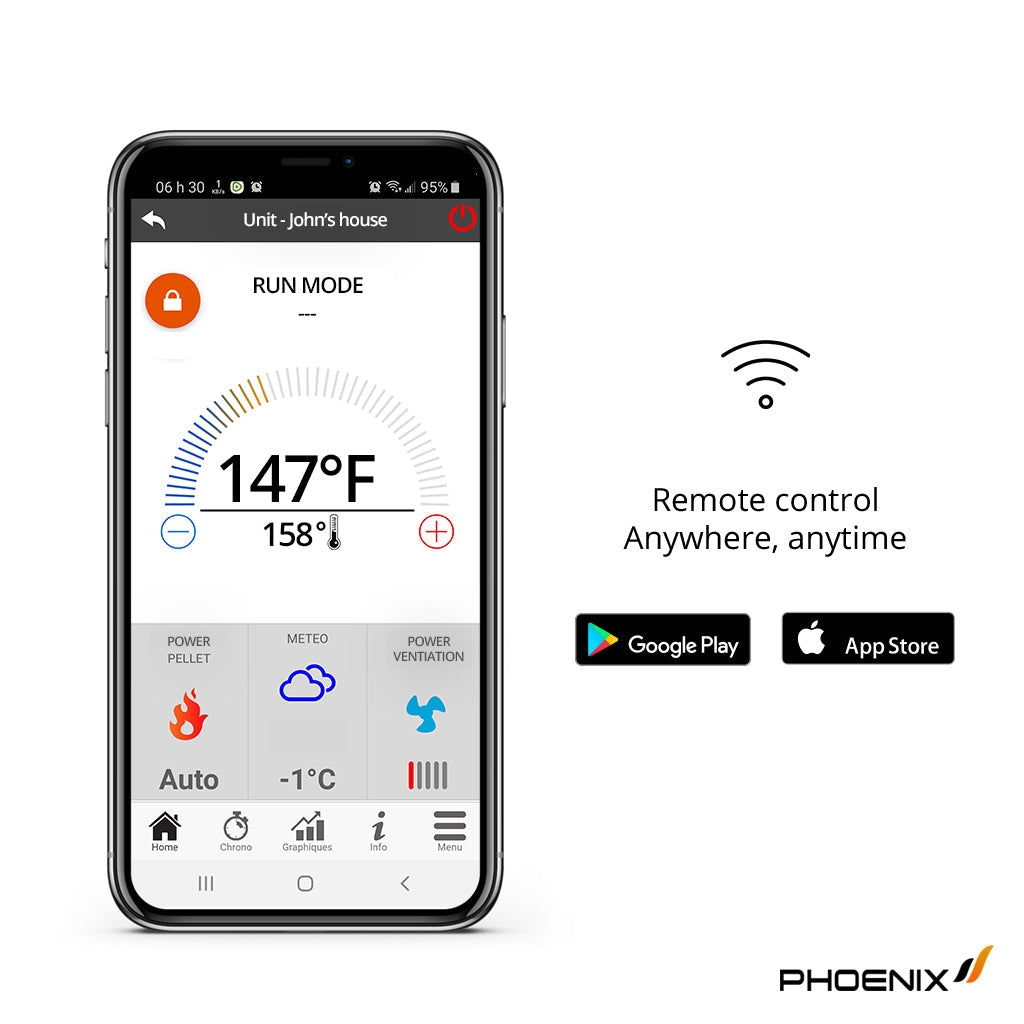

    Leave with peace of mind with its remote control module: You can consult and modify the parameters of your unit at any time (anywhere) from the Android/Apple application on your smartphone.

    This boiler meets North American environmental requirements. Thanks to its innovative technology, such as the 5-speed automatic fuel modulation, this product achieves very high efficiency and low CO emissions are released into the atmosphere (< 300mg/m3).

    The ISO-9001 manufacturing process for our boilers is fully automated (welding, cutting, painting, etc.) thus reducing the risk of manufacturing defects to a minimum. Each unit is tested twice before being placed on the market (vacuum pressure test and water test). The success of this design has already been proven in more than 18 European countries. An efficient machine that works for a long time.

    The product is covered by a two-year warranty on parts.

    Whether you heat your home, workshop and/or garage, this boiler will meet your needs and your budget. Heating with wood pellets, a smart choice.



    Best used with: Boiler Station: All-in-one Solution, provides a circulation pump, a thermometer, a Boiler Protection Valve, and Insulation



    AVAILABLE PARTS CAN BE FOUND HERE



    Ask our clients

    Customer Success Stories

    Quote Icon

    Hey, my name is Eric from Michigan with my MBTE 50 Phoenix boiler. This is the 170K unit. I'm using this for in-floor heat in my Barnuminium, which is a 3,000 square foot home here in Michigan, which gets down to 5 degrees. And this just keeps up with my home. It does no problem heating a big two-story 3,000 square foot home. I love it. If you're looking to be off-grid, this is a good option for you.

    Keeps my home warm with no problem, even at 5 degrees

    Hear how Eric from Michigan heats his 3,000 sq. ft. Barndominium and why the MBTE 50 Phoenix is the ultimate off-grid choice.

    Keeps my home warm with no problem, even at 5 degrees

    Keeps my home warm with no problem, even at 5 degrees

    Features
    Specs
    Reviews/Q&A
    Manual

    PHOENIX Compact Pellet Boiler

    • High Efficiency

      86% efficiency with pure wood pellets.

    • Eco-Friendly

      Uses 100% natural wood pellets without additives.

    • Durable Construction

      Robust steel water jacket for long-lasting performance.

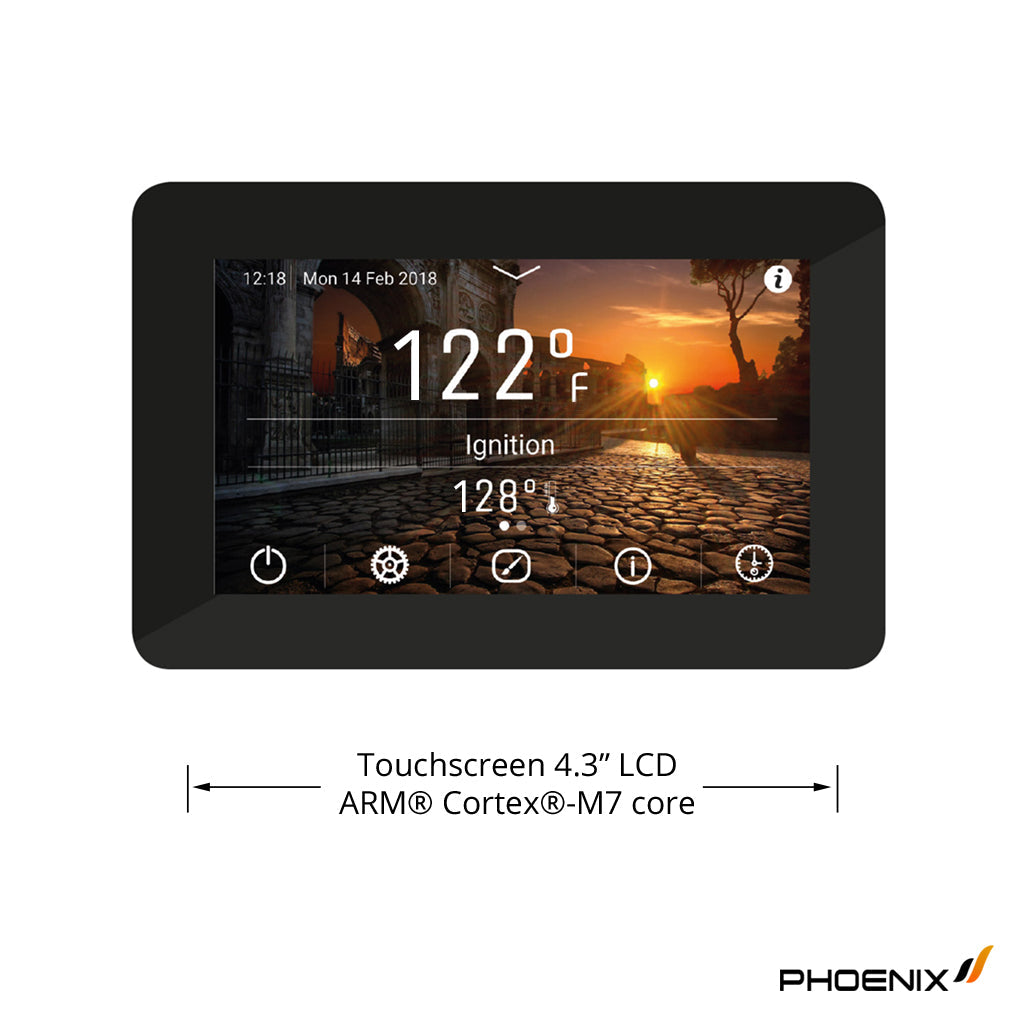

    • Easy to Use

      Touchscreen interface for simple operation.

    • Self-Cleaning

      Automatic cleaning for efficient maintenance.

    • Safe Operation

      Adheres to safety standards for reliable heating.

    High Efficiency

    With an impressive energy conversion efficiency exceeding 96%, Phoenix wood pellet boilers significantly reduce fuel consumption and carbon emissions, making them a cost-effective and environmentally friendly heating solution.

    Versatile Heating

    Capable of heating various spaces, from homes to commercial buildings, these boilers maintain water temperatures up to 90°C/194°F and operate at pressures up to 0.10 MPa/15 Psi, ensuring optimal performance in diverse environments.

    Safety First

    Equipped with multiple safety features, including automatic shut-off mechanisms, these boilers require professional installation to adhere to safety regulations, minimizing fire risks.

    Eco-Friendly Fuel

    Utilizing 100% natural wood pellets with low ash content, these boilers contribute to a cleaner environment and sustainable heating practices.

    Customer video reviews

    • It is wonderful, we finally made it work. I have to say that Allan and Jesus are wonderful.
      ★★★★★

      Jocelyne,

      A Happy Customer
    • The quality is very impressive! Don't over pay for other brands. Allen, Jesus and the MBtek team are very helpful both before and after the sale. Thank you for the great experience guys.
      ★★★★★

      Todd,

      A Happy Customer
    • Product arrived well packed, and undamaged.
      Customer service was great! Very helpful over the phone. Looking forward to doing more business in the future.
      ★★★★★

      Greg,

      A Happy Customer

    Frequently asked questions

    Where can I find a dealer?

    You can speak directly with one of our sales agents via phone, email or text message for more information.

    Who will install my heat pump?

    Mbtek does not complete the installation. Any HVAC professional will be able to install your purchase. If you require assistance finding one, we are here to help.

    Where can I find parts?

    Here We have spare parts ready to ship the following business day.

    When will I receive my unit?

    As soon as the unit is in stock, we will book the shipment following business day. The availability (or ETA) of a specific unit is mentioned on the top of each product page. Depending on your location, delivery can take anywhere from 3 to 12 days

    Do I have to pay customs fees if my unit is coming from another country?

    No. We take responsibility for these charges.

    Are your products shipped in the U.S. or Canada?

    It varies for each product. However, we have warehouses in Pennsylvania (U.S.), Alberta (CAN), and Quebec (CAN).

    What is the product warranty?

    The compressor includes a 5-year warranty.

    Need an installer?

    We made it easy for you.

    Please note that listed installers are independent contractors and not employees of MBTek.
    They are skilled professionals familiar with our products and capable of efficient installation.

    Any Questions?

    Reach out to us

    Technical Specifications

    Basic Information:

    Attribute PHOENIX 18 PHOENIX 35 PHOENIX 50
    Heat 2500 ft² 4500 ft² 6200 ft²
    Weight 706 lb 794 lb 981 lb
    Width 24 ¾" 24 ¾" 32"
    Depth 25 ¼" 25 ¼" 34"
    Height 57 ¾" 59 ½" 63 ¾"
    Hopper volume 200Lbs of pellets 240Lbs of pellets 330Lbs of pellets

    Detailed Information:

    Attribute PHOENIX 18 PHOENIX 35 PHOENIX 50
    Exhaust Gas Pipe 80 mm / 3 in 102 mm / 4 in 102 mm / 4 in
    Air Inlet 60 mm / 2.3 in 76 mm / 3 in 76 mm / 3 in
    Water Jacket Capacity 38 L / 10 Gal 50 L / 13.2 Gal 86 L / 22.7 Gal
    Maximum Water Temperature 90°C / 194°F 90°C / 194°F 90°C / 194°F
    Energy Conversion Efficiency > 96% > 96% > 96%
    Co Emissions < 300 mg/m³ < 300 mg/m³ < 300 mg/m³
    Temperature of Flue Gas ~96°C / 205°F ~90°C / 194°F ~90°C / 194°F
    Minimum Chimney Draft 12 Pa / 0.048 in of water 60 Pa / 0.25 in of water 120 Pa / 0.5 in of water
    Electrical Consumption (Wmin/Wmax) 240V / 60Hz 240V / 60Hz 240V / 60Hz
    Electrical Input Supply (V/Hz) 38 / 10 50 / 13.2 86 / 22.7

    Installation and Safety Information:

    Installation Requirements Must be performed by qualified personnel following local regulations.
    Safety Precautions The boiler should operate with a tightly closed door to prevent combustion risks.
    Chimney Specifications The chimney must be airtight, insulated, and constructed from durable materials.
    Clearances Minimum distances from walls and combustible materials must be maintained.
    Electrical Connections Standard supply is 120V/60Hz, with optional pumps and additional connections as needed.

    Reviews

    Customer Reviews

    Based on 1 review
    100%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    C
    Curtis Clark (Freeville, US)
    Phoenix 18

    Everything arrive safely. Very nice boiler.

    Technical & User Manuals

    This documentation covers many of the topics of interest to end-users and maintenance staff. For any additional inquiries, contact us.

    PHOENIX Compact Peller Boiler, Instruction Manual

    PHOENIX Compact Peller Boiler, Specification Sheet
