OUR MOST EFFICIENT AND TECHNOLOGICALLY ADVANCED UNIT TO THIS DATE. UP TO 96% EFFICIENCY
Heat: 5600 ft²
Controller: 120V Fahrenheit
Weight: 981 lbs
Width: 32'', Depth: 34'', Height: 63 ¾''
Hopper volume: 330Lbs of pellets
Made in Europe
Power of 170,000 BTU (30 KW) that can heat from 1400 ft2 to 5600 ft2.

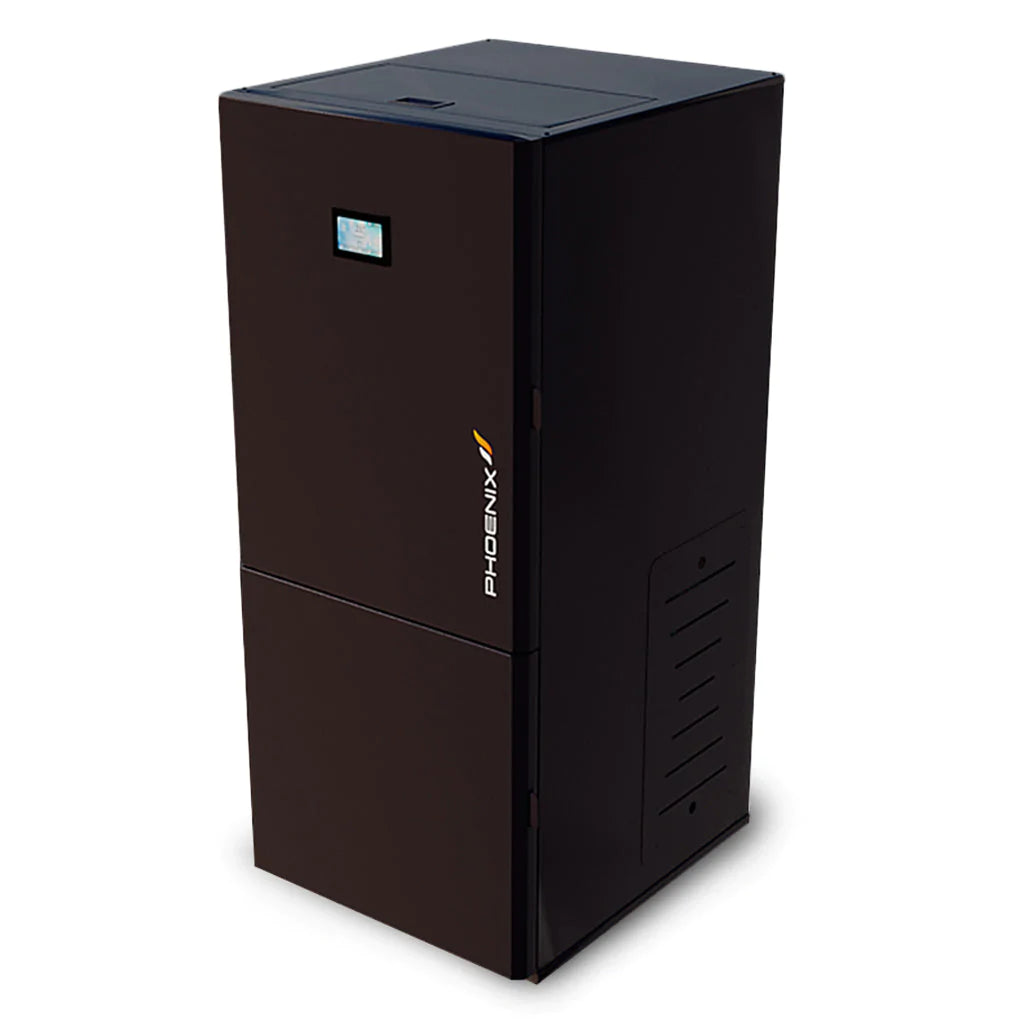

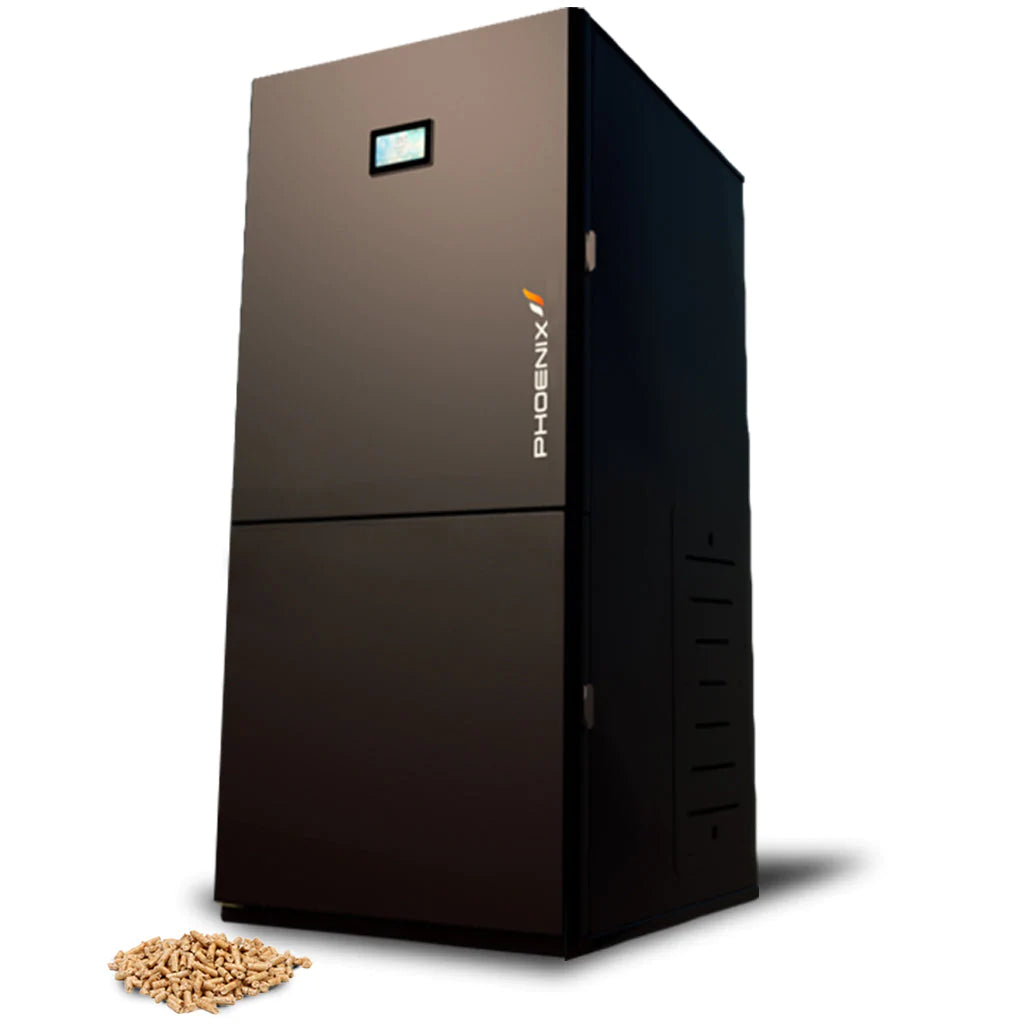

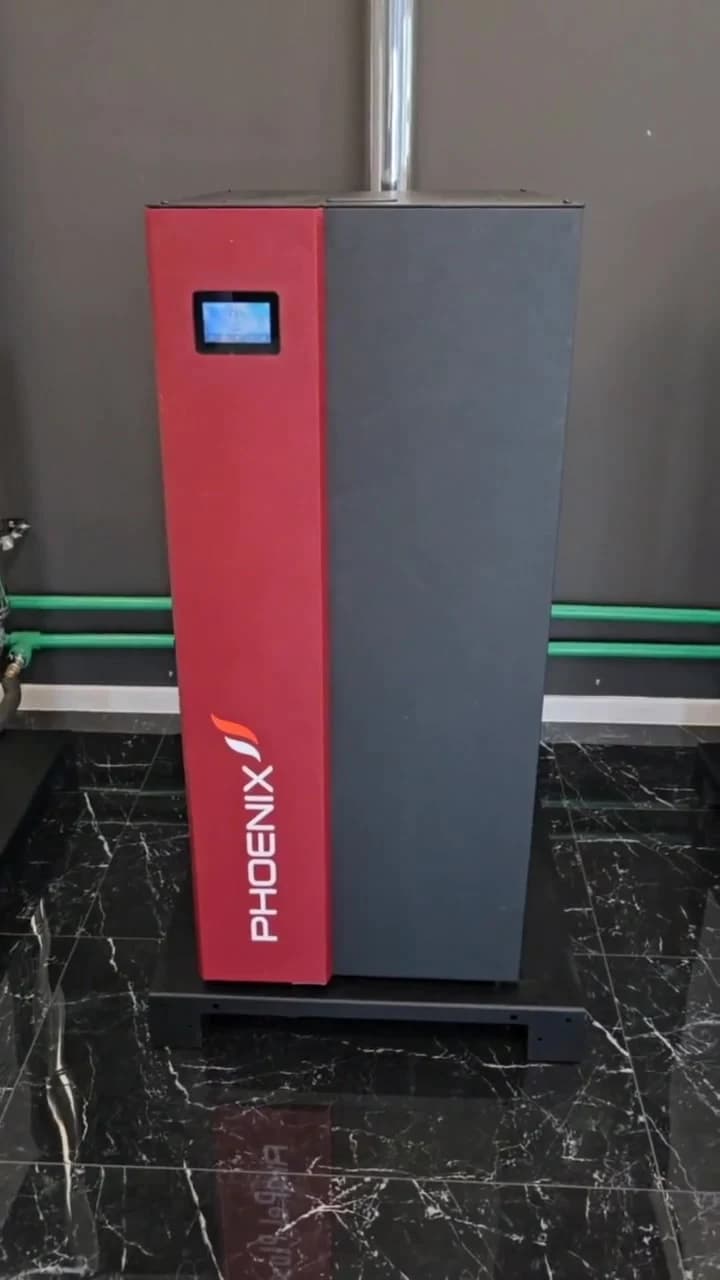

The Phoenix boiler is the new generation of high efficiency boilers. With a very high efficiency (up to 96%), it competes with all the major expensive Scandinavian brands for a fraction of the price, at least half the price of the latter. Compare, you will see.

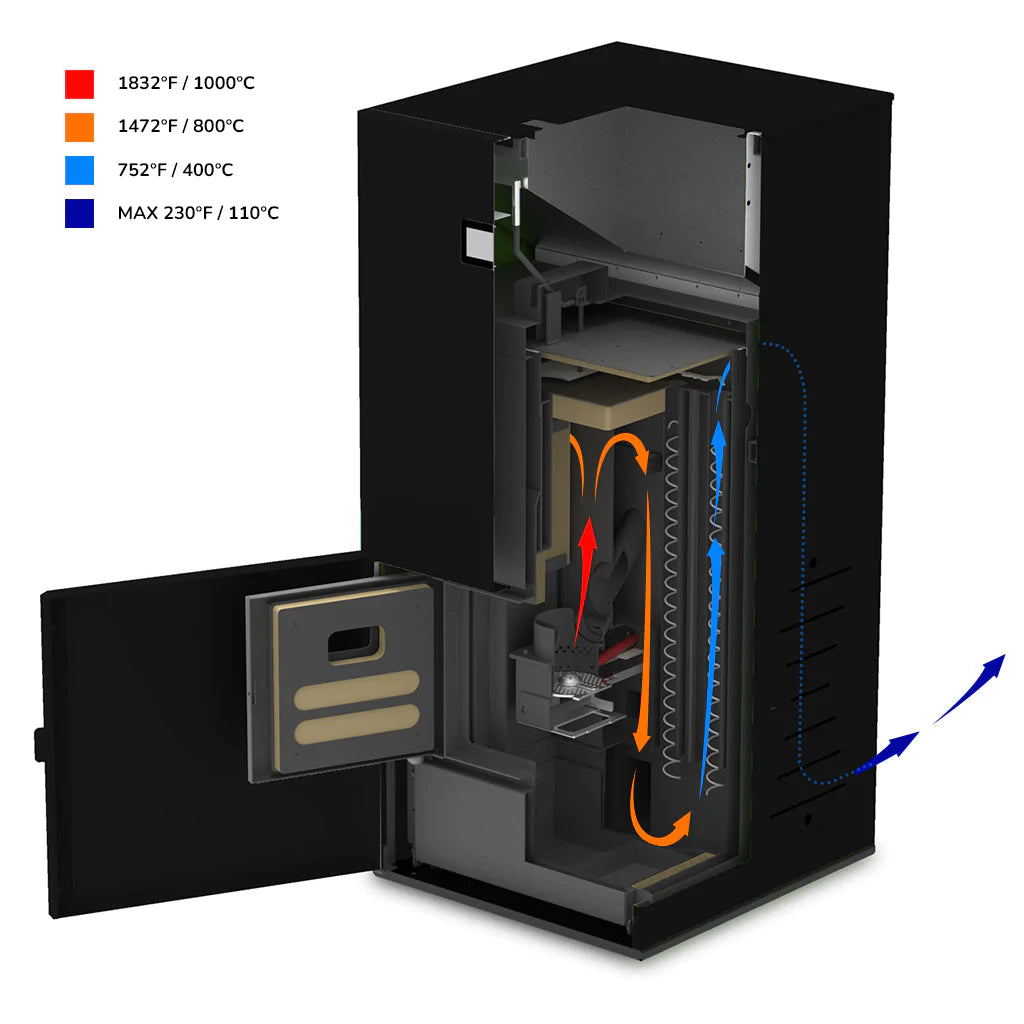

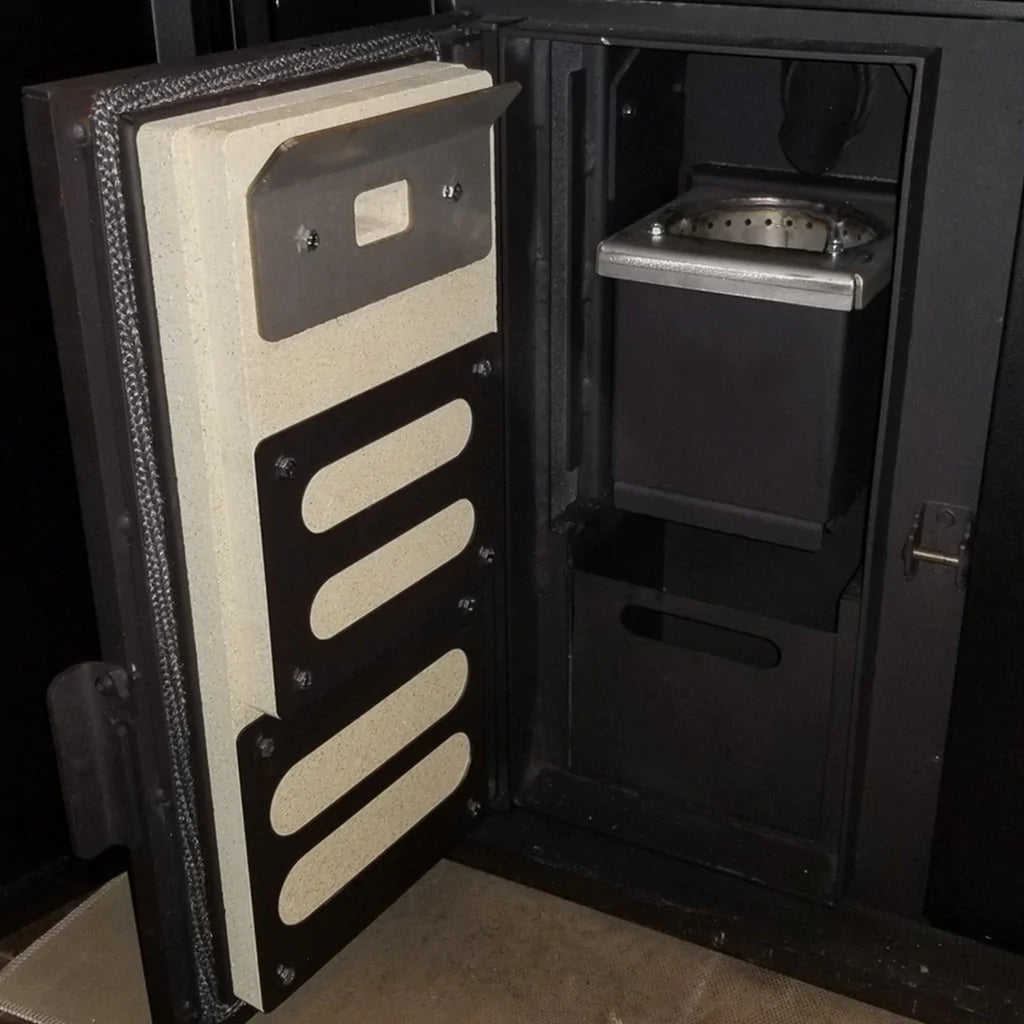

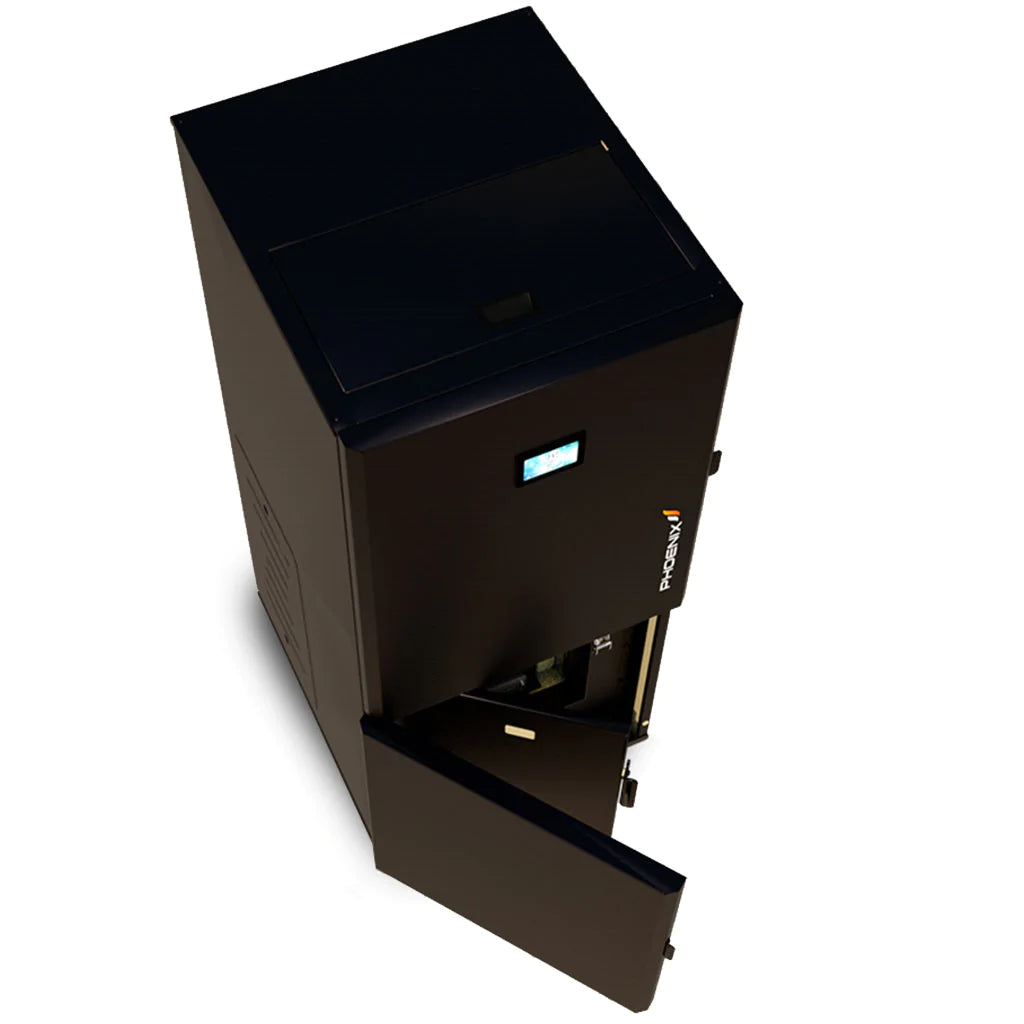

Unlike most pellet boilers, the Phoenix unit is extremely compact because its pellet tank is built directly on the heat exchanger, all in a single frame (mono-block). Added to this is its high performance multi-pass tubular heat exchange system (16 tubes in total), it allows installation in tight spaces.
Thanks to the integrated self-cleaning system, maintenance is minimal. All you have to do is pull ing the exchanger cleaner lever and empty the ash pan once or twice a month (about 5 minutes) and the cleaning is done.

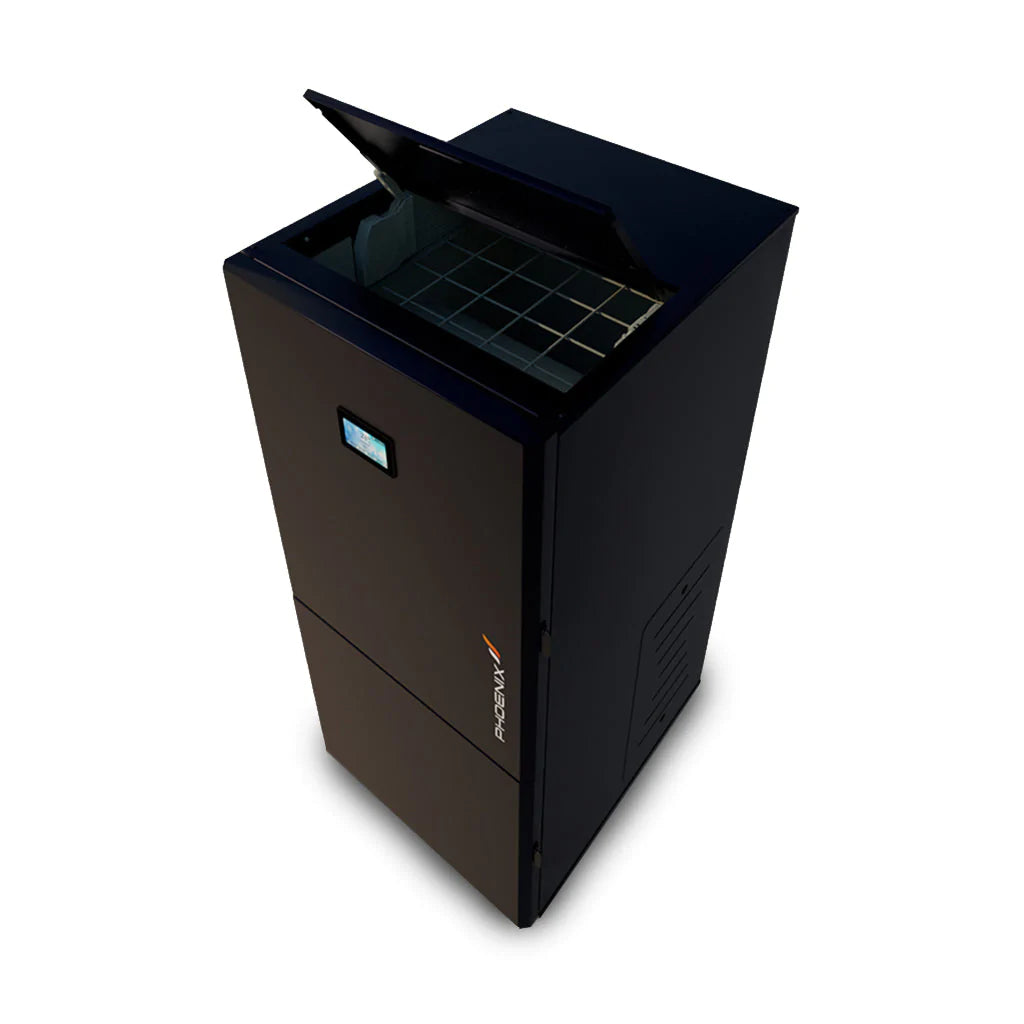

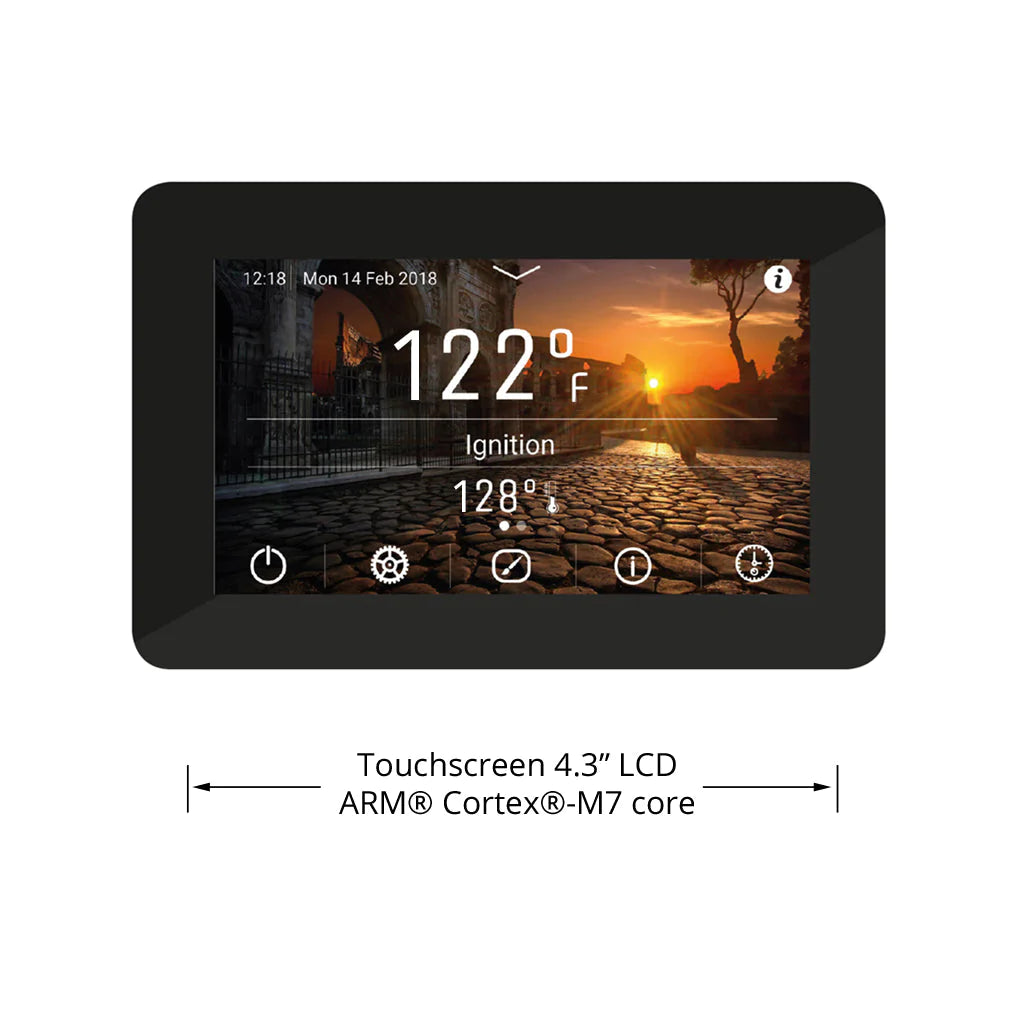

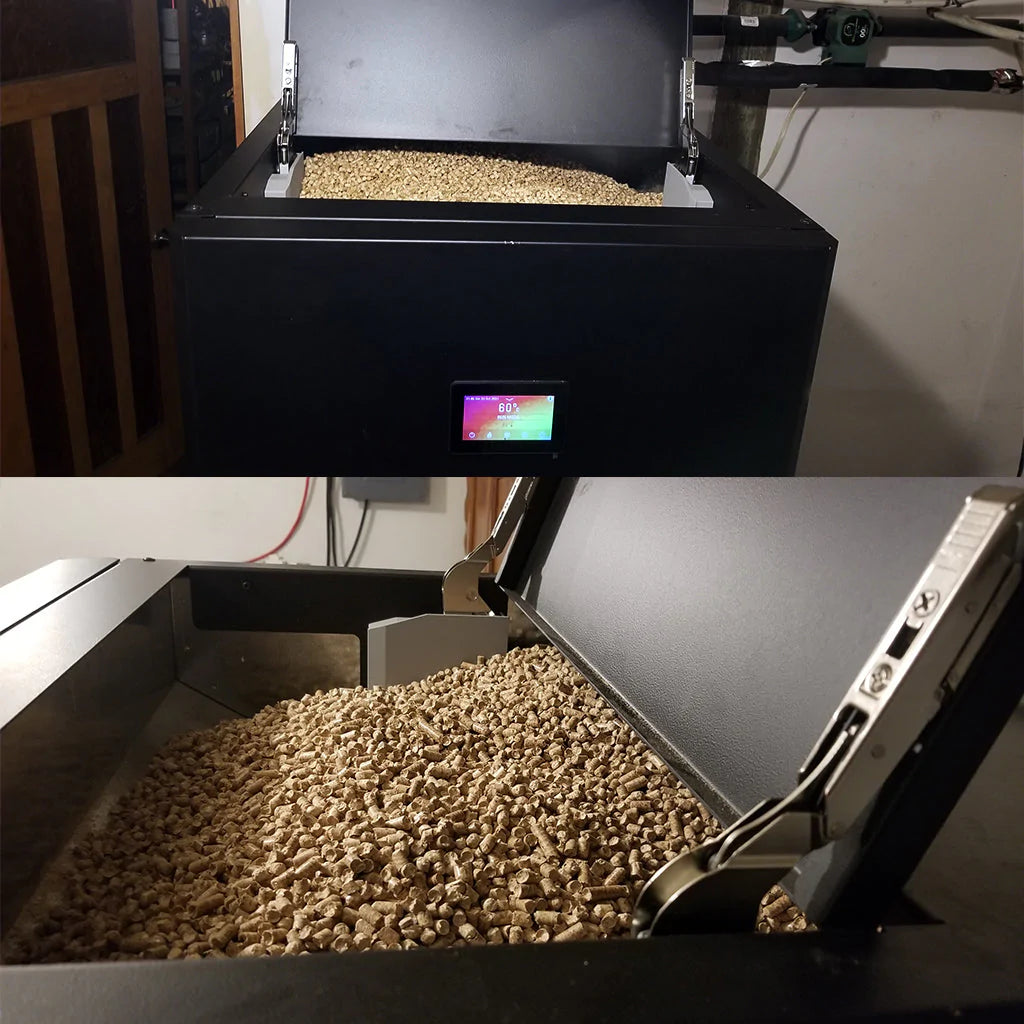

It can contain 8¼ bags of pellets (240lbs) for an autonomy of 3 to 10 days (depending on your energy demand). It is completely programmable and lets you decide when it is on or off.

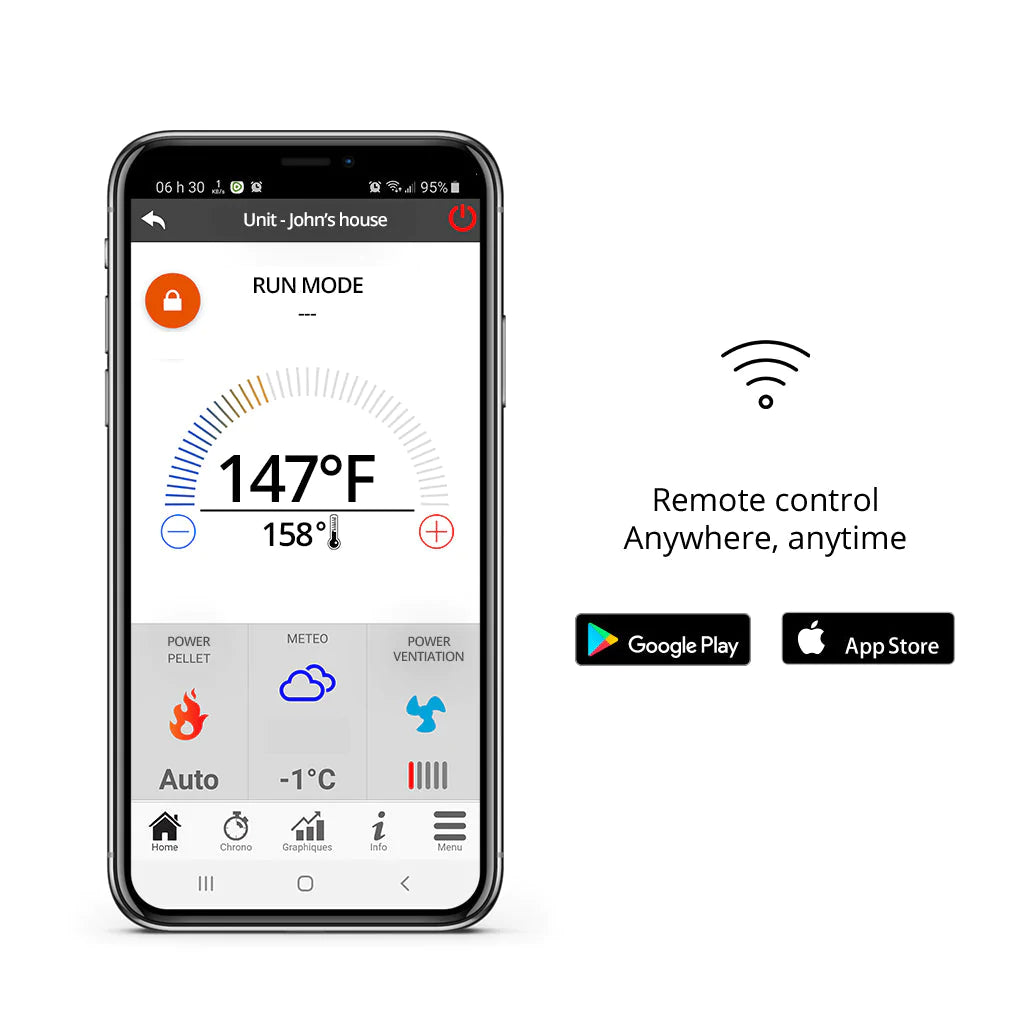

Leave with peace of mind with its remote control module: You can consult and modify the parameters of your unit at any time (anywhere) from the Android/Apple application on your smartphone.
This boiler meets North American environmental requirements (CSA B415-1). Thanks to its innovative technology, such as the 5-speed automatic fuel modulation, this product achieves very high efficiency and low CO emissions are released into the atmosphere (< 300mg/m3).
The ISO-9001 manufacturing process for our boilers is fully automated (welding, cutting, painting, etc.) thus reducing the risk of manufacturing defects to a minimum. Each unit is tested twice before being placed on the market (vacuum pressure test and water test). The success of this design has already been proven in more than 18 European countries. An efficient machine that works for a long time.
The product is covered by a two-year warranty on parts.

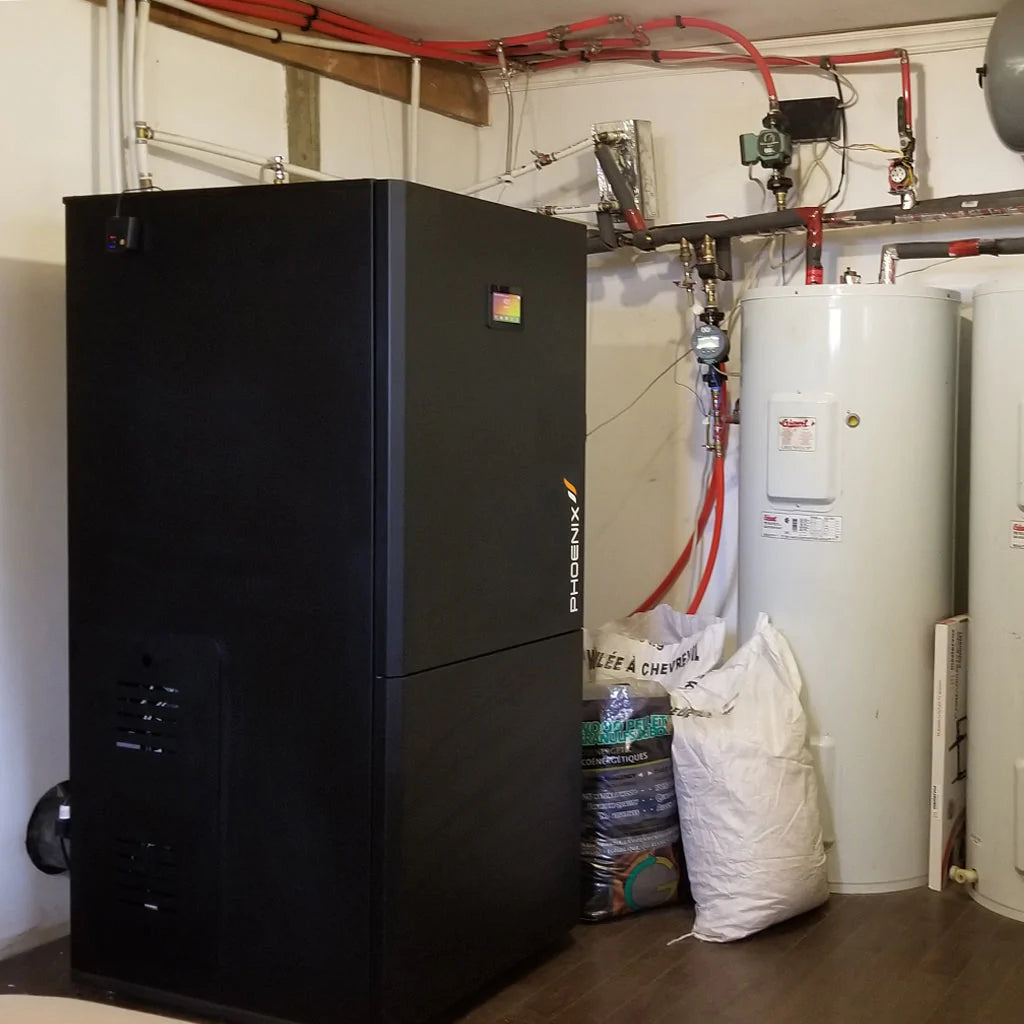

Whether you heat your home, workshop and/or garage, this boiler will meet your needs and your budget. Heating with wood pellets, a smart choice.
Best used with: Boiler Station: All-in-one Solution, provides a circulation pump, a thermometer, a Boiler Protection Valve, and Insulation
