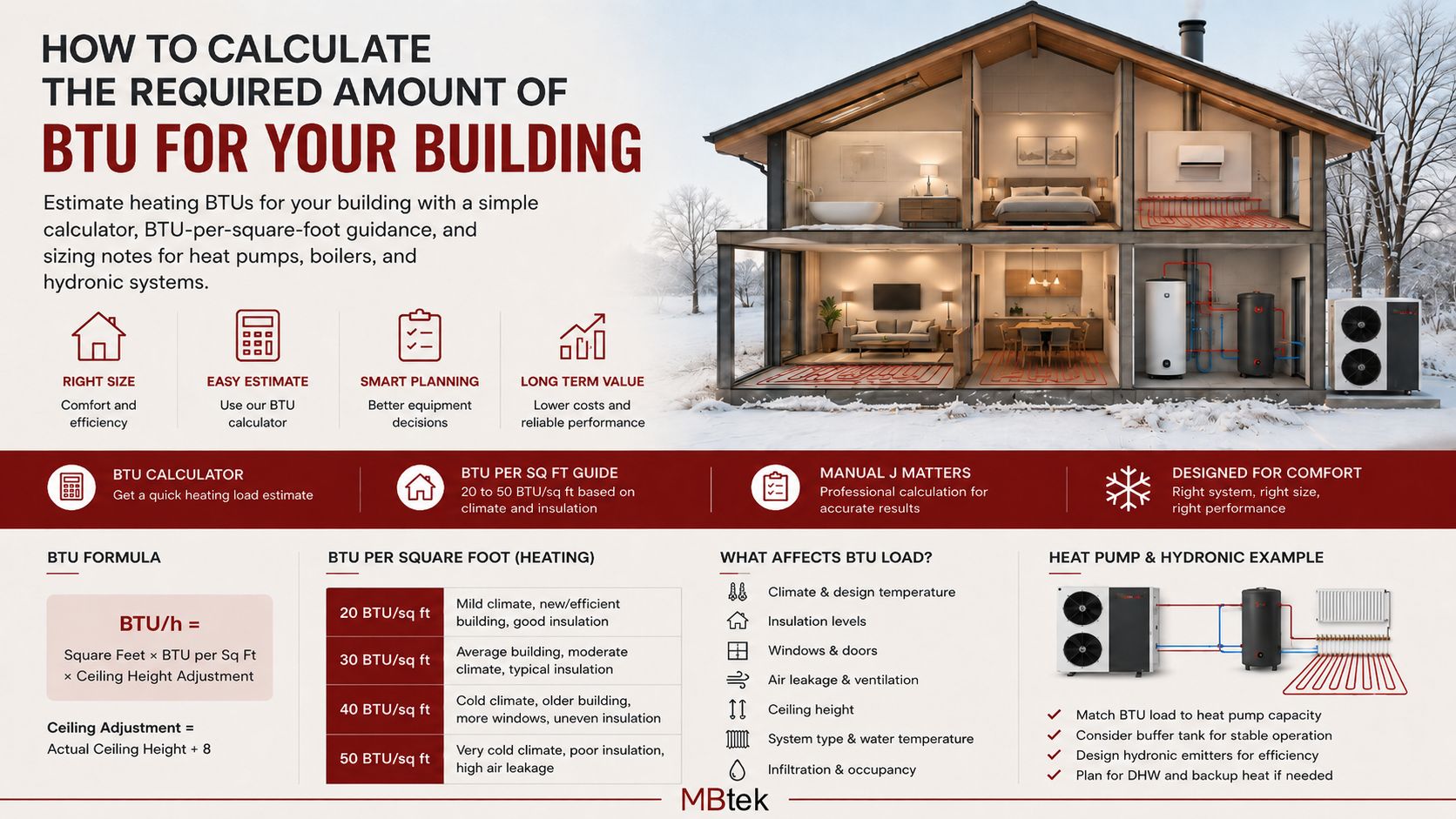

A BTU calculator is a useful first step when you are planning heat for a building, but the number it gives is not the whole equipment decision. For heating, the goal is to estimate the building's heat loss in BTU per hour so a heat pump, boiler, buffer tank, and hydronic distribution system can be sized sensibly.
This guide explains the quick BTU per square foot method, gives you an interactive calculator, shows the formula, and explains why a professional Manual J or heat-load calculation is still the better source of truth before buying equipment.
BTU calculator and formula
Use this calculator as an early planning estimate. It uses floor area, ceiling height, and a BTU-per-square-foot profile to estimate heating load. It does not replace a room-by-room load calculation, site inspection, or equipment manufacturer requirements.
Estimate heating BTU/h
Estimate only. Use Manual J or a professional heat-load calculation before final equipment sizing.
- Estimated heating load
- 45,000 BTU/h
- Equivalent output
- 13.2 kW
This is a planning estimate for an average building. Confirm final sizing with a heat-load calculation.
Heating formula
- Estimate
BTU/h = square feet x BTU per square foot x ceiling height adjustment- Ceiling adjustment
Actual ceiling height / 8.- Metric area
- Square meters are converted to square feet before calculating.
What it tells you
- Useful for
- Early planning, comparing project scale, and preparing for equipment conversations.
- Not enough for
- Final heat pump, boiler, emitter, or buffer tank sizing.
- Next step
- Confirm design temperature, room loads, and hydronic requirements.
BTU per square foot table
The square-foot method is popular because it is fast. It is also easy to misuse. Treat the table as a screening tool, not a final design calculation.
20 BTU/sq ft
- Best fit
- Mild climate, newer envelope, good insulation, low air leakage.
- Example
- 1,500 sq ft x 20 = 30,000 BTU/h before ceiling adjustment.
30 BTU/sq ft
- Best fit
- Average building, moderate climate, typical windows and insulation.
- Example
- 1,500 sq ft x 30 = 45,000 BTU/h before ceiling adjustment.
40 BTU/sq ft
- Best fit
- Cold climate, older building, more glass, or uneven insulation.
- Example
- 1,500 sq ft x 40 = 60,000 BTU/h before ceiling adjustment.
50 BTU/sq ft
- Best fit
- Very cold climate, poor insulation, high air leakage, or hard-to-heat spaces.
- Example
- 1,500 sq ft x 50 = 75,000 BTU/h before ceiling adjustment.
Why Manual J matters
A square-foot rule cannot see the building. A proper load calculation looks at climate, design temperature, walls, roof, windows, doors, air leakage, ventilation, internal gains, and room-by-room requirements. That is why ACCA Manual J is commonly used for residential heating and cooling load calculations.
ENERGY STAR guidance also points homeowners toward proper equipment sizing instead of guessing from nameplate size or square footage alone. The risk is simple: oversizing can cost more, short-cycle equipment, and reduce comfort; undersizing can leave the building cold during design conditions.
- Use the calculator for planning: It helps estimate the order of magnitude.
- Use Manual J for final decisions: It accounts for the actual building instead of only floor area.
- Use manufacturer data: Heat pump capacity changes with outdoor temperature and water temperature.
- Use the system design: Hydronic emitter temperatures, buffer tanks, zoning, and backup heat affect the final equipment choice.
What changes the BTU load?
The same square footage can need very different heating output in two buildings. A tight, renovated building with good windows may need much less heat than an older building with drafts, high ceilings, and large glass areas.
- Climate and design temperature: Colder outdoor design temperatures increase the required heating load.
- Insulation: Walls, attic, foundation, slab, and roof insulation all affect heat loss.
- Windows and doors: Large glass areas, old windows, and poor seals can raise the load quickly.
- Air leakage: Drafty buildings lose heat through uncontrolled air movement.
- Ceiling height: Higher volume usually requires more heat than standard 8 ft ceilings.
- Ventilation: Outdoor air requirements and makeup air can add load.
- Zoning: Room-by-room demand matters when different zones have different exposure or emitter types.
- Hydronic design temperature: Heat pump output and efficiency depend on the water temperature required by radiant floors, fan coils, panels, or radiators.
Heating BTU vs cooling BTU
Heating load and cooling load are related, but they are not the same calculation. A building can have a high heating load because of winter design temperature and a different cooling load because of solar gain, humidity, people, appliances, and glass exposure.
If you are choosing a heat pump for both heating and cooling, do not size the system from one season only. DOE heat pump guidance emphasizes that system capacity and operating conditions matter. For hydronic air-to-water heat pumps, the outdoor temperature and required water temperature can both change available output.
MBTEK recommendation
Calculate the load before choosing hydronic equipment
For hydronic systems, the BTU number is only the start. The system also has to match the heat source, buffer tank, domestic hot water needs, controls, pumps, manifolds, and the emitters that actually deliver heat into the building.
MBTEK can help plan around air-to-water heat pumps, boilers, buffer tanks, DHW tanks, radiant floors, fan coils, and backup strategies. Start with a heating load estimate, then use the full system layout to decide what equipment belongs together.
- Heat source: Compare air-to-water heat pumps after you know the heating load and design water temperature.
- Storage: Browse buffer tanks if the project needs thermal mass, zoning support, or reduced short cycling.
- Hot water: Browse DHW water tanks when domestic hot water is part of the same heating project.
- Project help: Use the System Builder or contact MBTEK before choosing the full system.
Buying checklist before sizing equipment
Use this checklist before choosing a heat pump, boiler, or hydronic package from a rough BTU estimate.
- Confirm floor area and ceiling height: Do not guess if the building has additions, finished basements, or high-volume rooms.
- Know the design temperature: Use the outdoor design condition for the building location.
- Check the envelope: Note insulation levels, window quality, door seals, basement or slab conditions, and air leakage.
- Decide emitter type: Radiant floors, fan coils, panels, and radiators may need different water temperatures.
- Account for DHW: Domestic hot water can change tank and heat-source planning.
- Plan backup heat: Cold-climate projects may need backup depending on heat pump capacity at low outdoor temperatures.
- Use a real load calculation: Before ordering, confirm the estimate with Manual J, an HVAC designer, or another accepted professional heat-load method.
Final recommendation: estimate first, size second
A BTU calculator is useful because it turns square footage into a practical first estimate. The mistake is treating that estimate as the final equipment size. Use it to understand project scale, then confirm the real heat loss, design water temperature, and system layout before buying.
If the project includes a hydronic heat pump, boiler, buffer tank, DHW tank, or multiple zones, plan the full system instead of only matching one BTU number.
