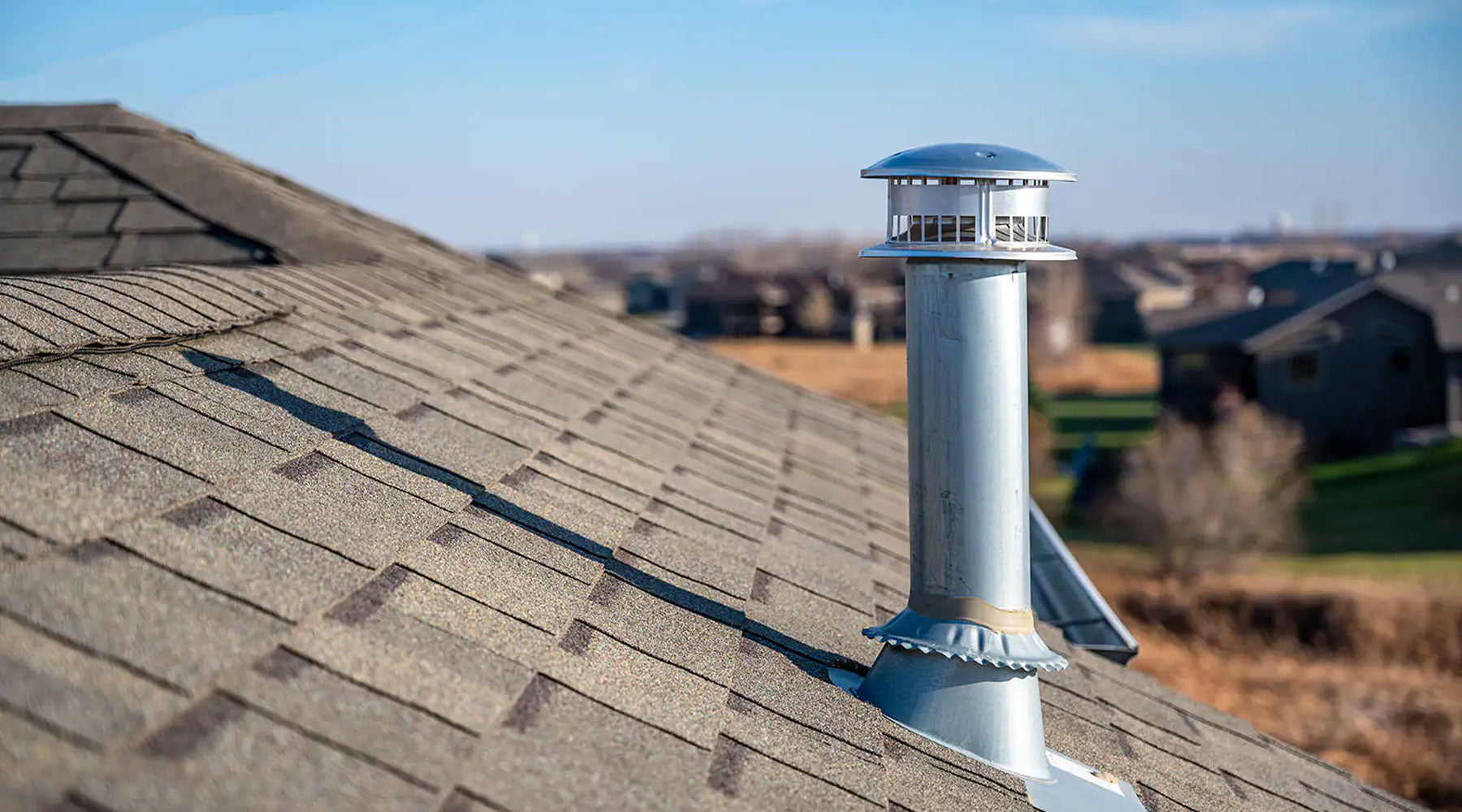

Chimney draft is the negative pressure that pulls combustion gases from a boiler through the flue and out of the chimney. For a biomass boiler, wood boiler, pellet boiler, or other solid fuel boiler, draft affects combustion stability, smoke control, efficiency, and safety.
This guide gives you a practical chimney draft calculator method, a stack draft formula, an example calculation, and a field checklist for measuring draft with a gauge or manometer. Use it for planning and troubleshooting, not as a replacement for the boiler manual, chimney code, or a qualified installer.
Chimney draft calculator and formula
The simplest chimney draft calculation estimates the pressure created by the stack effect. Hot flue gas is lighter than outdoor air, so a vertical chimney creates an upward pull. The taller the chimney and the hotter the flue gas compared with outdoor air, the more theoretical draft is available.
Estimate chimney draft
This calculator estimates theoretical stack draft only. Measure actual boiler draft with a draft gauge or manometer and compare it with the boiler manufacturer's required draft range.
- Estimated draft
- 32.0 Pa
- Inches water column
- 0.129 in. w.c.
Moderate theoretical draft. Confirm the actual draft at the boiler with a gauge or manometer.
Metric formula
- Estimate
Draft Pa = 3460 x H x (1 / To - 1 / Tf)- H
- Effective chimney height in meters.
- Temperatures
ToandTfmust be absolute temperatures in Kelvin.
Temperature inputs
- Outdoor air
- Use outdoor air temperature near the chimney inlet condition.
- Flue gas
- Use the flue gas temperature where the boiler manual says draft should be evaluated.
- Conversion
- Kelvin = Celsius + 273.15.
Pressure conversion
- Pascals
- The formula returns pressure in Pa.
- Inches w.c.
in. w.c. = Pa / 249.- Use case
- Many draft gauges and boiler specs use Pa or inches of water column.
Reality check
- The formula ignores
- Elbows, restrictions, wind, leakage, depressurization, and chimney cap effects.
- Final answer
- Measure draft under real firing conditions.
- Target
- Use the boiler manufacturer's required draft range.
Example stack draft calculation
Here is a simple example using metric units. Assume a 7 m effective chimney height, outdoor air at 10 C, and flue gas at 180 C.
- Convert temperatures: Outdoor air is 283.15 K. Flue gas is 453.15 K.
- Use the formula:
Draft Pa = 3460 x 7 x (1 / 283.15 - 1 / 453.15). - Estimated draft: The result is about 32 Pa.
- Convert to inches water column:
32 / 249 = 0.13 in. w.c..
This does not mean the boiler has exactly 32 Pa at the draft test point. It means the chimney height and temperature difference may be capable of creating about that much theoretical draft before real-world losses and site effects.
How to measure chimney draft
The best way to confirm chimney draft is with a draft gauge or manometer. For a boiler, measurement location matters. Follow the boiler manual for the test port, firing condition, and acceptable draft range.
- Use the right instrument: Use a draft gauge, digital manometer, or inclined manometer with the range needed for chimney draft.
- Measure while firing: Draft changes between cold startup, steady burn, high fire, low fire, and idle conditions.
- Record conditions: Note outdoor temperature, wind, flue temperature, boiler state, and whether exhaust fans or clothes dryers are running.
- Compare with the manual: Do not guess the target draft. The appliance spec and local code determine what is acceptable.
- Call a professional for unsafe symptoms: Smoke rollout, odor, carbon monoxide alarms, or backdrafting need immediate attention.
What affects boiler chimney draft?
The formula explains the basic stack effect, but installed draft depends on the full flue system and building. A boiler chimney can calculate well on paper and still perform poorly if the venting path is restricted or the mechanical room is under negative pressure.
- Chimney height: More effective height usually increases available draft.
- Flue gas temperature: Hotter flue gas usually increases draft, but excessive flue temperature can waste heat.
- Outdoor temperature: Colder outdoor air can increase stack draft because the density difference is larger.
- Chimney diameter: Undersized chimneys restrict flow; oversized chimneys can cool flue gas and weaken draft.
- Connector layout: Long horizontal runs, elbows, reductions, and rough surfaces add resistance.
- Wind and termination: Wind exposure, nearby rooflines, trees, and chimney caps can help or hurt draft.
- Building pressure: Exhaust fans, dryers, tight construction, and poor makeup air can pull against the chimney.
Low draft vs excessive draft
Good draft is not simply the highest possible draft. Solid fuel boilers need enough draft to move combustion products out of the appliance, but too much draft can also create problems.
Low draft signs
- Combustion
- Lazy fire, smoky startup, soot, or poor heat output.
- Safety
- Smoke rollout, odor, or flue gas spilling into the room.
- Common causes
- Cold chimney, blockage, short chimney, tight building, or undersized flue.
Excessive draft signs
- Combustion
- Fuel burns too aggressively or the boiler is hard to control.
- Efficiency
- More heat can leave through the chimney instead of the water jacket.
- Common causes
- Tall chimney, very cold weather, strong wind, or no draft regulator where one is required.
Boiler chimney design checklist
Use this checklist before installing or troubleshooting a biomass boiler chimney. It helps organize the conversation with an installer, inspector, or MBTEK support.
- Confirm the boiler draft spec: Find the required draft range in the appliance manual before sizing or adjusting anything.
- Confirm flue diameter: Match the boiler outlet and chimney requirements. Do not reduce the flue without approval.
- Check effective height: Measure usable vertical height from the appliance connection to the termination.
- Limit restrictions: Keep connector runs short and avoid unnecessary elbows or horizontal sections.
- Plan cleanouts: Solid fuel systems need accessible inspection and cleaning points.
- Check makeup air: A boiler room without enough combustion air can create draft problems.
- Use draft control correctly: Barometric dampers, draft regulators, or induced draft devices must match the appliance and local code.
- Verify after startup: Measure draft during real operation and record the result for future service.
MBTEK recommendation
Planning draft for a biomass boiler system
MBTEK can help with the boiler side of the decision: boiler sizing, fuel type, buffer tanks, hydronic layout, controls, and accessories. Chimney design and final draft verification still need to follow the boiler manual, local code, and a qualified installer or chimney professional.
If you are comparing a wood boiler, pellet boiler, or other biomass boiler, treat draft as part of the whole system. Boiler size, fuel, chimney height, flue path, buffer tank strategy, and building pressure all affect the final result.

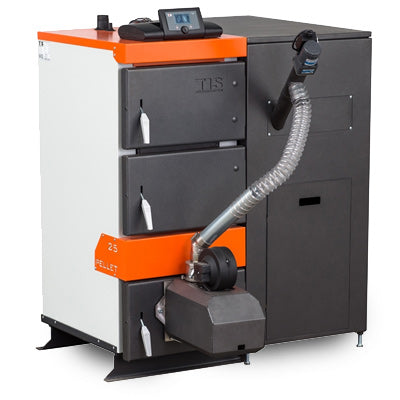

- Boiler options: Browse solid fuel boilers for wood, pellet, hybrid, and biomass systems.
- Pellet systems: Compare pellet boilers if you want automatic biomass heating.
- Wood systems: Compare wood boilers if you are planning cordwood heating.
- Project help: Use the System Builder or contact MBTEK before choosing the full system.
Final recommendation: calculate, then measure
A chimney draft formula is useful for understanding whether chimney height and temperature difference are likely to create enough stack effect. It is not a commissioning tool by itself. Real draft must be measured with the appliance operating and compared with the manufacturer's required range.
If draft is low, excessive, unstable, or affected by smoke rollout or combustion odor, stop treating it as a spreadsheet problem. Have the chimney, boiler, makeup air, and draft control setup inspected before continuing normal operation.
