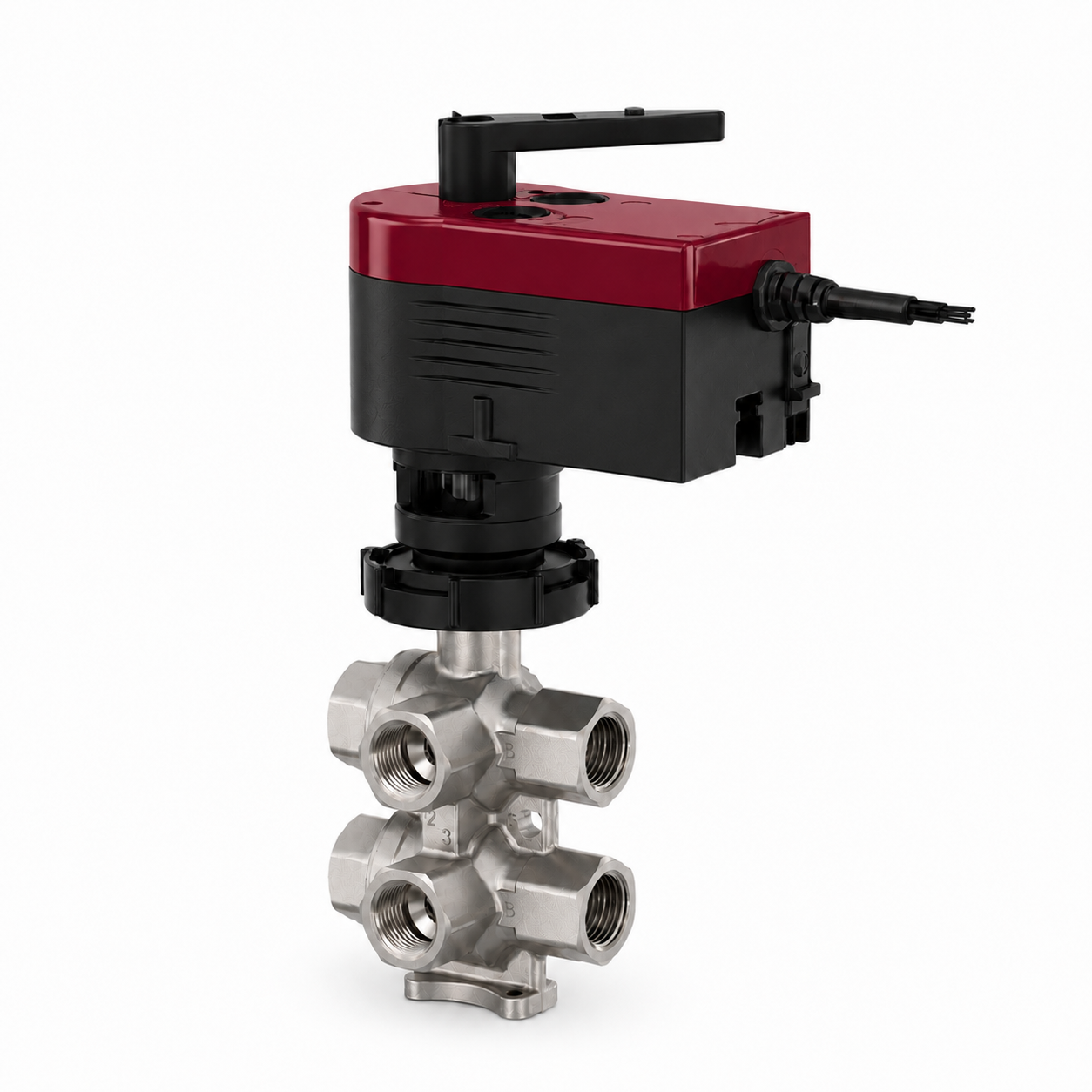

APOLLO 6-Way Valve
$493.13
- Simplified 4-Pipe SetupReplaces up to four 2-way valves and actuators to save space
- Zero Cross-Flow DesignSafely separates heating and cooling systems without any leakage.
- Premium Brass BodyMoulded from dezincification-resistant brass for ultimate durability
- Custom Flow PrecisionFeatures exchangeable orifice plates for precise Kvs flow control.
- Seamless Actuator ControlEasily combines with APOLLO valve actuators for automated regulation.
Product details
APOLLO 6-Way Valve
Compact 6-way ball valve for four-pipe heating and cooling systems, designed to handle changeover or regulating duties with fewer components.
Key Benefits
- Combines heating and cooling control functions in one compact valve body
- Reduces component count versus multi-valve conventional layouts
- Supports four-pipe fan coil and ceiling applications
- 90-degree rotation covers both heating and cooling sequences
- Designed to separate heating and cooling circuits without leakage
Specifications
- Valve Type: 6-way ball valve
- Available Sizes: 1/2" and 3/4"
- Application: 4-pipe systems for fan coils and heated/chilled ceilings
- Function: Regulating valve or changeover valve
- Rotation: 90°
Customer Success Stories
I installed the Apollo wall fan coil in our living room and I couldn't be happier. It's incredibly quiet—you barely notice it's running—yet it heats the space up super fast. Plus, the clean white design looks great on the wall
Whisper-Quiet Comfort
A sleek, modern design that blends perfectly into any room
Whisper-Quiet Comfort

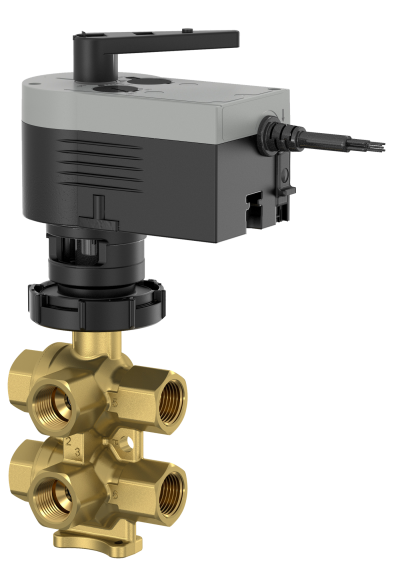

APOLLO 6-Way Valve
Main Features
-
Space-Saving Design
This compact valve replaces up to four conventional valves and actuators, reducing material use and installation complexity in tight mechanical layouts.
-
Dual Functionality
It works as both a regulating valve and a changeover valve for heated or chilled ceilings and fan coils in four-pipe systems.
-
Leakage-Free Separation
Its dual right-angled port design helps keep heating and cooling circuits separated without cross leakage.
-
Durable Construction
Manufactured from dezincification-resistant brass CW602N or CW617N for long service life under demanding hydronic water conditions.
-
Precise Flow Control
Kvs values can be tuned with exchangeable orifice plates to match the intended system flow and improve control accuracy.
-
Simple Integration
Pairs easily with AKM 115(S) and AKF 112 or 113(S) actuators to create a complete and streamlined control assembly.
Versatile Control
The APOLLO 6-way ball valve is a compact solution for four-pipe systems, handling both heating and cooling with a single 90-degree rotation instead of multiple separate valve assemblies.
Durable Build
A dezincification-resistant brass body and compatibility with VDI 2035 water quality guidance help support long-term reliability and corrosion resistance.
Optimized Performance
Exchangeable orifice plates allow the valve's Kvs value to be selected for the design intent, supporting better hydronic balance and efficient operation.
Streamlined Installation
Its compact body, ISO 228 male threads, and optional fittings make the valve easier to install and service in modern hydronic control packages.
Technical specifications
Family-level specifications for the APOLLO 6-Way Valve.
| Product type | APOLLO 6-Way Valve |
|---|---|
| Application | Heated and chilled ceilings plus fan coils in four-pipe systems |
| Function | Regulating and changeover valve |
| Body material | Moulded brass CW602N or CW617N, dezincification-resistant |
| Thread type | Male thread as per ISO 228 |
| Kvs selection | Configurable with exchangeable orifice plates |
| Actuator compatibility | AKM 115(S) and AKF 112, 113(S) |
| Water quality / accessories | VDI 2035 water quality guidance; optional strainers and screw fittings available |
Use a family-specific bottom-tabs section later if this product needs comparison tables, grouped specs, or product-handle logic.
Product documents
Download the current APOLLO 6-Way Valve manual.
APOLLO 6-Way Valve Manual
Installation and operation manual for the APOLLO 6-Way Valve.
