APOLLO DHW160 MAX Elite - Stainless Combined Indirect Water Heater Tank
$4,671.35
$3,737.08
20% off at checkout
Shipping
$794
Free
Add this item to cart, then split the order across credit cards, debit + credit, or company + personal cards before checkout.
Pay with multiple cards
Add your items to cart, then choose split payment in the cart summary. You can divide the order across two or more payment methods before checkout.
- Two credit cards
- Debit + credit
- Company + personal card
You have 15 days to finish the split-payment checkout. Credit card repayment terms stay between you and your card issuer.
Choose your model
- 10-Year WarrantyEvery Apollo DHW MAX tank ships with a 10-year manufacturer warranty.
- Stainless Steel 316Inner tank and coil built from SS316 for maximum corrosion resistance and longevity.
- All-in-One DesignCombined DHW and buffer in a single footprint — fewer connections, less space, simpler install.
- High-Efficiency Insulation2" side and 3" top polyurethane foam cuts standby heat loss and prevents condensation.
- 20% More Hot WaterAPOLLO patent cold water inlet design recovers up to 20% more usable hot water from every cycle.
Product details

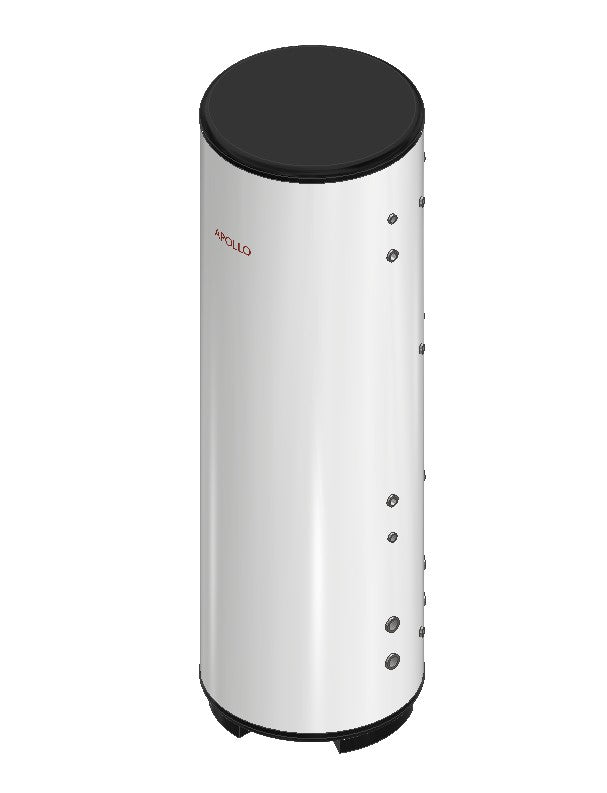

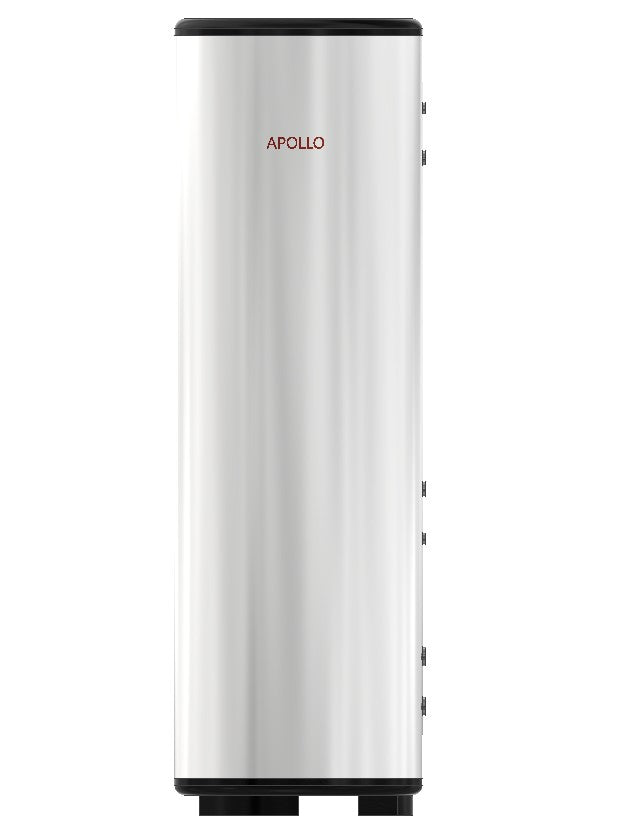

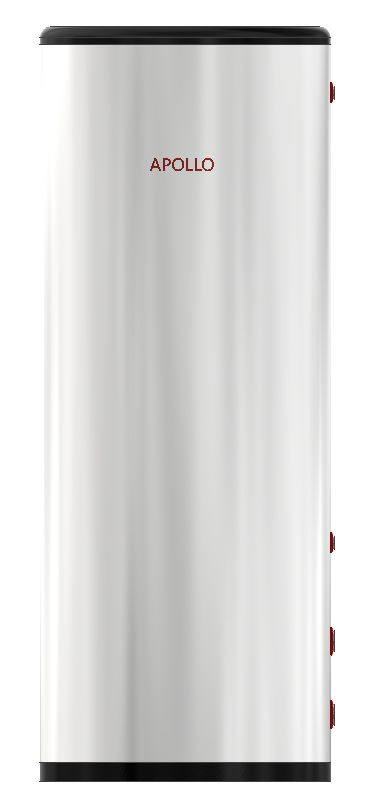

STAINLESS COMBINED INDIRECT WATER HEATER TANK WITH BUFFER – SPACE-SAVING ALL-IN-ONE DESIGN
The APOLLO DHW160 MAX is a combined domestic hot water (DHW) and buffer tank, designed for the APOLLO heat pump systems. Built in stainless steel 316, it delivers high durability, excellent insulation, and optimized system performance for residential or commercial installations.
Key Benefits
- All-in-one DHW + buffer tank to save space and simplify installation
-
Buffer (30Gal) for improved heat pump performance and defrost cycles
- High insulation (2"–3") to reduce heat loss and prevent condensation
- Stainless steel 316 construction for long-lasting corrosion resistance
-
Domestic cold water inlet APOLLO patent design for 20% more hot water
Specifications
- DHW Volume: 130 Gal.
-
Buffer Volume: 30 Gal
- Material: Stainless Steel 316 (inner tank & coil)

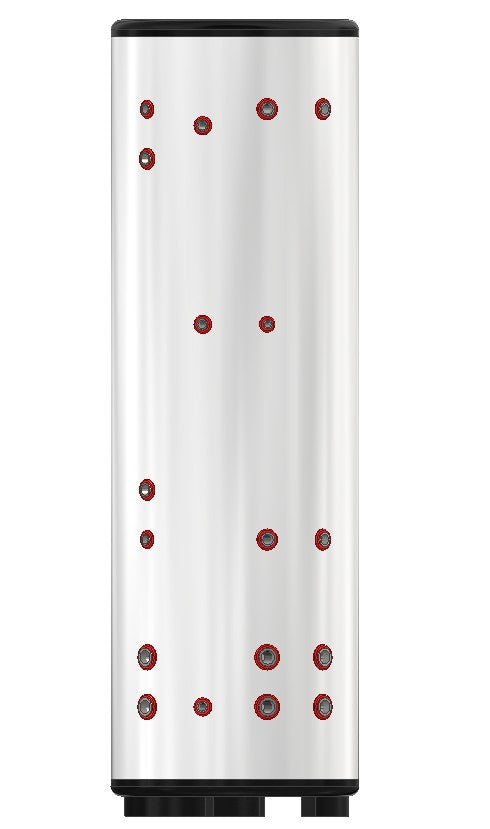

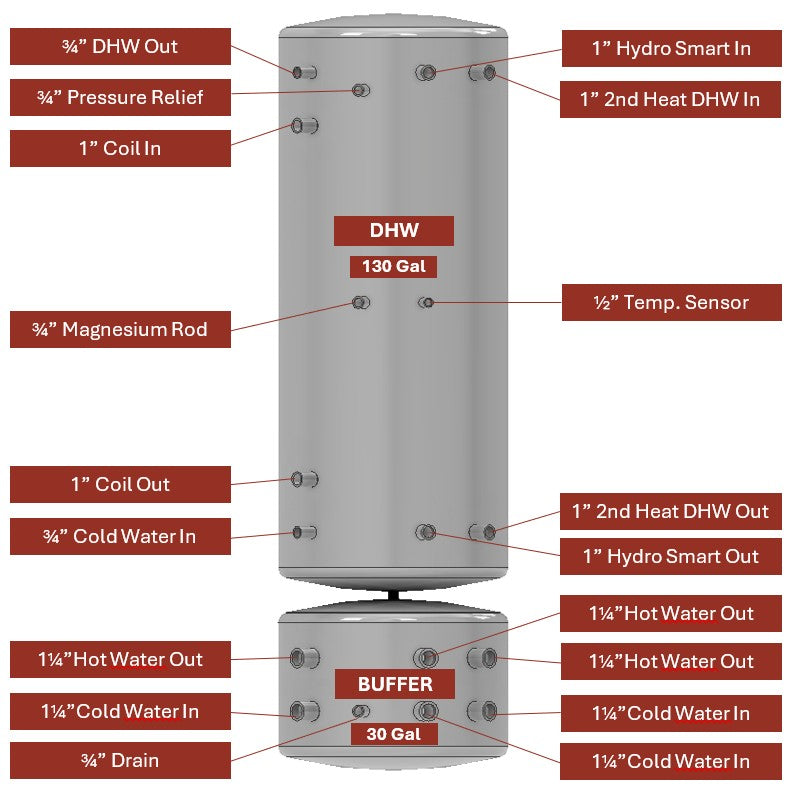

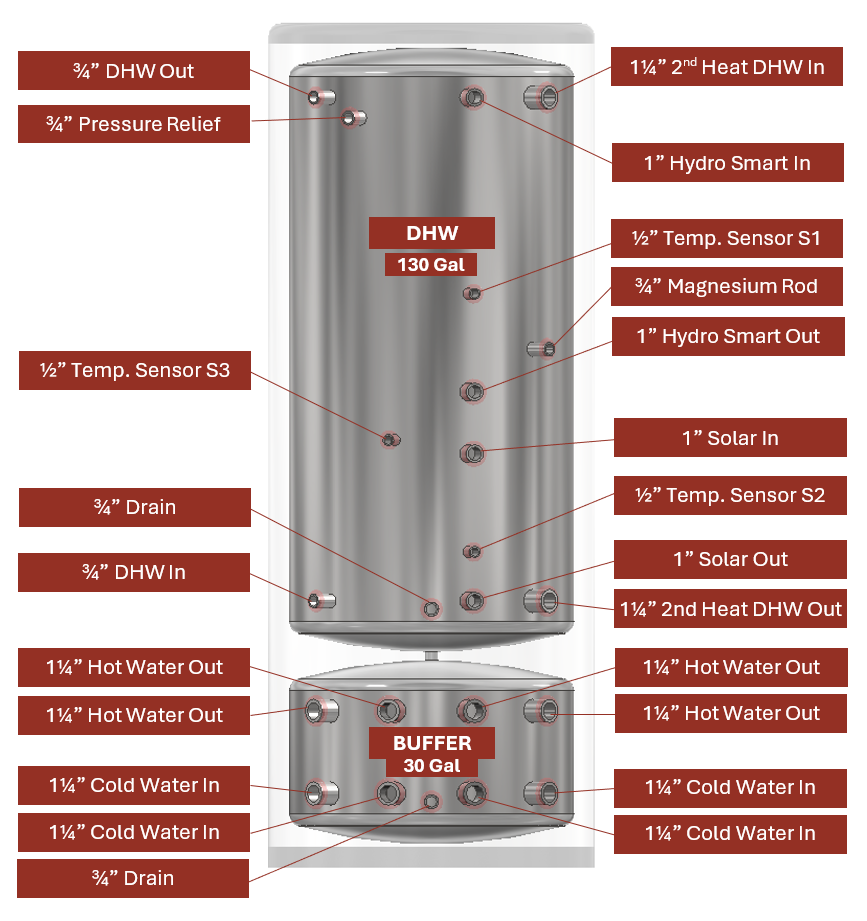

- Connections: DHW Inlet/Outlet: 3/4", Hydro Smart Inlet/Outlet: 1", Coil Inlet/Outlet 1", Buffer connections: 1 1/4"
- Coil: 3/4" × 150' with 1" adapter
- Insulation: 2" sides / 3" top polyurethane foam
- Pressure Rating: 200 psi
- Relief Valve: 120 psi
- Drain Valve: Included
- Warranty: 10 years
- Application: Residential & commercial heat pump systems
Customer Success Stories
The Apollo heat pump system is very efficient, quiet, and easy to install. It stands out for its clear design, well-organized components, and advanced features like a touchscreen and remote monitoring through an app. It also allows precise temperature control and includes an electric backup for very cold conditions. Overall, it's a reliable and practical system.
Heats my home nicely and economically. The cold weather does not seem to affect the pump. Overall I'm very happy with the system. The techs have been very helpful whenever I have had questions regarding installation, etc.
Since installing the Apollo heat pump, our energy bills have plummeted. It pulls heat right out of the air outside, even when it's freezing, and uses a fraction of the electricity our old system did. It's incredibly efficient
I was skeptical about a heat pump in our cold climate, but the Apollo proved me wrong. It consistently delivers strong, comfortable heat to our entire home, even during the deepest winter freezes. It's a truly robust system
Upgrading to the Apollo air-to-water heat pump was the best decision for our home. It integrated perfectly with our existing radiant floor heating. It runs quietly outside and provides perfectly even, comfortable heat inside
You can tell just by looking at the Apollo unit that it's built to last. It handles the elements outside without a problem and operates surprisingly quietly. It gives us total peace of mind knowing we have such a dependable system
Maximizing Efficiency with Apollo Heat Pump
Economical performance that isn't affected by low temperatures.
Reliable Heating in Cold Weather
Economical performance that isn't affected by low temperatures.
Incredible Energy Savings
Slashing utility bills with high-efficiency air-to-water technology
Reliable Heat, No Matter the Weather
Powerful performance that stands up to freezing temperatures
The Ultimate Home Heating Upgrade
Seamlessly integrating with existing radiant or hydronic systems
Built to Weather Any Storm
Heavy-duty construction for years of reliable, quiet operation
Maximizing Efficiency with Apollo Heat Pump
Reliable Heating in Cold Weather
Incredible Energy Savings
Reliable Heat, No Matter the Weather
The Ultimate Home Heating Upgrade
Built to Weather Any Storm
Apollo DHW MAX Series
Built for heat pump DHW performance
-
Stainless 316 inner tank & coil
Resists corrosion from DHW minerals and closed-loop fluids for a service life measured in decades.
-
Combined DHW + buffer volume
Single tank eliminates a separate buffer vessel — less piping, fewer leak points, smaller footprint.
-
2"–3" polyurethane foam insulation
Thick foam jacket minimizes standby heat loss and keeps condensation off the tank surface.
-
Optimized for heat pump cycling
Buffer volume absorbs thermal mass during defrost cycles, protecting efficiency and reducing short-cycling.
-
APOLLO patent cold water inlet
Proprietary inlet stratification increases usable hot water delivery by up to 20%.
-
200 psi rated, relief valve included
Rated for 200 psi, 120 psi relief valve and drain valve included — no extra hardware needed.
Residential & commercial ready
Sized and rated for both residential and light commercial heat pump DHW applications.
Flexible connection layout
Dedicated ports for DHW, Hydro Smart, coil, and buffer circuits — no field adapters for standard installs.
Defrost-cycle protection
Buffer volume absorbs and releases energy during heat pump defrost for stable DHW output in cold weather.
10-Year warranty
Backed by a 10-year manufacturer warranty and full MBTEK after-sale technical support.
Technical specifications
Full specifications for the Apollo DHW MAX combined domestic hot water and buffer tank. DHW and buffer volumes reflect the current model.
Apollo DHW MAX specifications
Stainless steel 316 combined DHW and buffer tank designed for APOLLO heat pump systems.
| Specification | Value |
|---|---|
| Product family | Apollo DHW MAX Series |
| Primary application | Domestic hot water & buffer for heat pump systems |
| DHW volume | 130 Gal. |
| Buffer volume | 30 Gal. |
| Material | Stainless Steel 316 (inner tank & coil) |
| Coil | 3/4" × 150′ with 1" adapter |
| Insulation | 2" sides / 3" top polyurethane foam |
| Pressure rating | 200 psi |
| Relief valve | 120 psi |
| Drain valve | Included |
| Connections | DHW Inlet/Outlet: 3/4" • Hydro Smart Inlet/Outlet: 1" • Coil Inlet/Outlet: 1" • Buffer connections: 1 1/4" |
| Warranty | 10 years |
| Application | Residential & commercial heat pump systems |
Product documents
No product documents or manuals are currently published here. Contact us if you need technical documentation.
