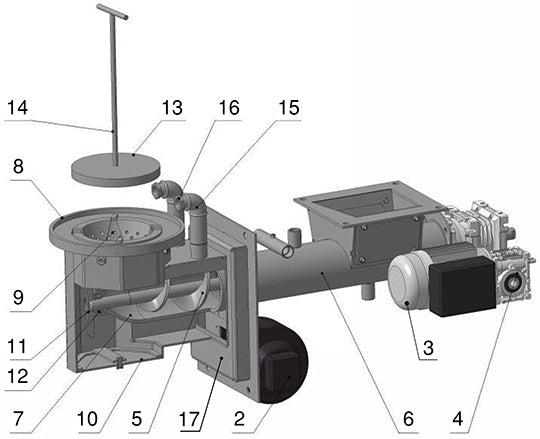

FOR EKO DUO 15-35-55-95, boiler replacement parts:
1 - Controller Tronic 481R
2.1 - Fan EKO 15-25: Part no. WPA 06
2.2 - Fan EKO 35-55: Part no. WPA 133
2.3 - Fan EKO 95: Part no. WPA 145
3 - Auger Motor
4 - Auger Gearbox
5.1 - Auger Screw EKO 15
5.2 - Auger Screw EKO 35
5.3 - Auger Screw EKO 55
5.4 - Auger Screw EKO 95
6.1 - Auger Body EKO 15
6.2 - Auger Body EKO 35
6.3 - Auger Body EKO 55
6.4 - Auger Body EKO 95
7 - Auger Elbow
8 - Firebox Ring
9 - Firebox Rotary Feeder
10 - Firebox Bottom Plate
11 - Rotary Paddle
12.1 - Wear Sleeve with Paddle (Must change every 3 yrs) EKO 15
12.2 - Wear Sleeve with Paddle (Must change every 3 yrs) EKO 35
12.3 - Wear Sleeve with Paddle (Must change every 3 yrs) EKO 55
12.4 - Wear Sleeve with Paddle (Must change every 3 yrs) EKO 95
13 - Deflector
14 - Deflector T Handle
15 - Secondary Air Tube (for pellets)
16 - Secondary Air Bushing and Plug (for pellets)
17 - Firebox Steel Body
18 - Boiler Tube Brush

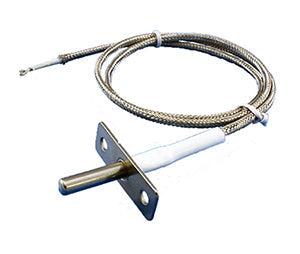

19 - Sensor CT4 for boiler, water, tank, feeder, mixing, domestic hot water
20 - Sensor CT2 for exhaust and weather
21 - DZT-1 Thermal sensor, Open: 185°F/85°C, Close: 140°F/60°C
22 - DZT-2 Thermal sensor, Open: 200°F/95°C, Close: 155°F/70°C
23 - Grate
24 - Break Pins 10pcs
25 - Fuse pack 5pcs
26 - ecoLINK2 cable
27 - Relay 220VAC (use to start a 120V pump)
28 - Relay 12VDC (use to start the auxiliary boiler or external alarm)
29 - External Alarm 12VDC, 85dB, 1 1/4" X 3/4"
30.1 - Safety valve EKO 15-35: Part no. fi 60
30.2 - Safety valve EKO 55-95: Part no. fi 80
31. Sealing cord EKO 15-35-55-95
