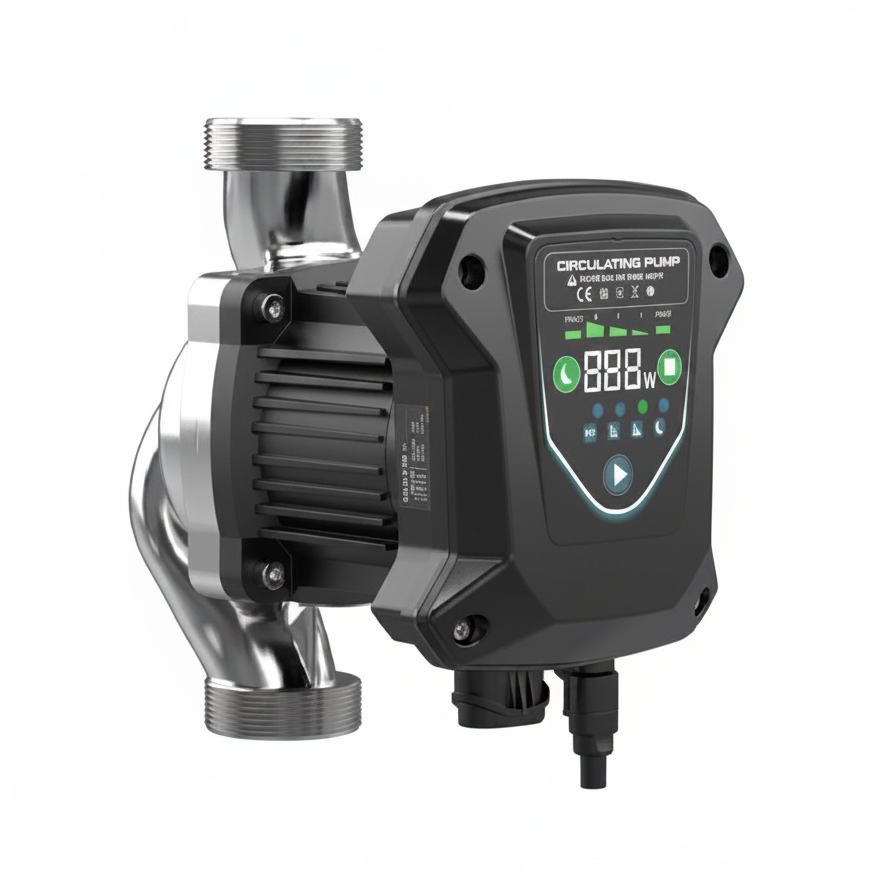

Pump High Efficiency 1 1/4"

$599.00

  • Power: 230V, 50/60Hz.
  • Consumption: 10W – 180W (Max 220W peak).
  • Temperature: 0°C to 110°C (32°F to 230°F).
  • Protection Class: IP42.
  • Max Pressure: 1.0 MPa (10 bar / 145 psi).
  • Motor: High-efficiency ECM Permanent Magnet Motor.
  • Speed: Variable 1100 – 4400 RPM.
  • Flow Rate: Up to 44 GPM.
  • Connection: 1 1/4" NPT Stainless Steel flange union.
  • Controller: Integrated LED display with 2-button interface and PWM External Signal support.
  • Control Logic: Dual PWM modes for Heating (PWM1) and Solar (PWM2) systems.
  • Structure: Compact design with close-contact control box and horizontal motor shaft orientation.
  • Safety Features: Integrated protection against dry running (E7), blocked rotors (E1), and IPM over-temperature (E5).
People watching this item right now

Voltage: 220 VAC

  • 220 VAC
  • 120 VAC

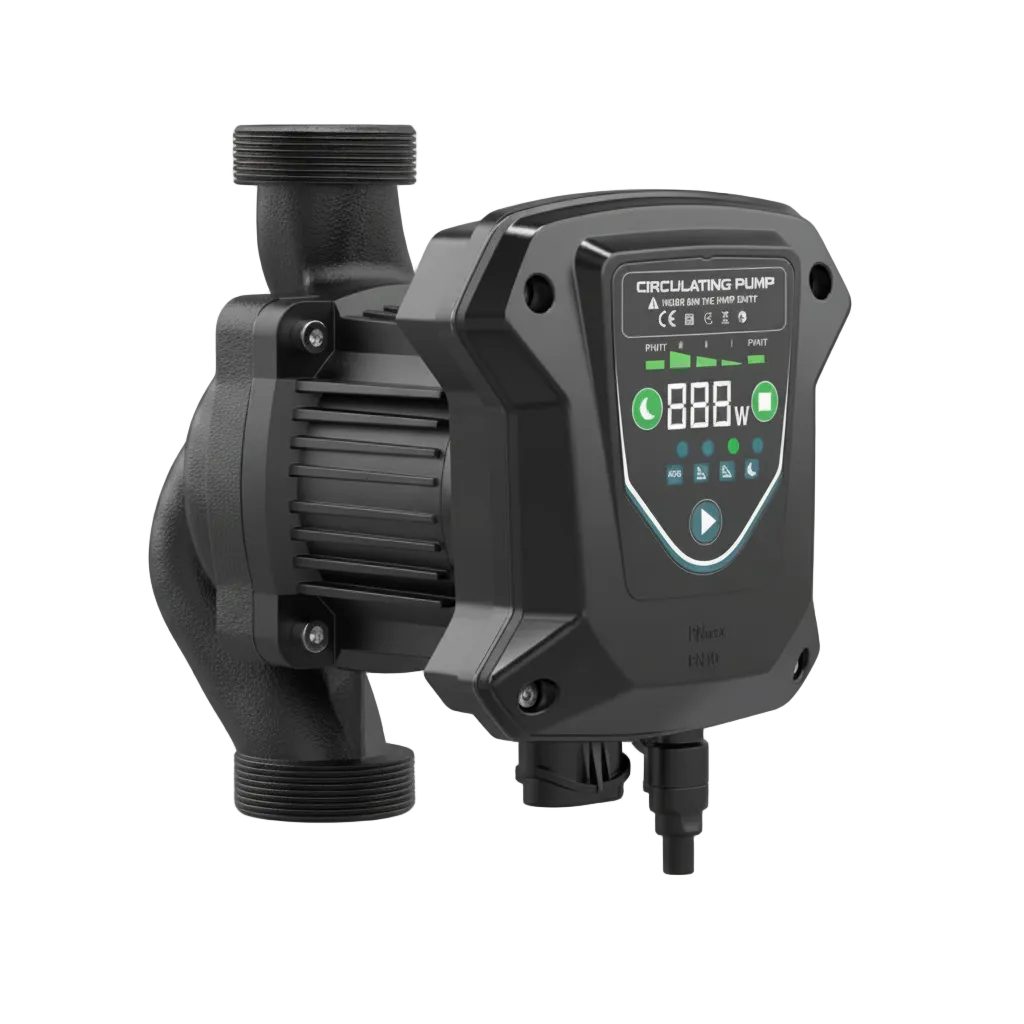

Material: Standard

  • Standard
  • Stainless
$599.00
Out of stock
Features
Specs
Reviews/Q&A
Manual

Pump High Efficiency 1 1/4"

  • High Efficiency

    Utilizes an advanced ECM motor to consume up to 85% less electricity than standard pumps.

  • Multiple Modes

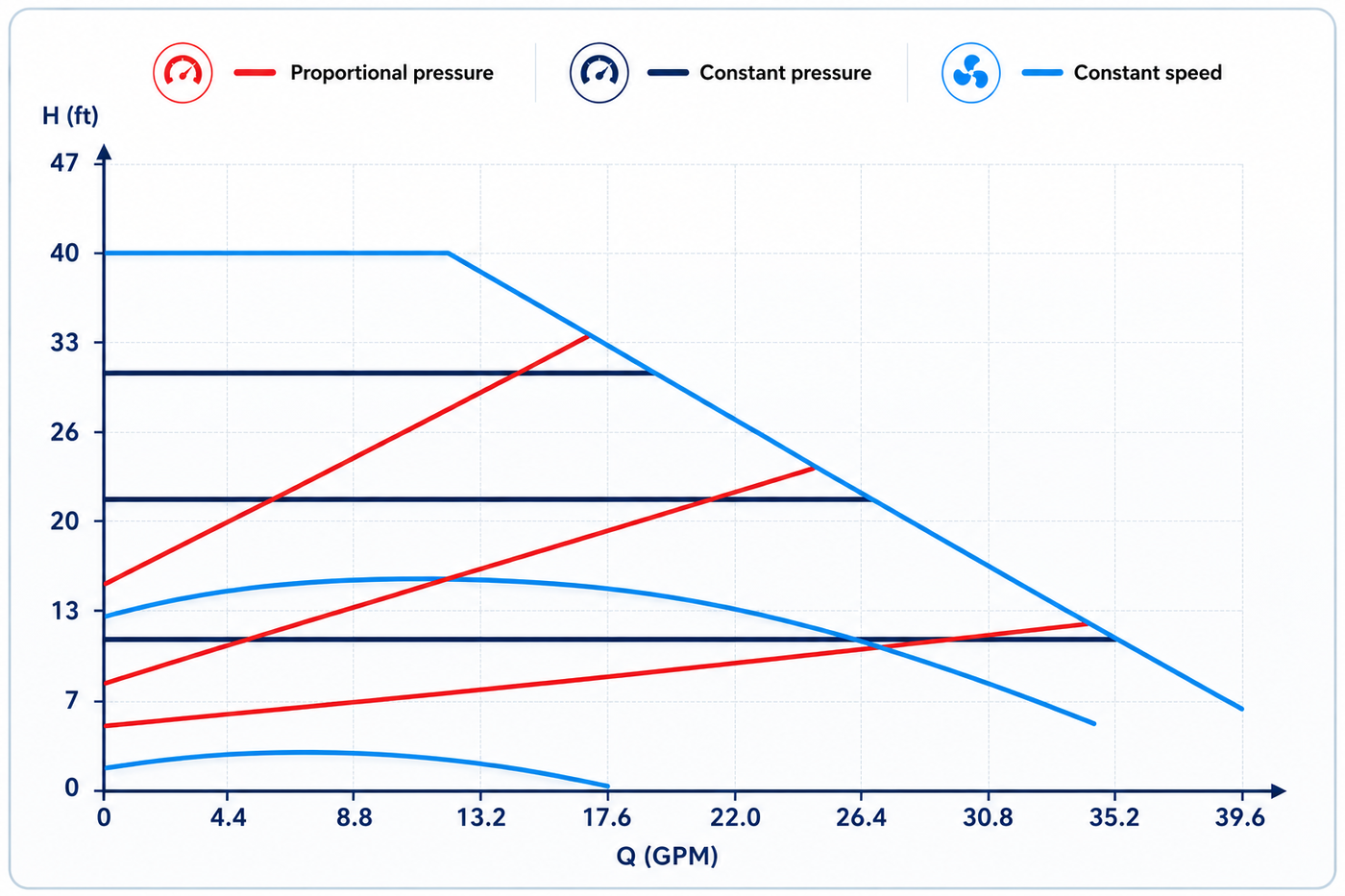

    Features Auto, Proportional Pressure, Constant Pressure, Constant Speed, and Night Setback settings.

  • Integrated LED

    Provides real-time digital feedback on wattage, flow rates, and current RPM.

  • Robust Construction

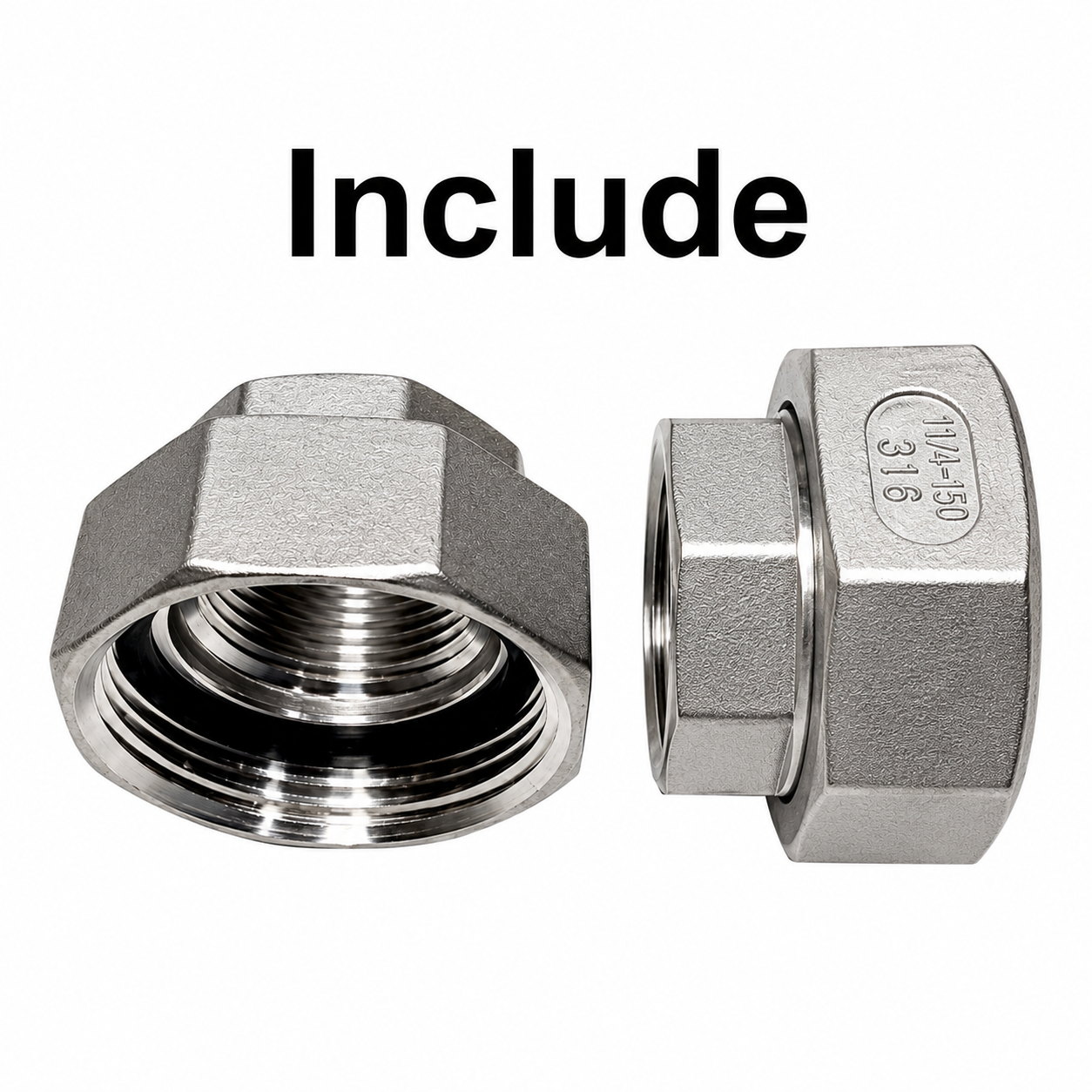

    Includes a 1 1/4" NPT stainless steel flange union for long-lasting, low-noise operation.

  • External Control

    Supports PWM input signals for seamless integration and safety within boiler and heating systems.

  • Plug-and-Play

    Designed for easy handling and quick installation with direct connection to boilers or heat pumps.

Adaptive Performance

The pump features intelligent self-adjusting modes that automatically balance flow and pressure according to the specific demands of the heating system.

Thermal Resilience

Engineered to operate reliably across a wide liquid temperature range from -10ºC to 110ºC (10ºF to 230ºF) for diverse applications.

Scalable Flow

This model allows for doubling pumps in series to effectively double the system flow rate, providing flexibility for larger installation requirements.

Operational Safety

Built-in safety features include hysteresis protection and a failsafe that runs the pump at maximum speed if control cables are damaged.

Customer video reviews

  • It is wonderful, we finally made it work. I have to say that Allan and Jesus are wonderful.
    ★★★★★

    Jocelyne,

    A Happy Customer
  • The quality is very impressive! Don't over pay for other brands. Allen, Jesus and the MBtek team are very helpful both before and after the sale. Thank you for the great experience guys.
    ★★★★★

    Todd,

    A Happy Customer
  • Product arrived well packed, and undamaged.
    Customer service was great! Very helpful over the phone. Looking forward to doing more business in the future.
    ★★★★★

    Greg,

    A Happy Customer

Frequently asked questions

Where can I find a dealer?

You can speak directly with one of our sales agents via phone, email or text message for more information.

Who will install my heat pump?

Mbtek does not complete the installation. Any HVAC professional will be able to install your purchase. If you require assistance finding one, we are here to help.

Where can I find parts?

Here We have spare parts ready to ship the following business day.

When will I receive my unit?

As soon as the unit is in stock, we will book the shipment following business day. The availability (or ETA) of a specific unit is mentioned on the top of each product page. Depending on your location, delivery can take anywhere from 3 to 12 days

Do I have to pay customs fees if my unit is coming from another country?

No. We take responsibility for these charges.

Are your products shipped in the U.S. or Canada?

It varies for each product. However, we have warehouses in Pennsylvania (U.S.), Alberta (CAN), and Quebec (CAN).

What is the product warranty?

The compressor includes a 5-year warranty.

Need an installer?

We made it easy for you.

Please note that listed installers are independent contractors and not employees of MBTek.
They are skilled professionals familiar with our products and capable of efficient installation.

Any Questions?

Reach out to us

Technical Specifications

Basic Information:

Parameter Specification
Model Type High-Efficiency ECM Circulation Pump
Voltage / Frequency 230V, 50/60Hz
Operating Power 10W – 220W
Rated Current 0.65A
Horsepower Range 1/100 to 1/4 HP
Speed Range 1100 – 4400 RPM
Maximum Flow Rate 44 GPM
Max Operating Pressure 10 bar (145 psi)
Liquid Temperature Range -10ºC to 110ºC (10ºF to 230ºF)
Connection Size 1 1/4" NPT
Flange Material Stainless Steel
Control Signal PWM Input Support

Minimum Inlet Pressure Requirements:

At 50ºC (112ºF): 0.73 psi / 0.05 bar
At 80ºC (176ºF): 5.8 psi / 0.4 bar
At 110ºC (230ºF): 15.95 psi / 1.1 bar

Advanced & Auxiliary Technical Specifications:

Category Detailed Specification / Requirement
Enclosure Protection Class IP42
Voltage Tolerance 230V (+6% / -10%)
Insulation Resistance ≥ 50 MΩ (Cold state)
Recommended Internal Fuse 1A
Cable Specifications 3-core, 0.75 mm² cross-section
External Control Signals PWM1 (Heating) / PWM2 (Solar)
PWM Input Frequency 100 Hz to 1000 Hz (Nominal)
PWM Feedback Output 75Hz ± 5% frequency; 5V pulse width modulation
Built-in Protections Blocked rotor, phase loss, over/under voltage, short circuit, and IPM over-temperature
Dry Run Protection Integrated idling protection (Error code E7)
Installation Orientation Motor shaft must be kept horizontal
Max. System Pressure 1.0 MPa (10 bar)
Medium Requirements Clean, non-corrosive water; temperature +0°C to +110°C

Reviews

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Joe Evans (Calhan, US)
Seadona 1-1/4 circulator pump

Installed this pump with DUO Pellet boiler, it has different curves you can select for how you want it to operate. It was easy to wire into the controller. Runs on 220V 50Hz which is the same as what powers the boiler controller. I've only been running the pump for about a week now, so can't comment on longevity.

C
Christopher Perry (New York, US)

Great pump, made it easy to setup with existing Pellet 50 boiler.
