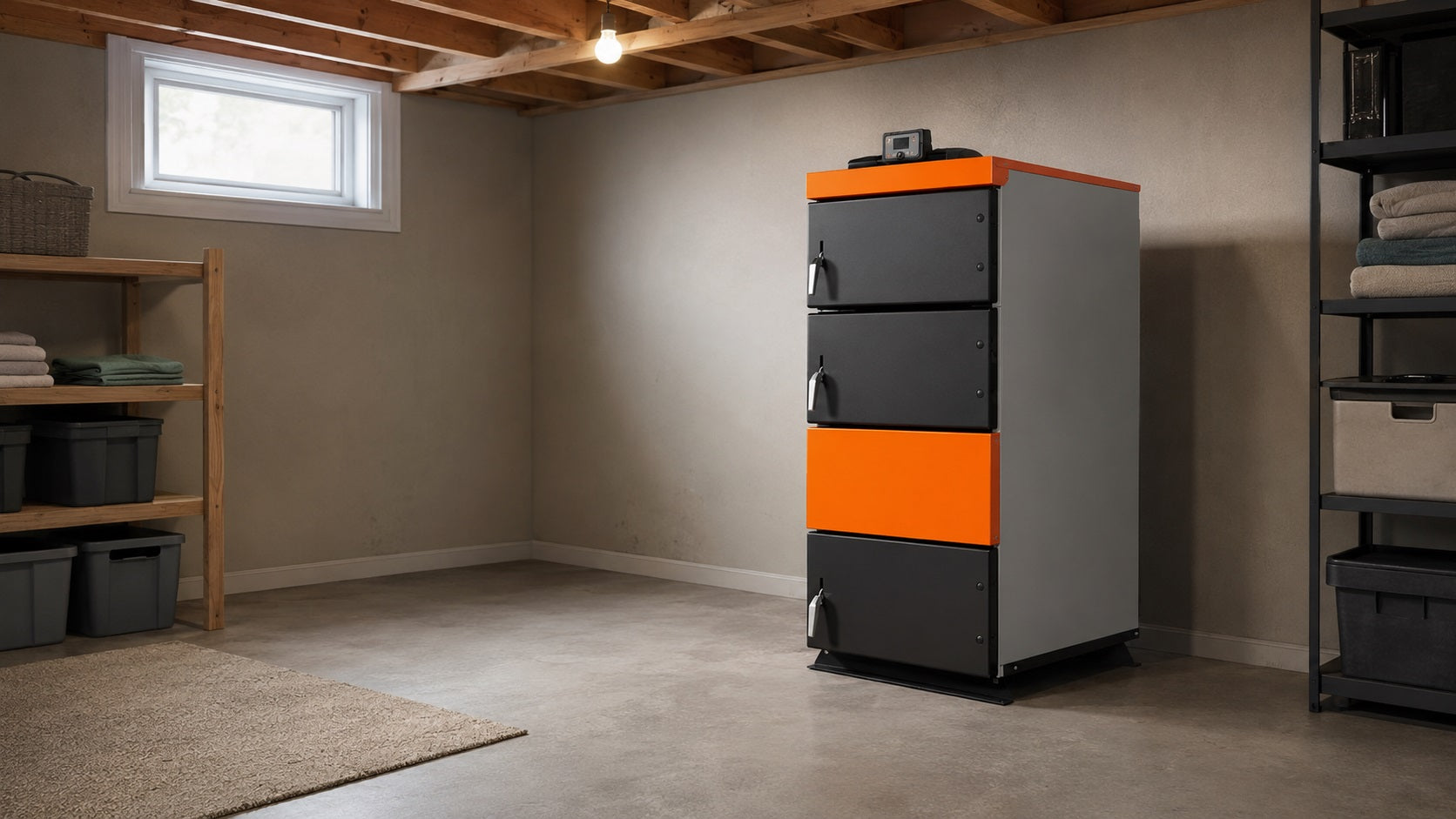

A wood boiler installation is more than setting the unit in place. Getting it right means planning return-water protection, connecting it correctly to your existing heating system, wiring the right controls, and confirming the chimney can support it — all before the first fire.
This guide walks through what installation actually involves, honestly, so you know what to plan for and what to leave to a professional.
What a wood boiler installation actually involves
A complete wood boiler installation touches four areas: plumbing (getting water safely to and from the boiler), hookup (connecting it to your home's heating distribution), wiring (thermostats and aquastats for control), and the chimney (draft and combustion air). Skipping planning on any one of these is the most common source of installation problems.
None of these steps happen in isolation — the boiler, the chimney, the controls, and the distribution system all have to be sized and planned together, which is why MBTEK recommends confirming the full system before ordering, not just the boiler.
Plumbing basics: boiler return protection
The single most important plumbing consideration for a wood boiler is return-water temperature. If the water coming back to the boiler is too cold, it causes flue-gas condensation inside the boiler, which leads to corrosion and a shorter service life. MBTEK's Boiler Station and Boiler Protection Valve both exist to solve this: they keep return water above roughly 130°F/55°C by blending in hotter supply water until the system reaches temperature.
Two ways to handle it:

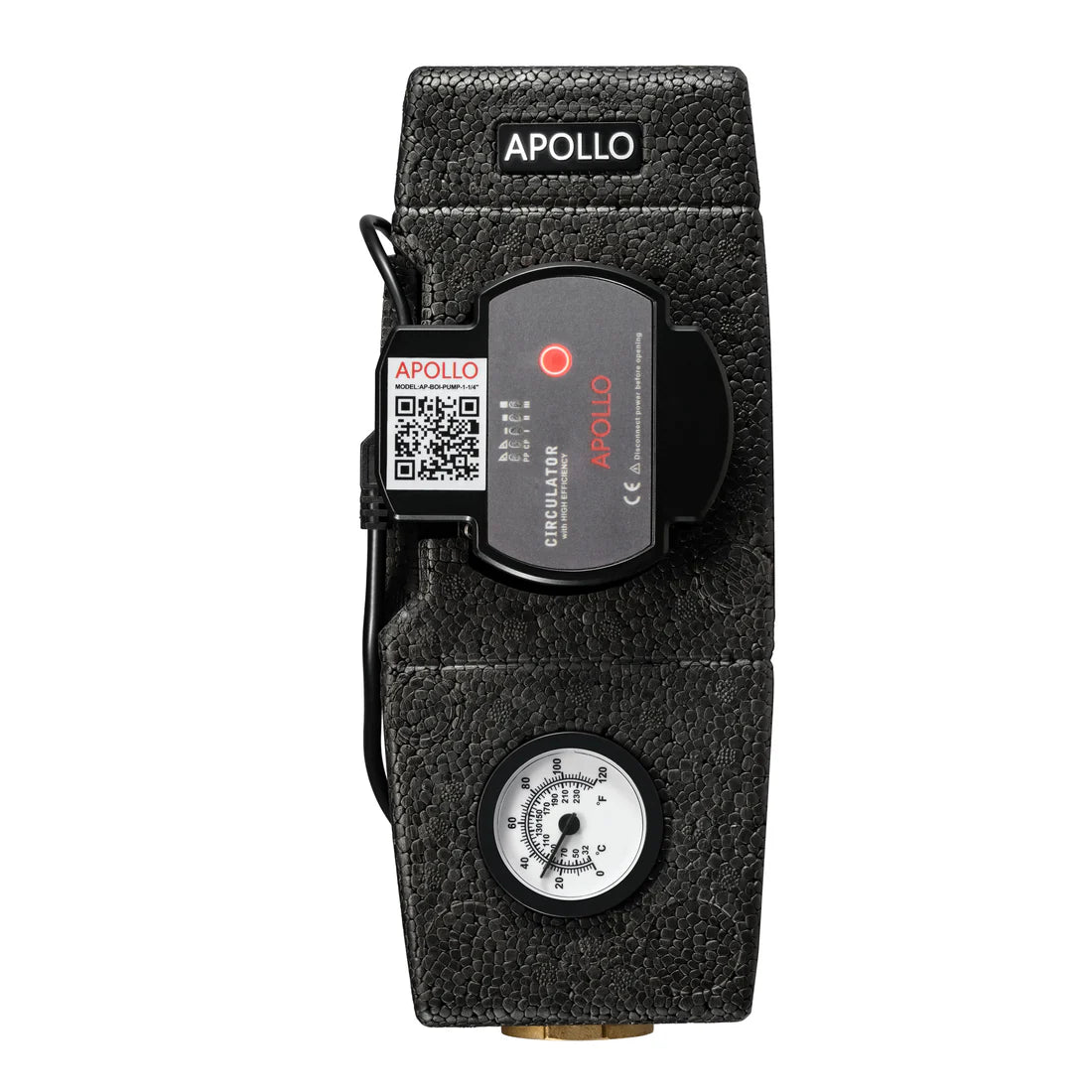

- Boiler Station: an all-in-one, pre-assembled unit combining the protection valve, a circulation pump, a thermometer, and insulation — built for 1-1/4" NPT connections, up to 50kW.
- Standalone Boiler Protection Valve: the right choice when you need a larger valve size — available from 1-1/4" up to 4" for bigger systems.
Beyond return protection, plumbing also covers connecting the boiler to a buffer tank, if your system uses one, and to the rest of the hydronic distribution — see the wood boiler buffer tank guide for that piece.
Connecting the boiler to your heating system
"Hooking up" a wood boiler means connecting it to your home's water-based heat distribution — radiant floors, radiators, or fan coils — not wiring it into a furnace. If your home currently uses a forced-air furnace, the two systems don't combine by splicing wires or gas lines together.
The realistic way to add wood-boiler heat to an existing forced-air system is a water-to-air heat exchanger coil installed in the ductwork, fed by the boiler's hot water loop. That's a distinct piece of equipment and its own planning step, not a default assumption for every project, and it's worth confirming with a specialist if your home is currently forced-air only.
For homes already on hydronic distribution, hookup is more direct: the boiler ties into the existing supply and return piping, typically through a buffer tank for stability.
Wiring: thermostats and aquastats
Two different controls handle a wood boiler system, and they do different jobs:
- Boiler Thermostat: controls room air temperature and gives a remote panel showing work modes, fuel level, and alarms for the boiler.
- Boiler Aquastat: controls water temperature only, not room air.
For a hydronic boiler system described generally, not specifically "control my room" or "control my water temperature," both are commonly used together: the aquastat manages the boiler's water loop, the thermostat manages room comfort and gives you the remote panel. This is a normal setup, not double-buying.
All of MBTEK's boiler control models share one hardware platform (12–24VAC/DC or 110–240VAC, 5A relay, touchscreen, Wi-Fi/BACnet/MQTT connectivity), so wiring follows the same low-voltage pattern regardless of which model you choose. For longer or heavier-duty sensor runs, Thermostat Accessories add the right sensor cable length.
Chimney and combustion air
Every wood boiler needs correctly sized draft and combustion air to burn cleanly and safely — this is its own full topic with its own calculation method. See the chimney draft guide for how to size a chimney for your boiler, and treat it as a required planning step, not an afterthought once the boiler is already installed.
Who should install it
Wiring a thermostat or aquastat and plumbing in a Boiler Station are approachable for an experienced DIYer comfortable with basic electrical and plumbing work. Chimney work, combustion air sizing, and code compliance are a different story — mistakes there affect safety, not just performance, and they're the areas most worth paying a professional to confirm.
If you're unsure where the line is for your project, that's exactly the kind of question to bring to an MBTEK specialist before you start, not after the chimney is already cut in.
MBTEK recommendation
Plan controls and return protection before installation day
The two decisions worth making before your boiler arrives are return protection (a Boiler Station for most systems, or a standalone Boiler Protection Valve for larger connections) and controls (a Boiler Thermostat and Boiler Aquastat, used together for most whole-home hydronic boiler systems).
- Return protection: Compare the Boiler Station or the standalone Boiler Protection Valve.
- Controls: Pair the Boiler Thermostat with the Boiler Aquastat.
- Chimney planning: Confirm draft and clearance with the chimney draft guide.
- Full system confirmation: Use the System Builder or contact MBTEK before installation day.
Installation checklist
Before installation day, confirm these points:
- Do you have return-water protection planned — Boiler Station or Protection Valve?
- Is your chimney sized and drafted correctly for this boiler?
- Will you use a Boiler Thermostat, Boiler Aquastat, or both?
- Is your home on hydronic distribution, or will you need a water-to-air coil for forced-air ductwork?
- Do you have a buffer tank planned, if your system needs one?
- Who is doing the installation — you, or a professional installer?
Plan the four pieces together
Plumbing, hookup, wiring, and chimney planning aren't separate projects — they're four pieces of the same installation, and skipping planning on any one of them is where problems start.
Confirm return protection and controls before the boiler arrives, treat chimney work as a required step, and know where your own DIY comfort ends and a professional's begins. See how a wood boiler works, what size you need, or what it costs for the rest of the planning picture.
