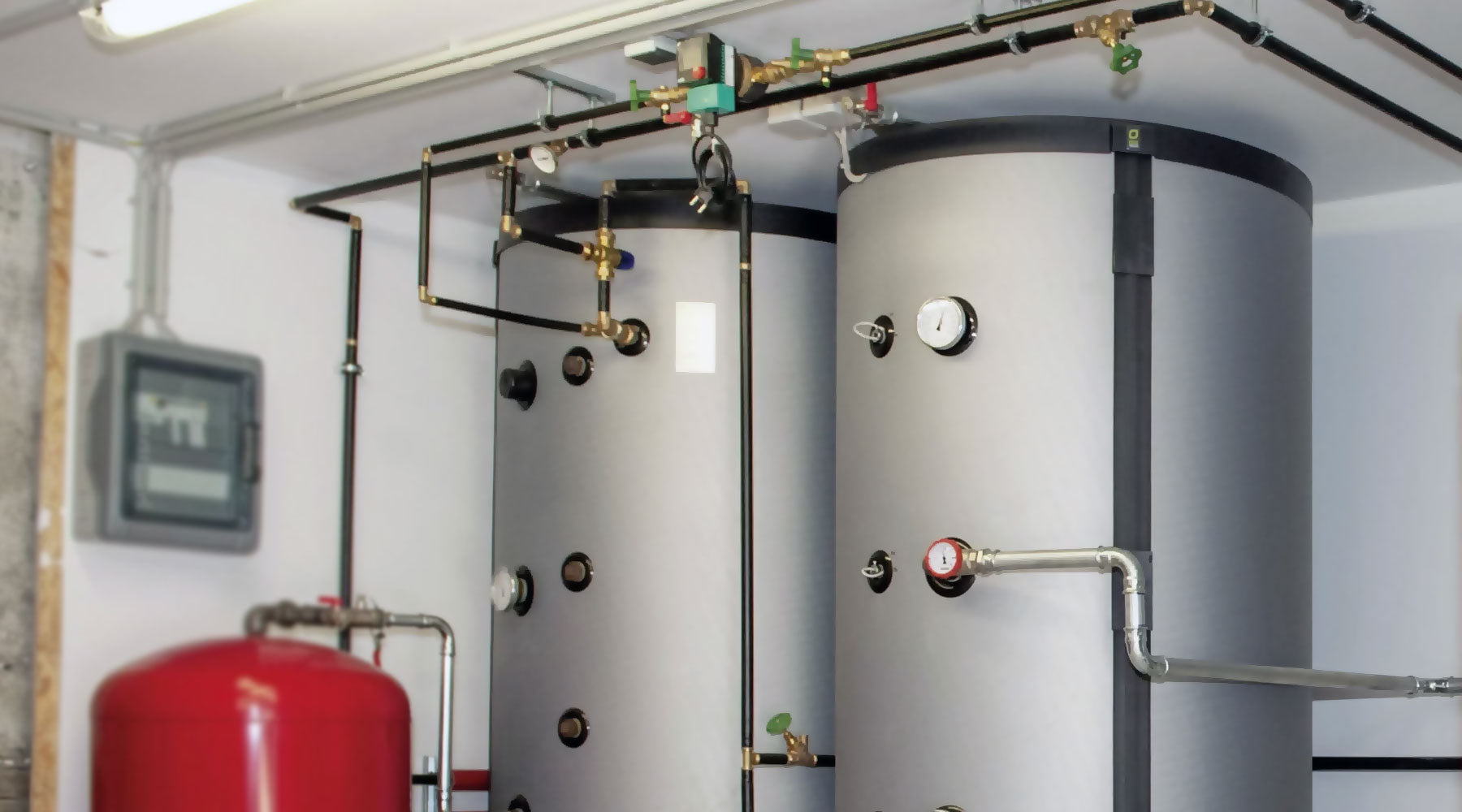

Wood Boiler Buffer Tank: Why Biomass Boilers Need One

What is a buffer tank for a boiler?

A boiler buffer tank, also called a buffer vessel or thermal storage tank, is a water tank installed between the boiler and the heating distribution system.

The boiler heats water. Instead of sending all of that heat directly to the building at once, the system can store some of the hot water inside the buffer tank. Later, when the heating zones, radiant floors, radiators, fan coils, or air handlers need heat, the stored hot water can be used.

In simple terms, the buffer tank acts like a heat battery. The biomass boiler charges the tank with heat, and the building draws heat from the tank when needed.

Why biomass boilers need a buffer tank

Biomass boilers are different from simple electric or gas heating appliances. A wood boiler, pellet boiler, or wood chip boiler performs best when it can run through a stable combustion cycle. It should not be forced to start and stop too frequently.

Without a buffer tank, the boiler may produce more heat than the building can immediately use. This can cause overheating, short cycling, inefficient combustion, and unnecessary stress on the system.

A properly sized buffer tank solves this by absorbing extra heat. Instead of wasting energy or forcing the boiler to shut down too early, the tank stores the heat and releases it gradually.

This is especially important for:

• Wood boilers that produce strong heat output during a burn cycle.
• Biomass boilers connected to changing heat loads.
• Pellet boilers that benefit from fewer start/stop cycles.
• Wood chip boilers used in larger residential, commercial, or industrial buildings.
• Hydronic systems with multiple zones, radiant floors, radiators, or fan coils.

Buffer tank working principle

The working principle of a buffer tank is simple: the tank stores thermal energy in water.

When the biomass boiler is running, it heats water and sends that hot water into the buffer tank. The hottest water usually stays near the top of the tank, while cooler water remains lower in the tank. This natural layering is called thermal stratification.

When the building needs heat, the heating system draws hot water from the tank instead of demanding immediate heat directly from the boiler. As the building uses heat, cooler return water comes back to the tank and the boiler reheats it during the next cycle.

This creates a smoother system:

• The boiler runs in longer cycles.
• The tank stores excess heat.
• The building receives heat more steadily.
• The boiler does not need to react to every small thermostat call.

This is why buffer tanks are so useful in wood boiler and biomass boiler systems. They separate boiler operation from building heat demand.

What is the purpose of a buffer vessel?

The purpose of a buffer vessel is to stabilize the heating system. It gives the boiler a place to send heat when the building does not need all of it immediately.

In a biomass boiler system, the buffer vessel helps:

• Store surplus heat from the boiler.
• Reduce short cycling and unnecessary boiler starts.
• Improve combustion efficiency by allowing longer burn cycles.
• Protect boiler components from repeated temperature stress.
• Improve comfort by delivering heat more evenly.
• Support multiple heating zones with different demand patterns.
• Improve system flexibility when connected to radiant floors, radiators, fan coils, or domestic hot water equipment.

Without a buffer tank, the boiler and building demand are directly tied together. With a buffer tank, the boiler can operate more efficiently while the building receives heat only when needed.

How does a biomass boiler work with a buffer tank?

A biomass boiler burns renewable fuel such as wood logs, wood pellets, wood chips, or other suitable biomass materials. The heat from combustion is transferred to water inside the boiler. That hot water is then sent into the heating system.

When a buffer tank is included, the hot water usually flows into the tank before being distributed to the building. The tank stores the heat and allows the heating zones to draw from that stored energy.

A typical biomass boiler and buffer tank setup may include:

• Biomass boiler to produce heat.
• Buffer tank to store hot water.
• Circulator pumps to move water through the system.
• Mixing valves to control supply temperature.
• Expansion tank to handle water expansion.
• Controls and sensors to manage boiler and tank temperatures.
• Heat emitters such as radiators, radiant floors, fan coils, or air handlers.

This setup makes the system more forgiving. The boiler can produce heat at its preferred operating rhythm, while the building can use heat according to real demand.

Why short cycling is bad for a biomass boiler

Short cycling happens when a boiler starts and stops too often. This is bad for most heating equipment, but it is especially problematic with biomass systems.

A wood or biomass boiler needs time to reach efficient combustion. If it shuts down too quickly, the system may burn fuel less cleanly, waste energy, and create more maintenance problems.

Frequent cycling can lead to:

• Lower fuel efficiency
• More smoke or incomplete combustion
• Higher emissions
• More soot, ash, or creosote concerns
• More wear on ignition and control components
• Less stable indoor comfort
• Higher maintenance requirements

A buffer tank helps prevent this by giving the boiler enough water volume to heat. Instead of shutting down after a small heating call, the boiler can run longer and store the extra heat for later use.

Buffer tank benefits for wood boilers and biomass boilers

A properly sized buffer tank can improve almost every part of a biomass heating system. The benefits are not only about efficiency. They also affect comfort, reliability, equipment life, and system control.

1. Better heat storage

Wood and biomass boilers can produce a large amount of heat during a burn cycle. The buffer tank captures that heat instead of letting it go unused. This is especially important when the building heat demand is lower than the boiler output.

2. More stable indoor comfort

With stored heat available, the system can deliver warmth more gradually. This helps reduce temperature swings and makes the home or building feel more consistent.

3. Improved fuel efficiency

Longer burn cycles are usually better than repeated short cycles. A buffer tank allows the boiler to operate closer to its intended performance range, which can reduce wasted fuel.

4. Longer boiler lifespan

Fewer starts and stops mean less stress on the boiler. Over time, this can help reduce wear on components and support a longer service life.

5. Better system flexibility

A buffer tank makes it easier to serve multiple heating zones. One zone may call for heat while another does not. The tank helps balance those changing demands.

6. Easier integration with hydronic emitters

Biomass systems may serve radiant floors, radiators, fan coils, unit heaters, or domestic hot water equipment. The buffer tank helps manage these different loads more smoothly.

Wood boiler buffer tank vs biomass boiler buffer tank

The terms are often used in similar ways, but there is a small difference in how people search for them.

A wood boiler buffer tank usually refers to a thermal storage tank used with a log wood boiler or wood-burning hydronic boiler. This type of boiler can produce strong heat output during each burn cycle, so thermal storage is often very important.

A biomass boiler buffer tank can refer to a tank used with different biomass fuels, including wood logs, pellets, wood chips, or agricultural biomass. These systems may be residential, commercial, or industrial.

In both cases, the principle is the same: the tank stores excess heat and releases it when needed.

Do pellet boilers need a buffer tank?

Pellet boilers are often more automated than traditional wood boilers. They can modulate output, feed fuel automatically, and respond more smoothly to changing heat demand. However, a buffer tank can still be useful depending on the system design.

A pellet boiler may benefit from a buffer tank when:

• The boiler output is higher than the building's minimum heat demand.
• The system has many small zones.
• The building has changing heat loads throughout the day.
• The boiler is connected to domestic hot water production.
• The installer wants to reduce cycling and improve system stability.

The right answer depends on the boiler model, building heat load, zoning strategy, and control setup. A properly designed system is more important than applying a one-size-fits-all rule.

Do industrial biomass boilers need buffer tanks?

Industrial biomass boilers often serve larger and more variable heating loads. These systems may provide heat for commercial buildings, workshops, warehouses, greenhouses, district heating, process heating, or other high-demand applications.

In these larger systems, a buffer tank can be very useful because heat demand may change quickly. A buffer tank helps absorb excess boiler output and provides stored energy when demand increases.

For industrial biomass applications, buffer tank planning should consider:

• Peak heat demand
• Minimum heat demand
• Boiler output range
• Fuel type
• Required storage duration
• Number of heating zones or loads
• Available mechanical room space
• Controls and safety requirements

Larger biomass systems should always be planned by qualified heating professionals. The buffer tank is not just a tank; it is part of the control strategy for the entire heating plant.

How to size a buffer tank for a biomass boiler

Buffer tank sizing depends on the boiler output, fuel type, building heat load, desired burn cycle length, and heating distribution. There is no single tank size that works for every biomass boiler.

A buffer tank that is too small may not reduce cycling enough. A tank that is too large may take up too much space, cost more than necessary, or create control issues if not designed properly.

Sizing should consider:

• Boiler capacity
• Minimum and maximum heat demand
• Fuel type: logs, pellets, wood chips, or hybrid biomass
• Desired boiler runtime
• Heating zones and distribution method
• Domestic hot water demand
• Available installation space
• Target supply and return temperatures

For best results, buffer tank sizing should be calculated as part of the full hydronic design. Guessing the tank size can lead to poor performance.

Can a biomass boiler work without a buffer tank?

Some biomass systems can technically operate without a buffer tank, but that does not mean it is always the best design. The need for a buffer tank depends on the boiler type, controls, load profile, and heating distribution.

A buffer tank becomes more important when the boiler output is not well matched to the building's heat demand. It is also important when the system has small heating zones that call for heat in short bursts.

A system without enough water volume may experience:

• Short boiler cycles
• Temperature swings
• Less efficient combustion
• More wear on the boiler
• Less stable heat delivery
• More difficult control setup

In many wood boiler and biomass boiler systems, a buffer tank is not just an optional accessory. It is a key part of making the system work properly.

Buffer tank installation considerations

The buffer tank should be installed as part of a complete hydronic system. Location, piping, insulation, controls, and service access all matter.

Important installation considerations include:

• Tank location: the tank should be placed where piping runs are practical and service access is available.
• Insulation: the tank and piping should be insulated to reduce standby heat loss.
• Pipe sizing: piping must support the required flow rate between the boiler, tank, and heating system.
• Expansion control: the system needs proper expansion capacity because water expands as it heats.
• Air removal: air separators or bleeders help prevent circulation and performance problems.
• Temperature sensors: sensors should be placed correctly so the controls can read tank temperature accurately.
• Safety devices: pressure relief, temperature controls, and other safety components must follow local code and manufacturer instructions.

A buffer tank should not be treated as a simple storage barrel. It must be integrated correctly with the boiler and the heating distribution system.

Common buffer tank mistakes

A buffer tank improves system performance only when it is sized and installed correctly. Poor design can reduce the benefit of the tank.

Common mistakes include:

• Using a tank that is too small to meaningfully reduce boiler cycling.
• Oversizing the tank without considering space, cost, and recovery time.
• Poor pipe layout that reduces stratification or creates flow problems.
• Missing or poorly placed temperature sensors.
• Insufficient insulation on the tank or nearby piping.
• Wrong pump sizing for the boiler and heating zones.
• No clear control strategy for charging and discharging the tank.
• Ignoring domestic hot water demand when the system also supports hot water production.

These issues can usually be avoided with proper planning before equipment is purchased.

When a buffer tank matters most

A buffer tank is most important when the boiler produces more heat than the building can immediately use. This is common with wood boilers and many biomass systems.

A buffer tank is especially useful when:

• The boiler output is large compared with the building load.
• The building has several small heating zones.
• The system uses radiant floor heating with lower water temperatures.
• The boiler is connected to domestic hot water production.
• The building heat demand changes a lot during the day.
• The goal is to reduce cycling and improve boiler lifespan.

If your biomass boiler system includes any of these conditions, the buffer tank should be planned carefully.

Final recommendation: plan thermal storage early

A buffer tank is one of the most valuable components in a wood boiler or biomass boiler system. It stores excess heat, reduces boiler cycling, improves comfort, increases fuel efficiency, and helps protect the boiler from unnecessary wear.

For wood boilers, pellet boilers, wood chip boilers, and industrial biomass boiler systems, the buffer tank should be planned as part of the complete hydronic design. The right tank size and layout can make the difference between a system that constantly struggles and a system that runs smoothly for years.

If you are planning a biomass heating project, start with the full system: boiler, buffer tank, distribution, controls, domestic hot water, and installation layout.
