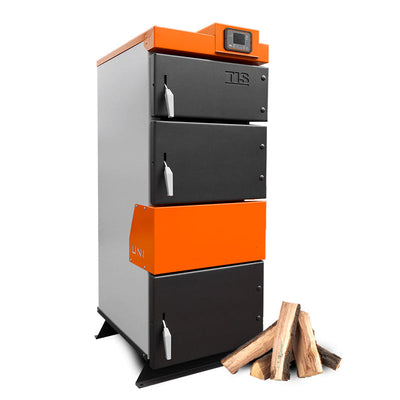

UNI 60 wood boiler, 200K BTU

$4,898.00

People watching this item right now
Out of stock

EFFICIENT MODULATING WOOD BOILER WITH GASIFICATION MODE

UNI burns manual feed biomass such as wood, coal, and woodchips.
UNI is very efficient with gasification mode and chimney sensor.

Heat: 5000 ft²
Controller: 120V Fahrenheit
Weight: 1224 lb
Width: 30'', Depth: 36'', Height: 65''
Firebox size: 58 gal.us
Logs length: 26"
Made in Europe
Commercial Grade for Commercial Use.

Features

Specs

Reviews / Q&A

Manuals
menu_boilers

UNI Wood Boilers Series

Efficient Modulating Boiler with Gasification Mode

UNI is a cutting-edge 5-Star* long-burning boiler that uses wood, peat, coal, and wood waste.
Purchase Now

UNI Wood Boiler
Main Features

  • Fire Box

    Includes a large loading chamber
  • Smart Controller

    Multiple customizable options
  • Automated Fan

    Several speed options
  • Burning time

    Up to 24 Hours
  • Heat exchanger

    Efficient tubular design
  • Boiler Steel Frame

    High-strength grade, 5mm thick
UNI-main-features
uni_3

Made of high-strength boiler steel

Thickness nearly 1/4"

UNI boilers are constructed with ASTM A106, the highest quality certified boiler steel with powder coated boiler casing. This unit is distinguished by its enlarged loading chamber featuring durable cast-iron grates. High-quality multi-layer coating, non-combustible 2" insulation, and thermal protection systems ensure long-term and worry-free operation.
uni_2

Simple to use yet

Powerful controller

Our boiler is outfitted with the most recent controller, allowing you to automatically control the operation of the fan with smooth modulation, the central heating pump (CH), and the hot water pump (DHW). You will also be able to program the combustion process based on the fuel type and operating conditions.
uni_1200x628-no2

On the coldest days

A heat source you can count on

This boilers' clean, full combustion extracts the greatest amount of heat with a guaranteed efficiency of 86 percent or more using micro air metering in the lower and higher fire chambers. This multi-stage air supply system to the primary and secondary combustion chambers ensures that the emitted gases are completely burned.

Burning time on one load

Up to 24 hours

The spacious fuel loading chamber and variable heat output from 30 to 100 percent are features you will only find in UNI. It is also highly efficient with an exhaust gas maximum temperature of less than 260°F / 300°F. When combined with a buffer tank, you can access the gasification mode, which allows you to extract the most energy from your solid fuel.
IMG_4632
uni_all_a8d11f55-c505-4e6d-8137-513c9cec2e66

Included with the boiler

  • Boiler assembly
  • TIS TRONIC controller unit
  • Multi-speed fan
  • Set of grates
  • Fire poker
  • Cleaning brush
  • Ash pan
  • Installation guide
  • Controller guide
  • Looking for an installer?

    Don't keep searching and check our current installer map.
    Find the nearest and give them a call!
  • Are you an installer?

    Reach us if you want to be added to our list!
    Just write us an email to:
    Info@mbtek.com
    And let us know about you!

Specifications

  • Swipe right to browse the table

BOILERUNITUNI 15UNI 40UNI 60UNI 95UNI 150UNI 300UNI 500
CAPACITYKbtu27 to 6851 to 13785 to 205154 to 338185 - 512320 - 1000545 - 1700
HEAT AREAft²250040005000650090001500022000
WATER VOL.gal21304048112315515
CONNECTIONinch1 ½1 ½22233
CHIMNEYinch688881212
FIREBOX SIZEgal25445881159278382
LOG LENGTHinch20242630486688
BOILER WIDTHinch24283039 ½39 ½39 ½39 ½
BOILER DEPTHinch253436506381105
BOILER HEIGHTinch55556569698484
BOILER WEIGHTlb71699212241490200060507800

Customer Reviews

Based on 3 reviews
33%
(1)
33%
(1)
33%
(1)
0%
(0)
0%
(0)
C
Chuck Martin

I have been using this boiler for for 4 seasons does great job on my heating I have a hybrid radiant system with a little over 5000 sq ft of concrete floors being heated with a 1500 gal buffer tank buried other than just burning alot of wood about 15 cord a season I am very pleased just wish fire box was a little bigger finding short 18" max firewood is difficult around here cleaning could be made with some design changes

C
Cathie Pelletier (Shawinigan, CA)
fournaise ok

juste la communication a retournée les appel

J
Jean Lamadeleine (Casselman, CA)
very expensive to install

After a year of trying to find someone to install the system, I managed to get it going. So far it dishes out massive amount of heat. The house is evenly warm which is a welcome change. When buying a unit it should come with an estimated installation cost. I am not sur that the investment is worthwile. In all, whit the uni 60, this system cost me 40 000$. The chimney was 4500$ for 8", installation was 27 000$ including the 2" copper fittings and tubing, the underground insulated pipe at 33$ a foot, a holding tank and so on.. The system seems to be good, but I think you could get something for less. On top of that you will need to buy the wood at 100$ a cord. I dont know what the life span is on the unit but it will take 10 to 15 years to get even.

Speak with a UNI owner in your Region

Use our interactive map to contact a Mbtek boiler owner in your area and ask about their boiler.

Customer Video Reviews

Customer Pictures

Frequently Asked Questions

General

Payment and Shipping

Warranty

Where can I find your dealers?

We don't have a dealership. Please speak directly with one of our sales agents via phone, chat, email or text message for more information.

Who will install my boiler?

Mbtek does not offer physical installation. You will need a hydronic plumber to connect the boiler to the water system and a chimney installer. Please contact us for any assistance.

Where can I find parts?

At this link. We have spare parts ready to ship the following business day.

How long does a fire last?

This will depend on the type of wood you are using. However, at the lowest settings, a fire can last up to 24 hours. We recommend using gasification mode, which ensures excellent combustion with a quick yet strong fire. We also recommend storing this intense heat in a buffer tank. This will allow you to diffuse the heat slowly as needed.

Do I need to purchase anything else with my wood boiler?

When should I receive my unit?

When the unit is in stock, we will book the shipment for the following business day. The availability (or ETA) of a specific unit is mentioned on the top of each product page. Depending on your location, delivery can take 3 to 12 days.

Do I have to pay customs fees if my unit is coming from another country?

No. We take responsibility for these charges.

Are your products shipped from the U.S. or Canada?

This varies for each product. We have warehouses in Pennsylvania (U.S.), Alberta (CAN), and Quebec (CAN).

What is the product warranty?

We offer a 10-year warranty on welds.
